Box 00292. Digital files for manufacturing products on a laser machine (CO2 or diode laser)

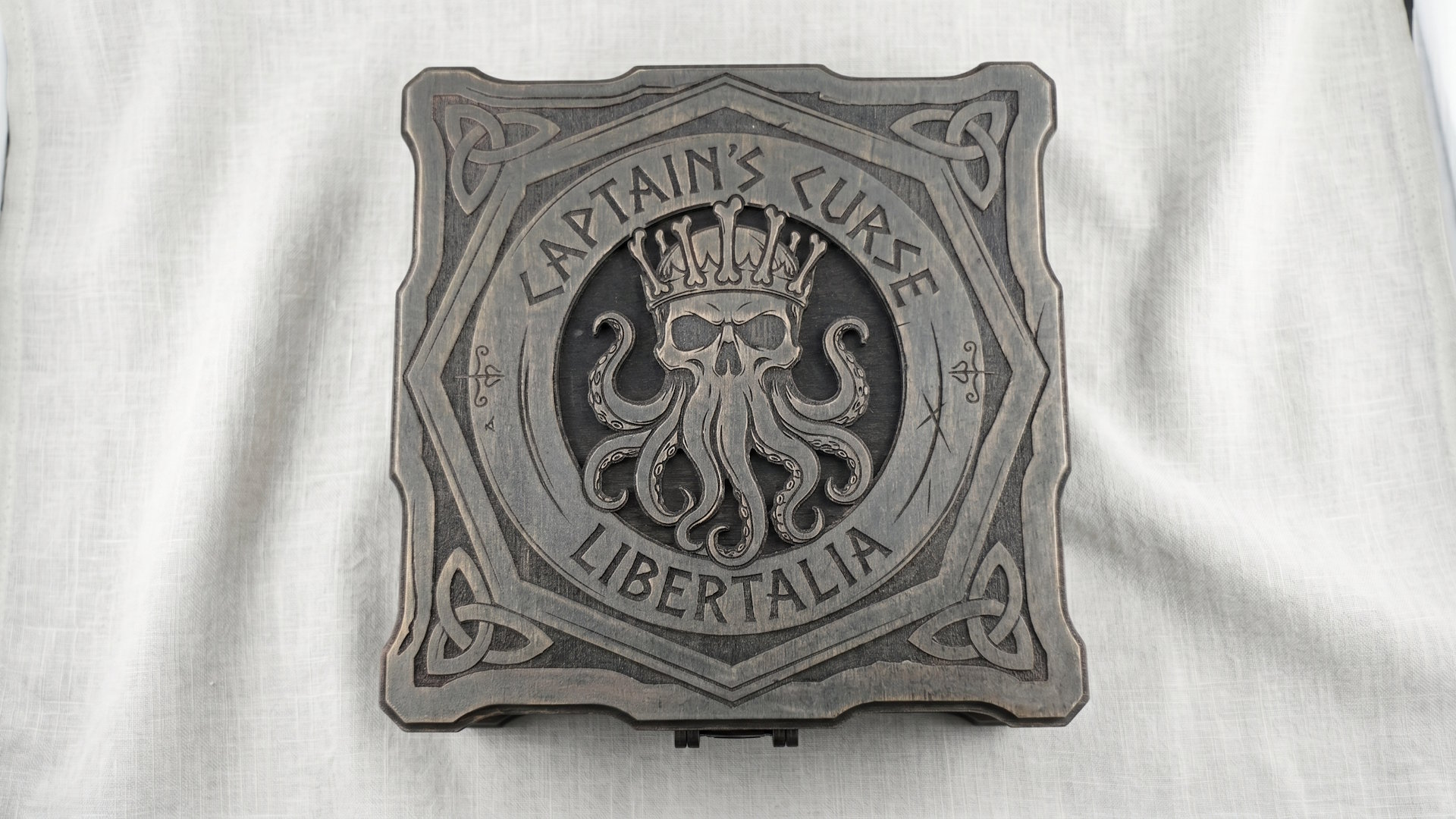

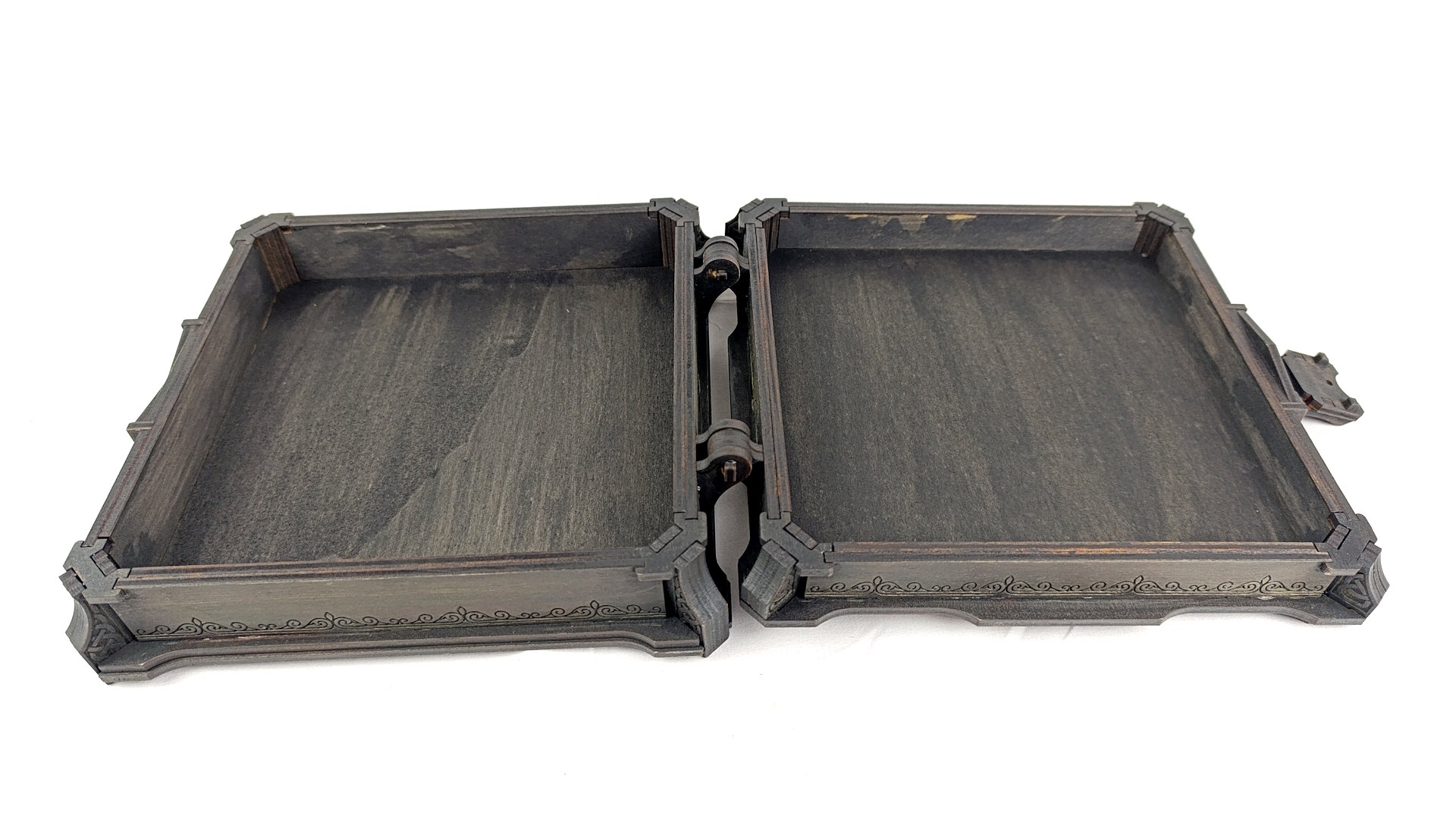

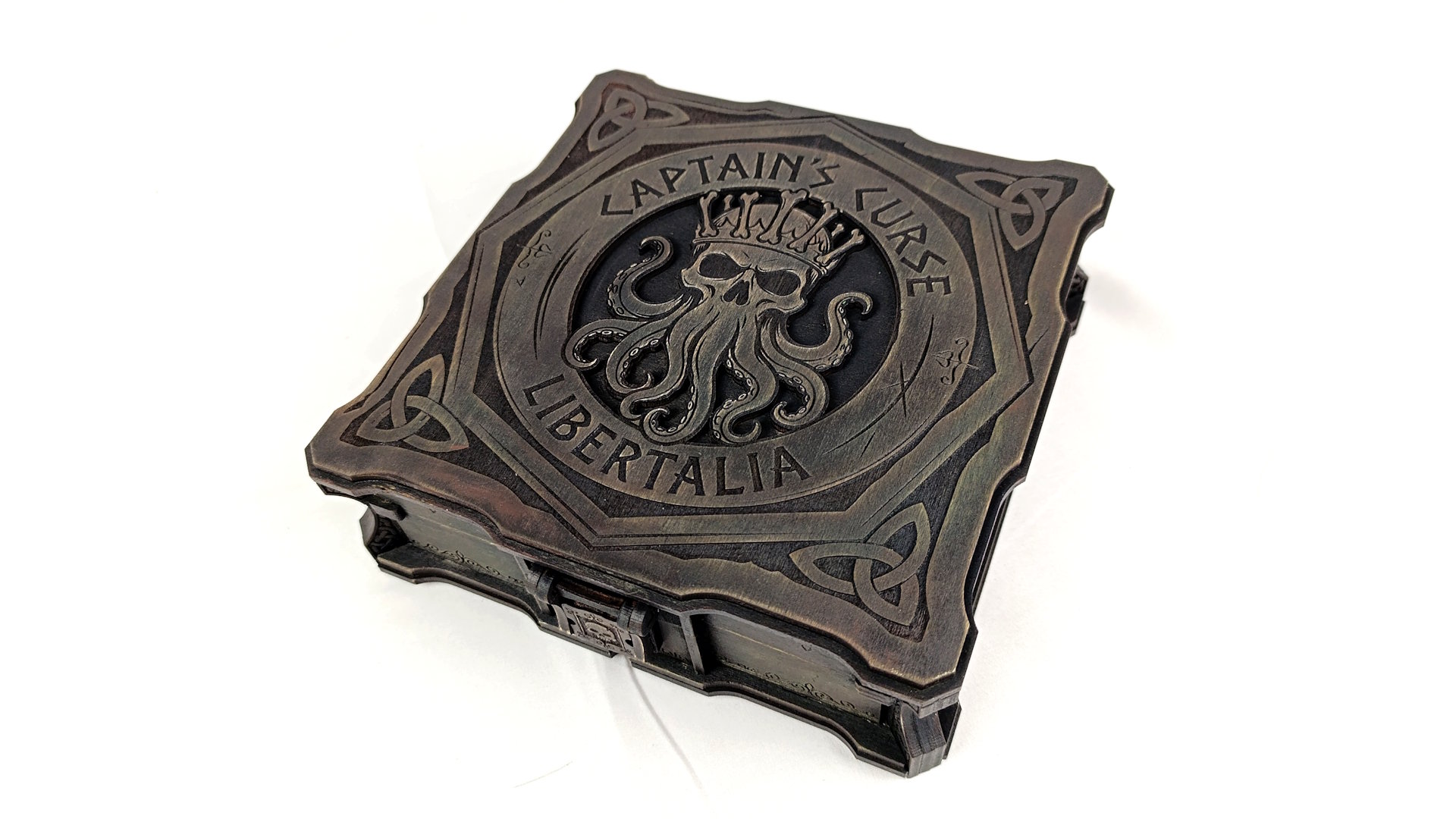

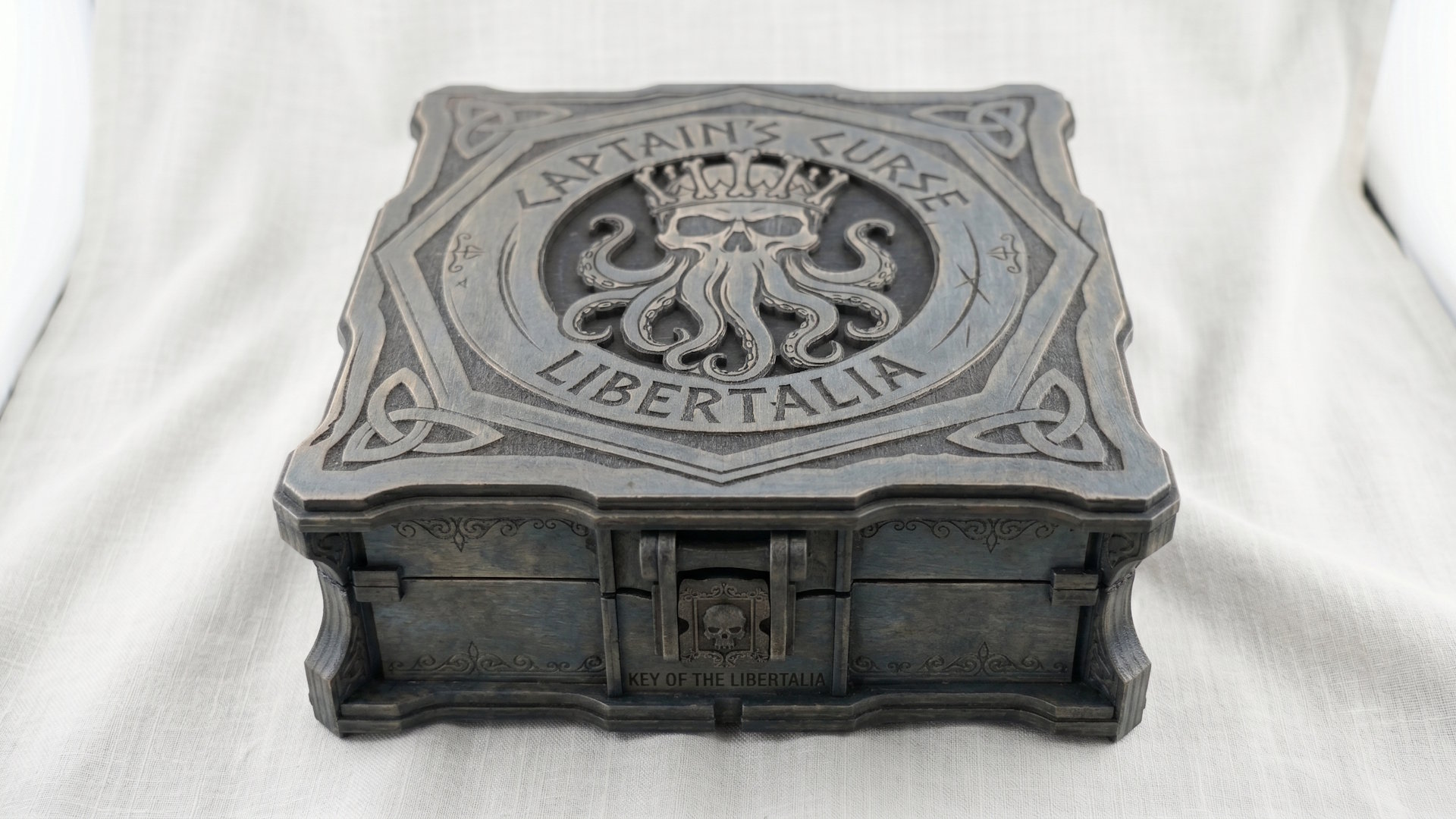

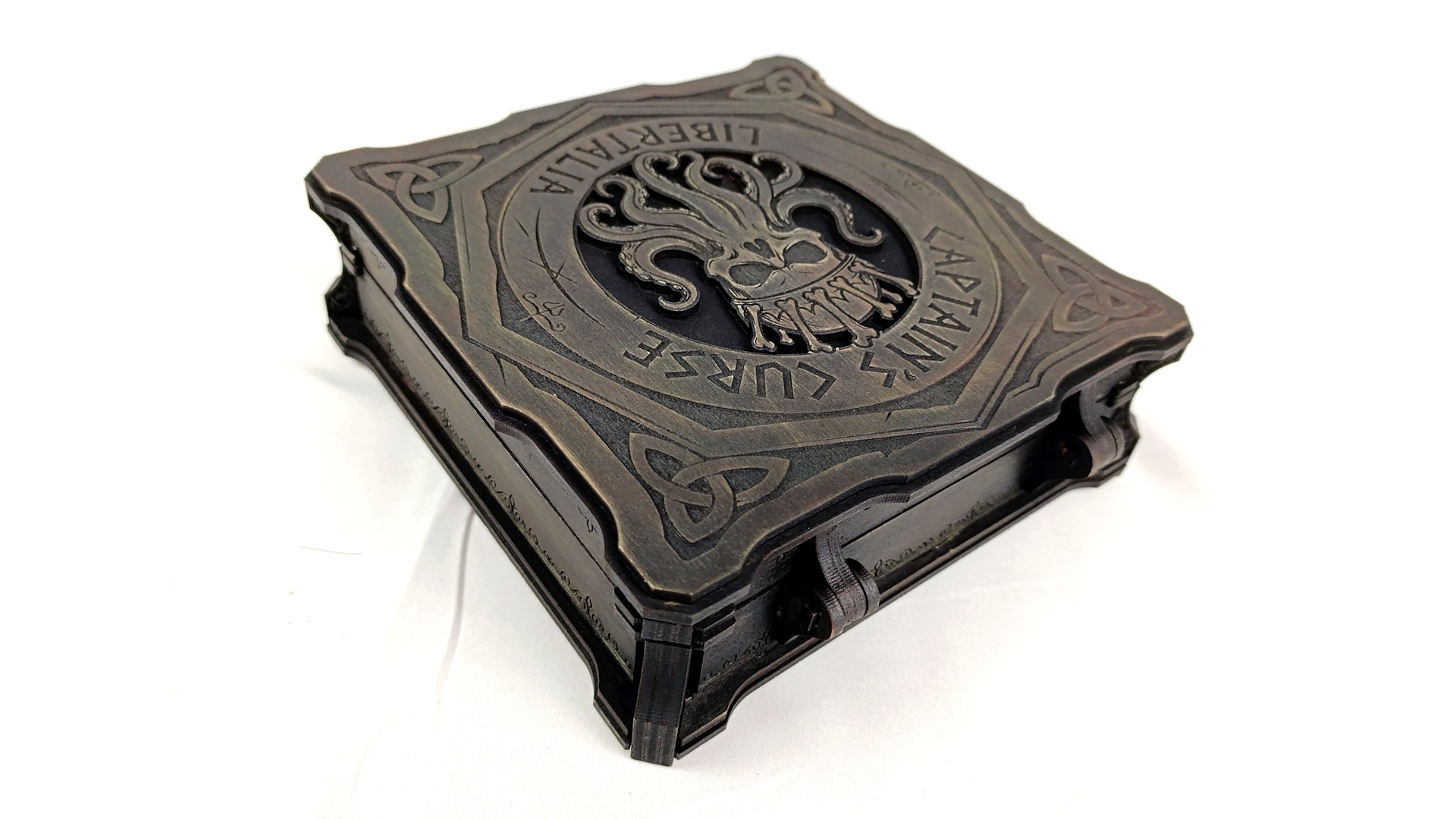

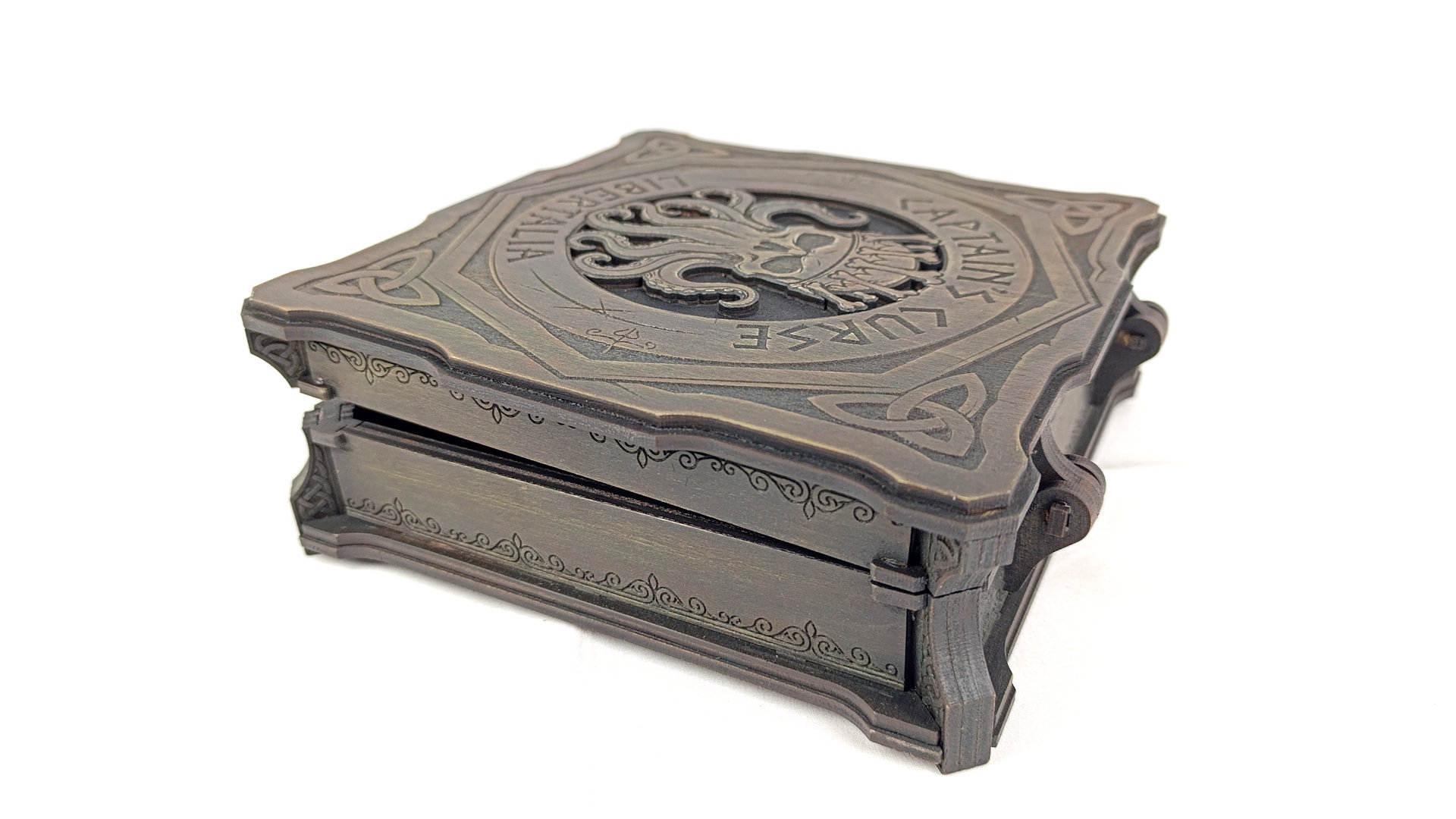

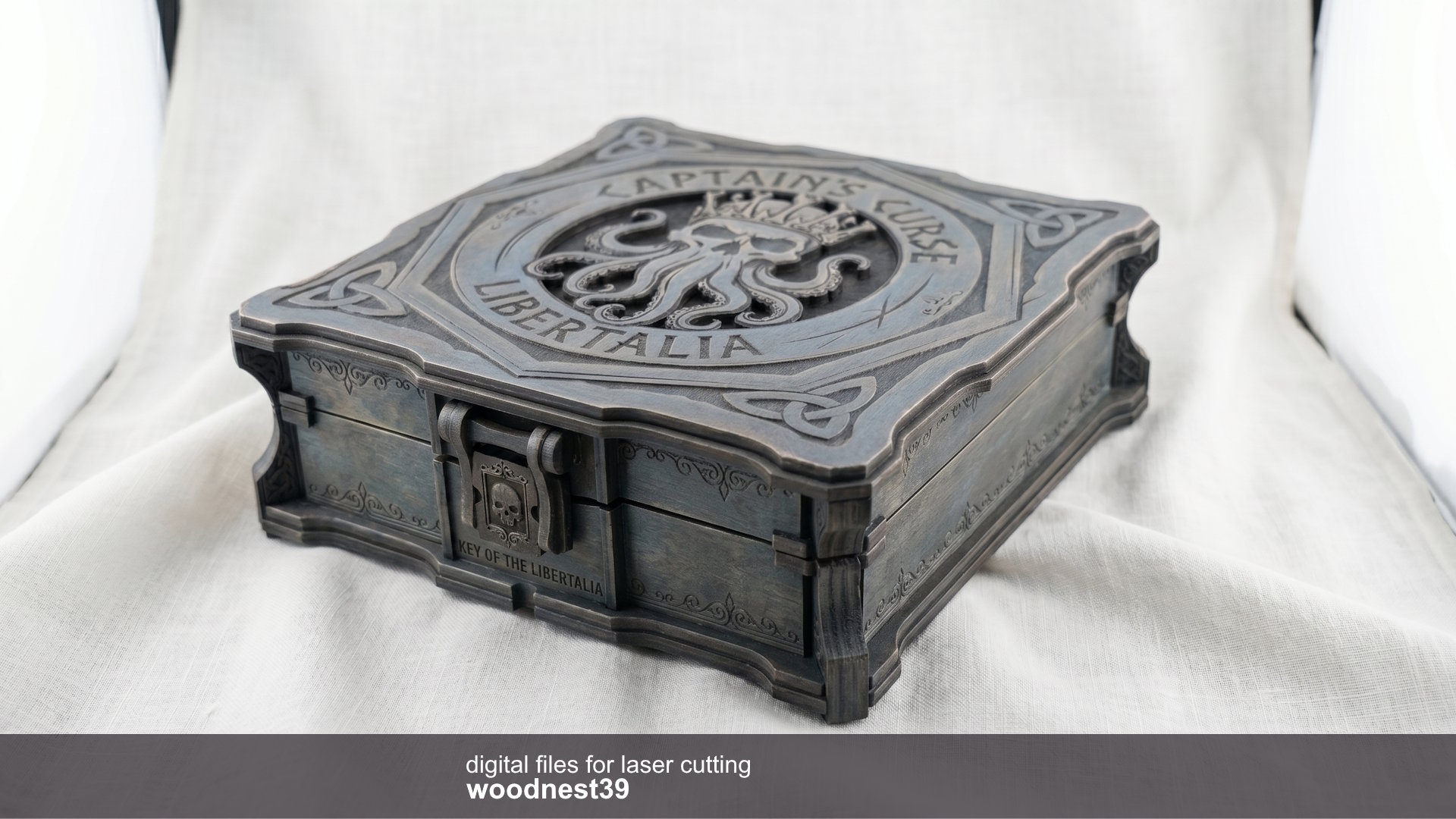

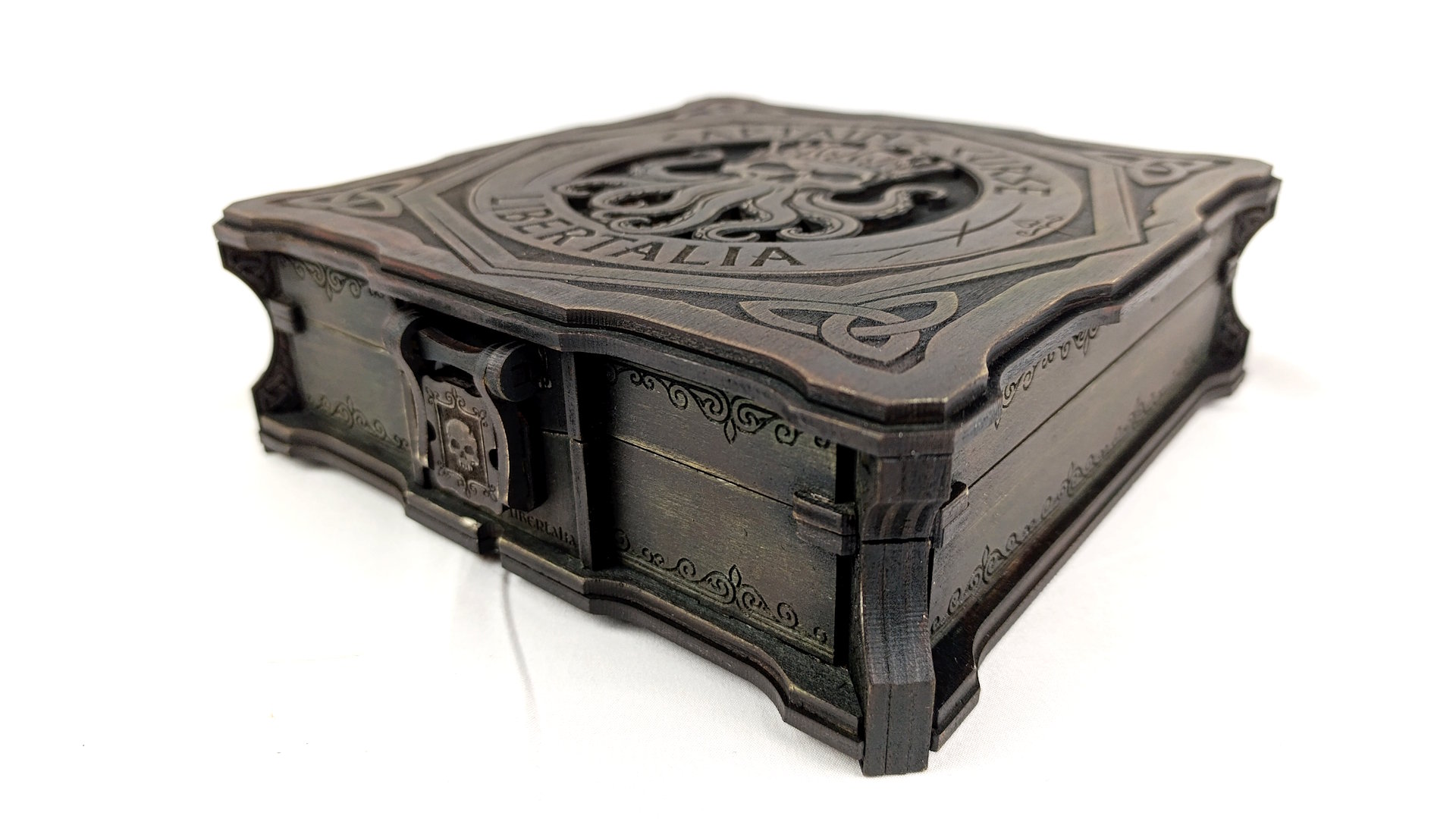

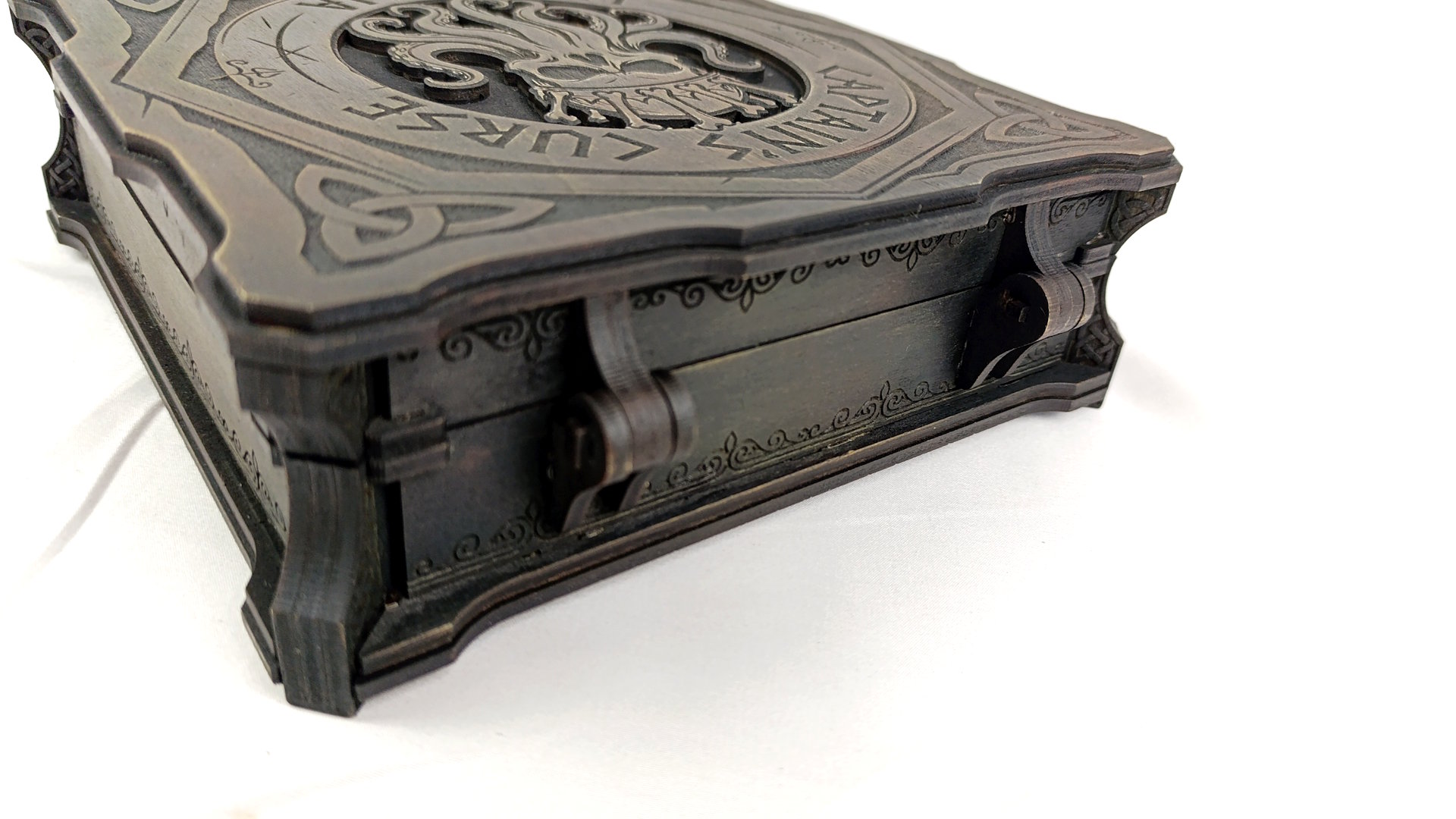

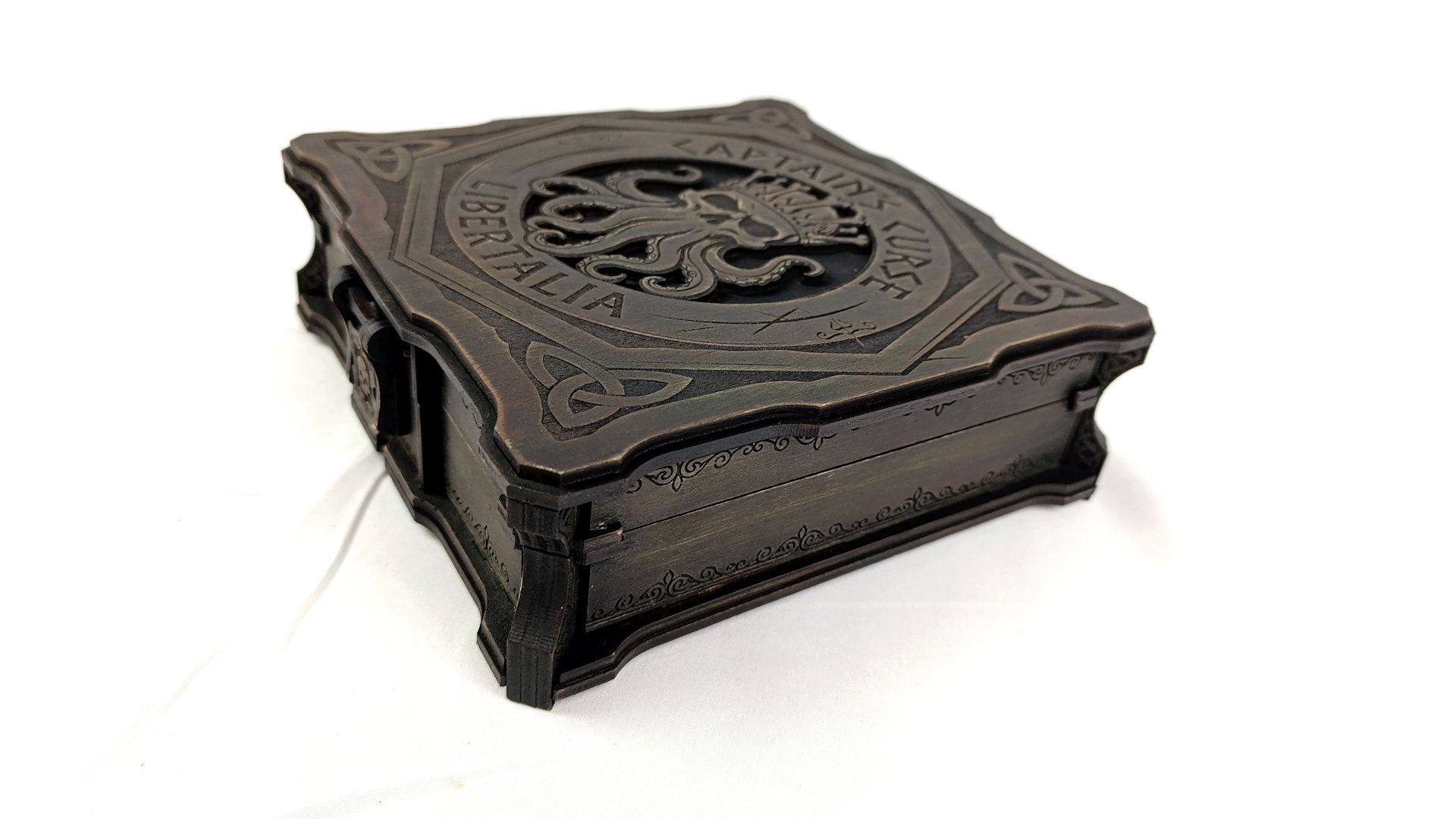

A small pirate-themed box. I tried to remove the frame inside the box to save materials. Assembly is very simple. There are no protrusions inside, but there are beveled corners. The lock can easily be replaced with a metal one. It's a sturdy, beautiful box.
length: 180mm / 7.08" (internal)
width: 180mm / 7.08" (internal)
height: 30mm (base) + 20mm (lid) / 1.18" (base) + 0.78" (lid) (internal)

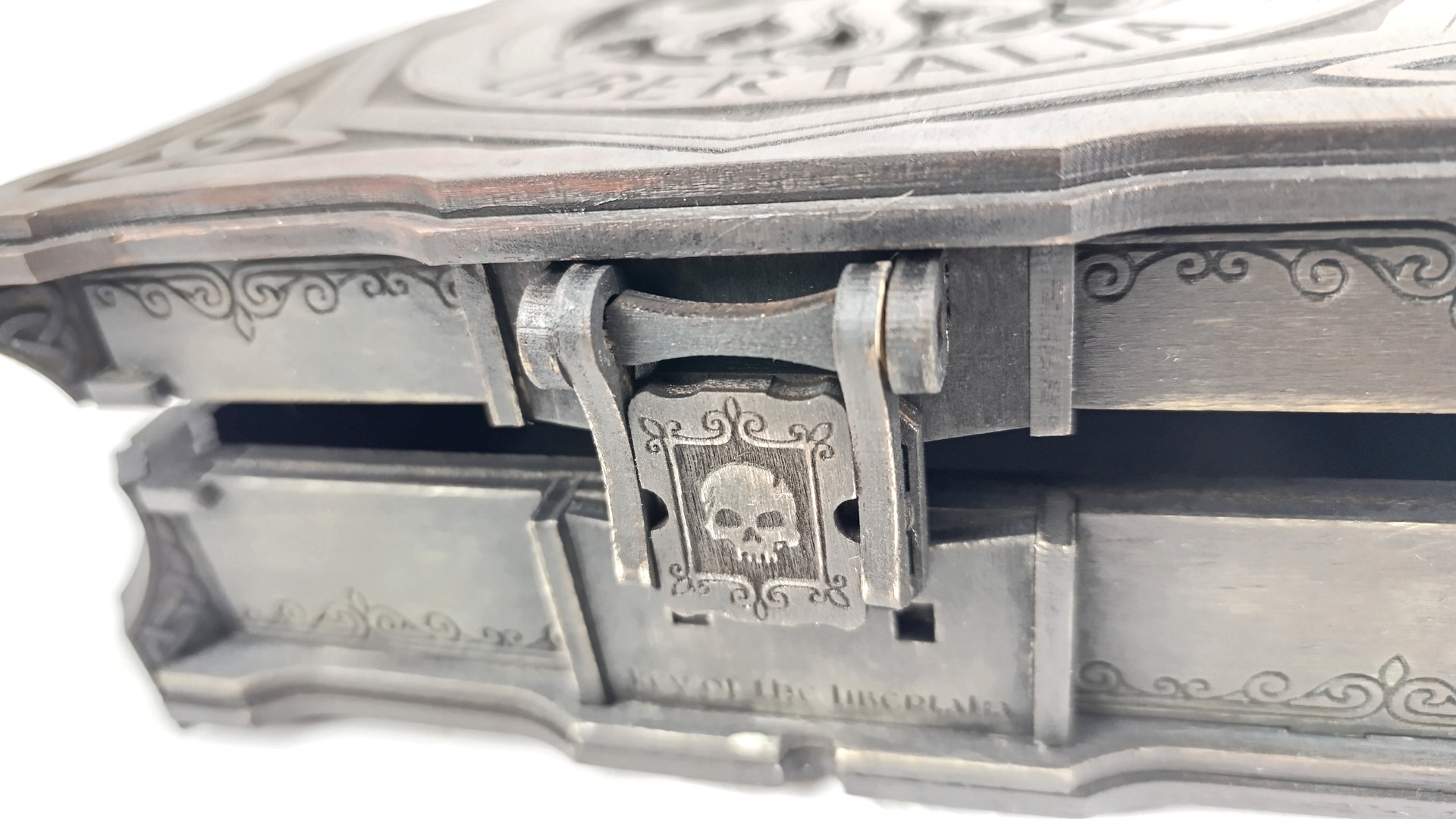

For a magnetic lock, you need 2 magints with a diameter of 3mm/0.12". The thickness of the magnet must not exceed the thickness of the material. The diameter of the magnets can be corrected in any vector editor (for example, free inkscape).
kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 3.8mm, 4mm, 4.5mm, 5mm
digital product includes: CDR, SVG, PDF, AI
Attention:
This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
