Box 00259 + 00289

Box 00259 + 00289. Digital files for manufacturing products on a laser machine (CO2 or diode laser)

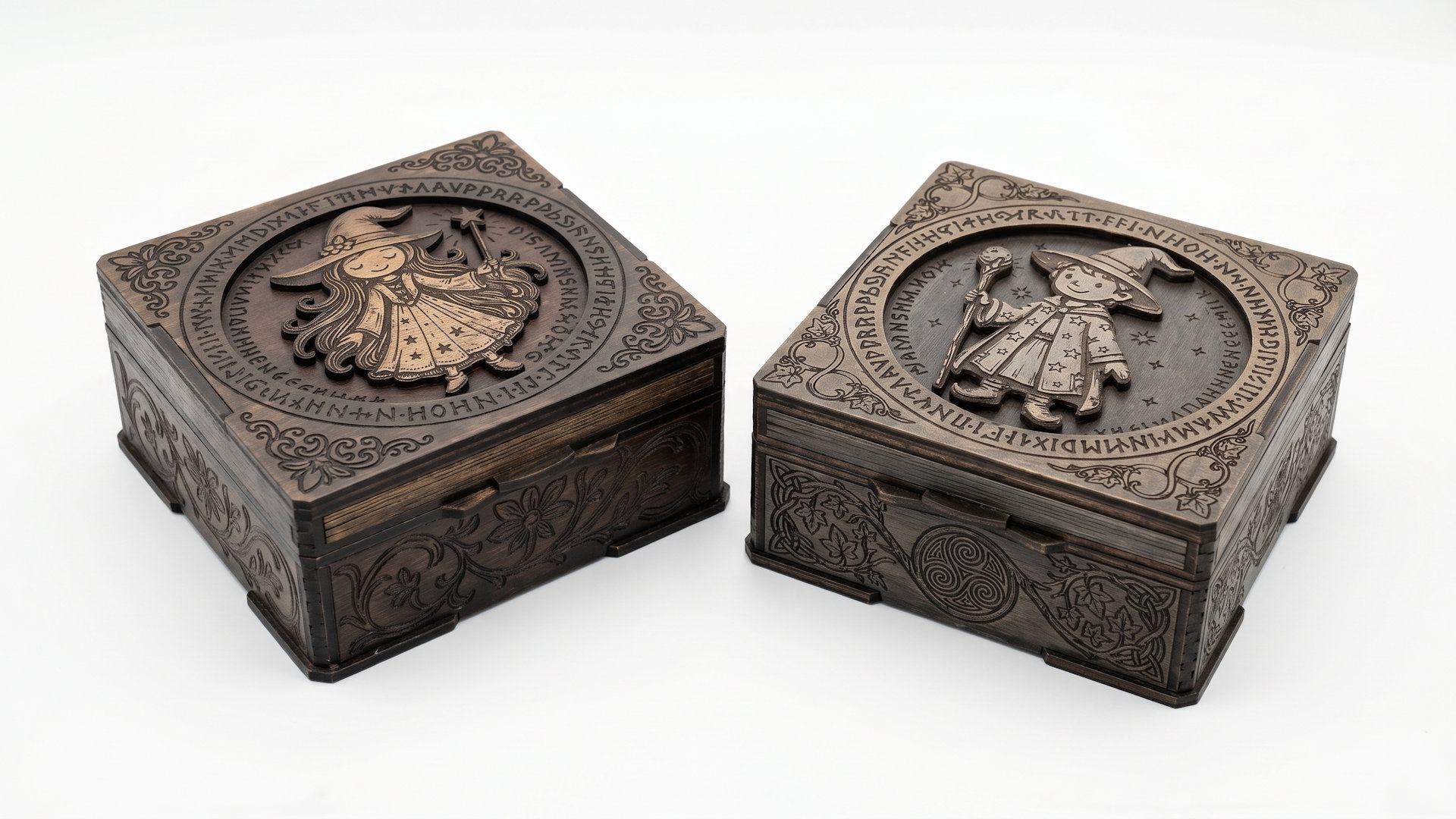

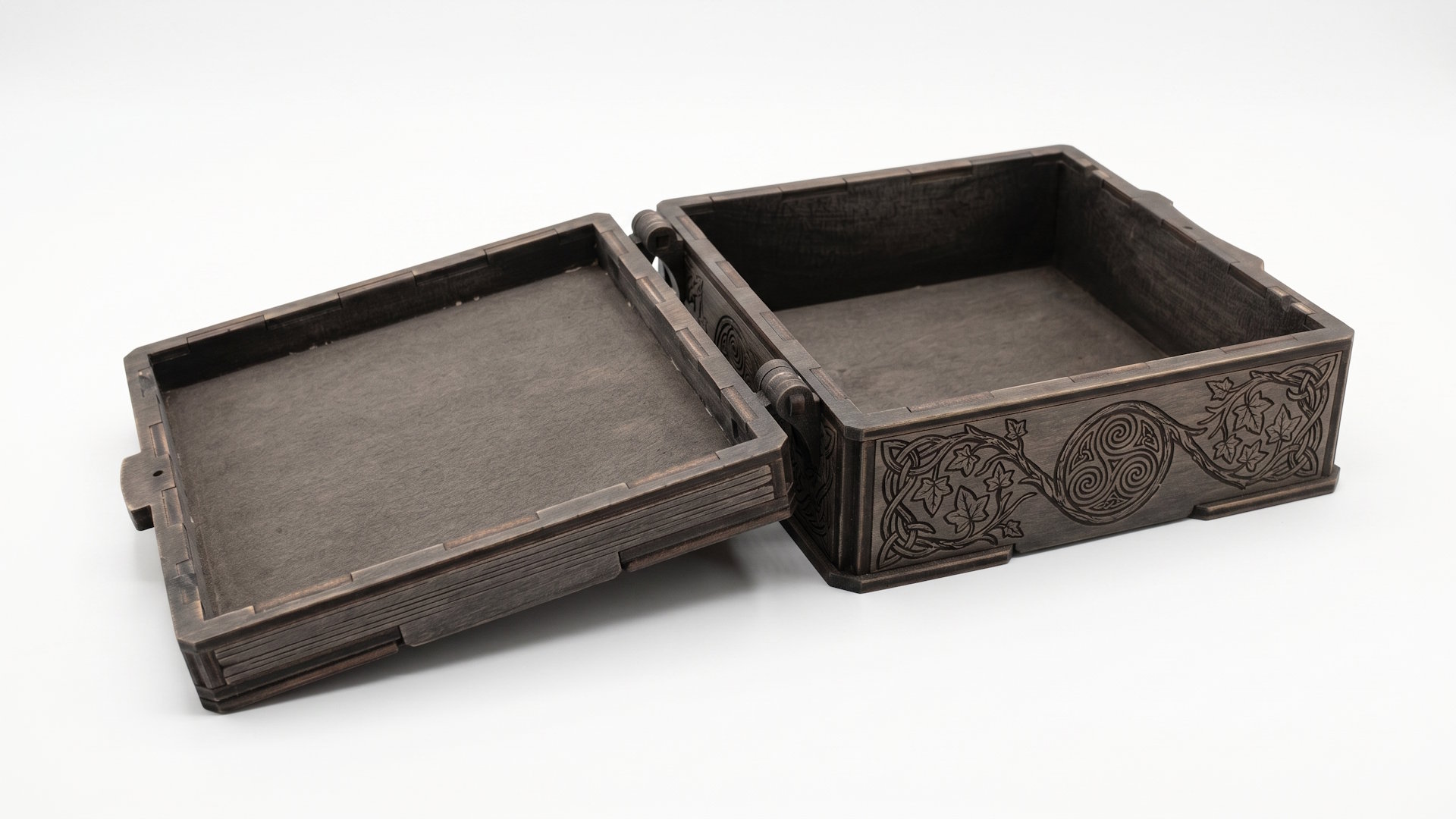

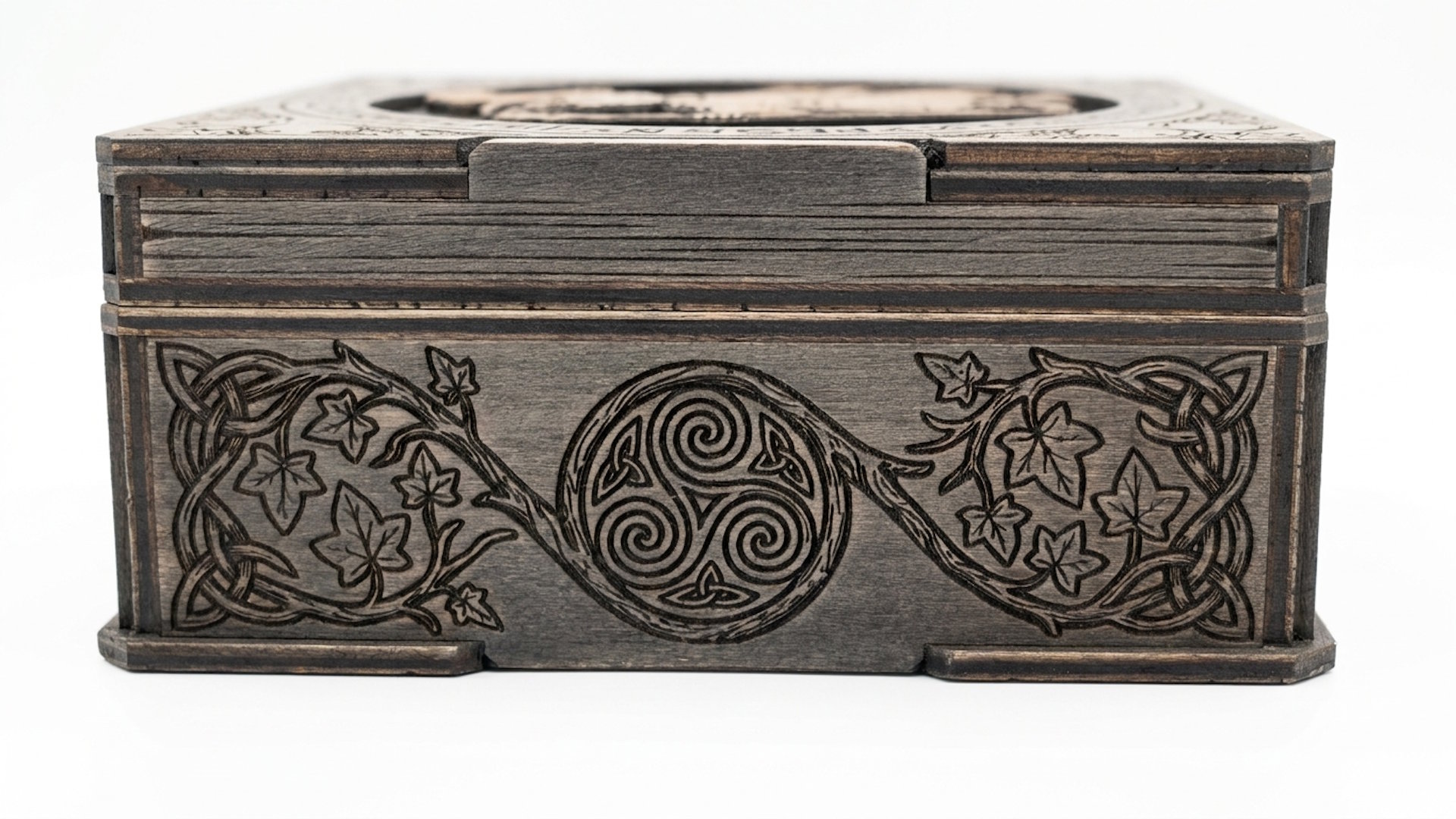

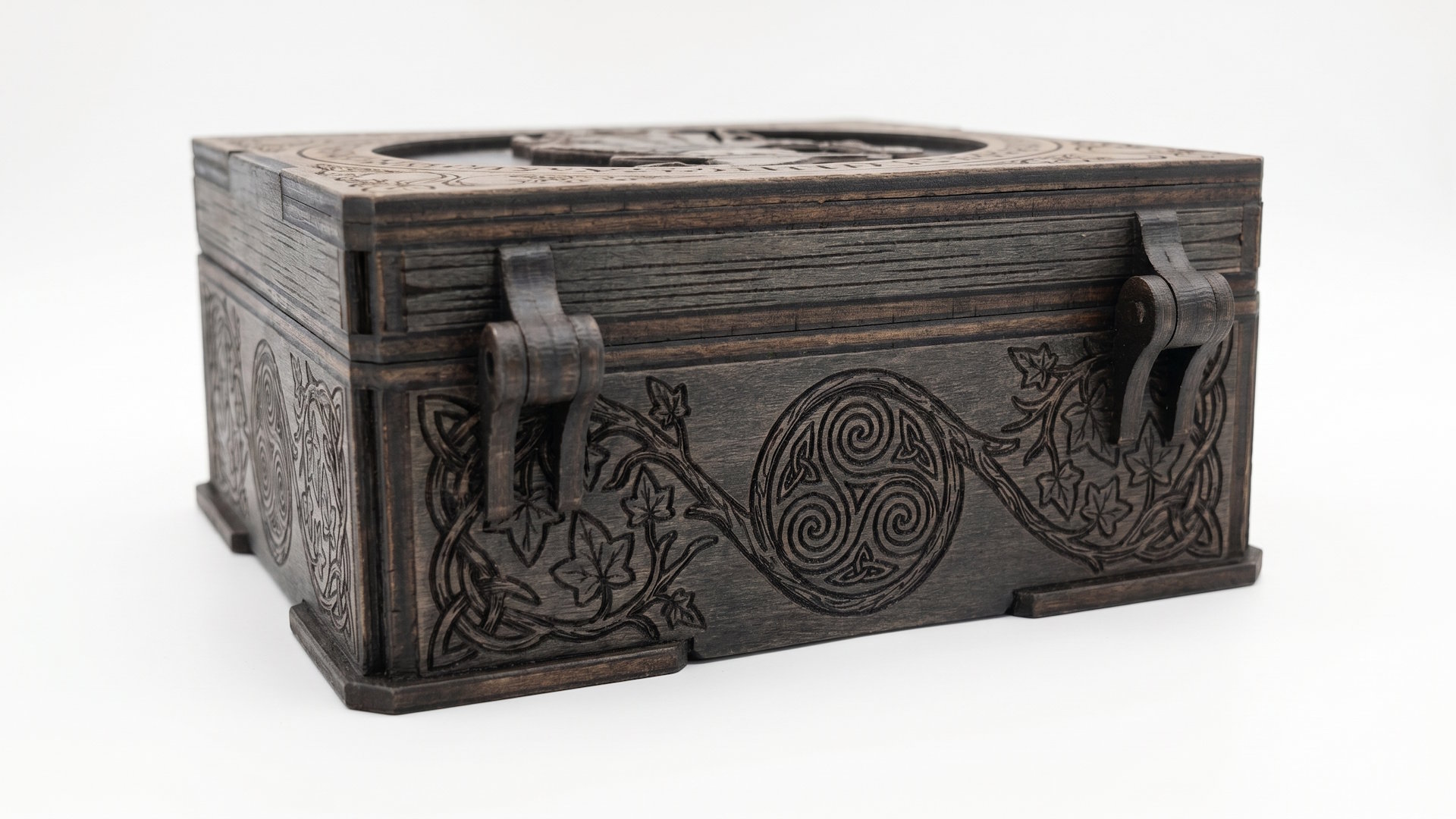

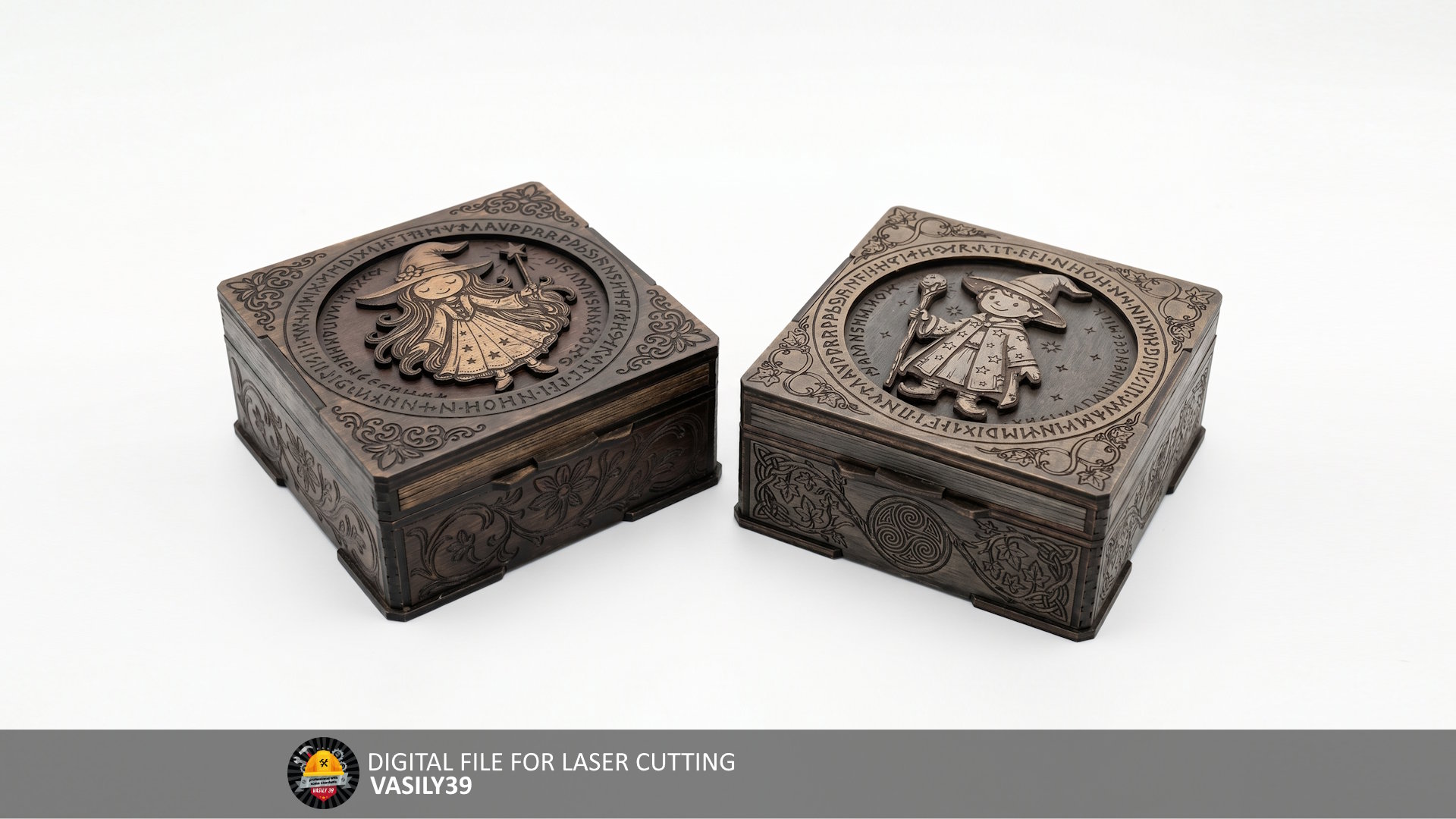

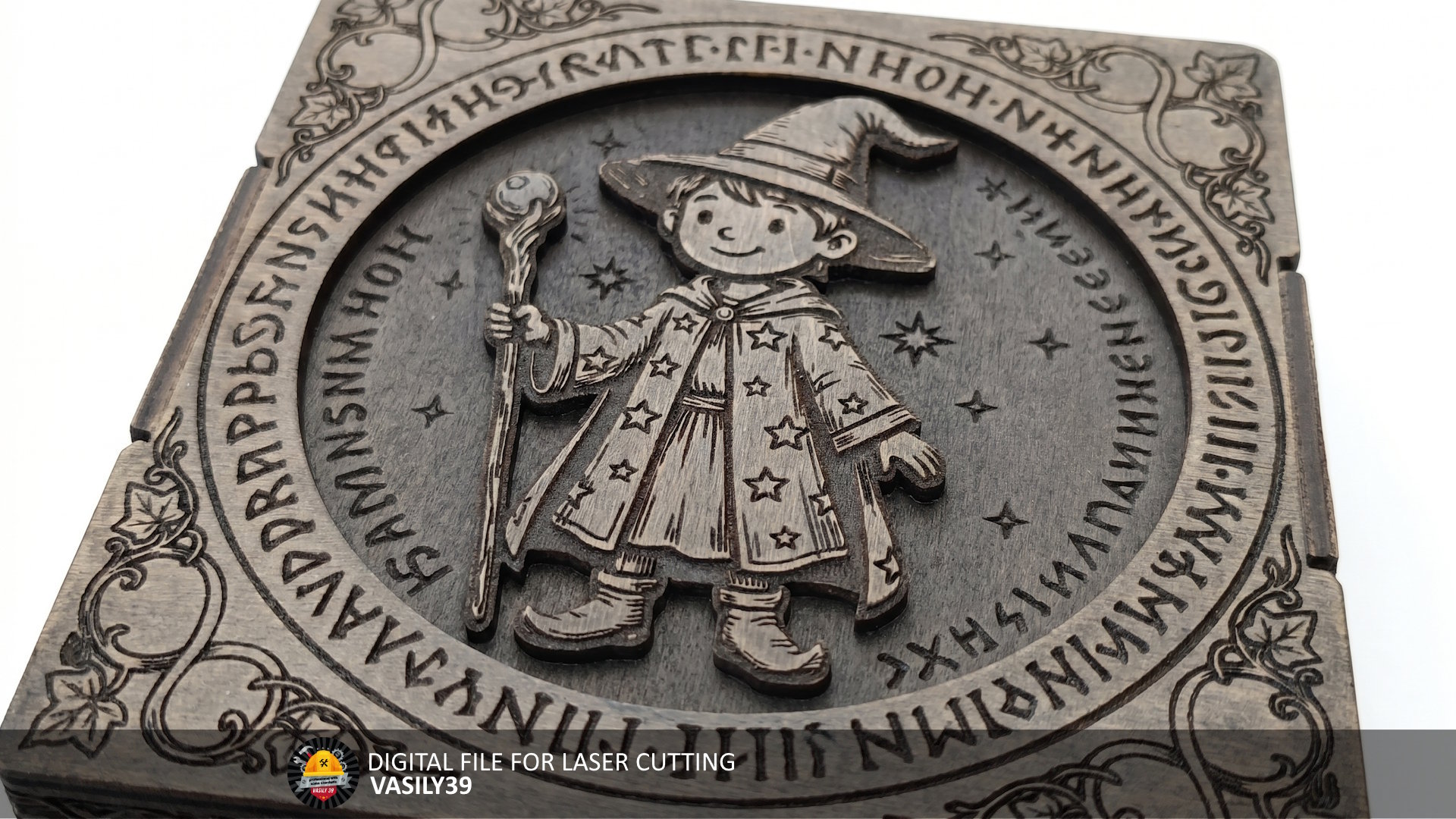

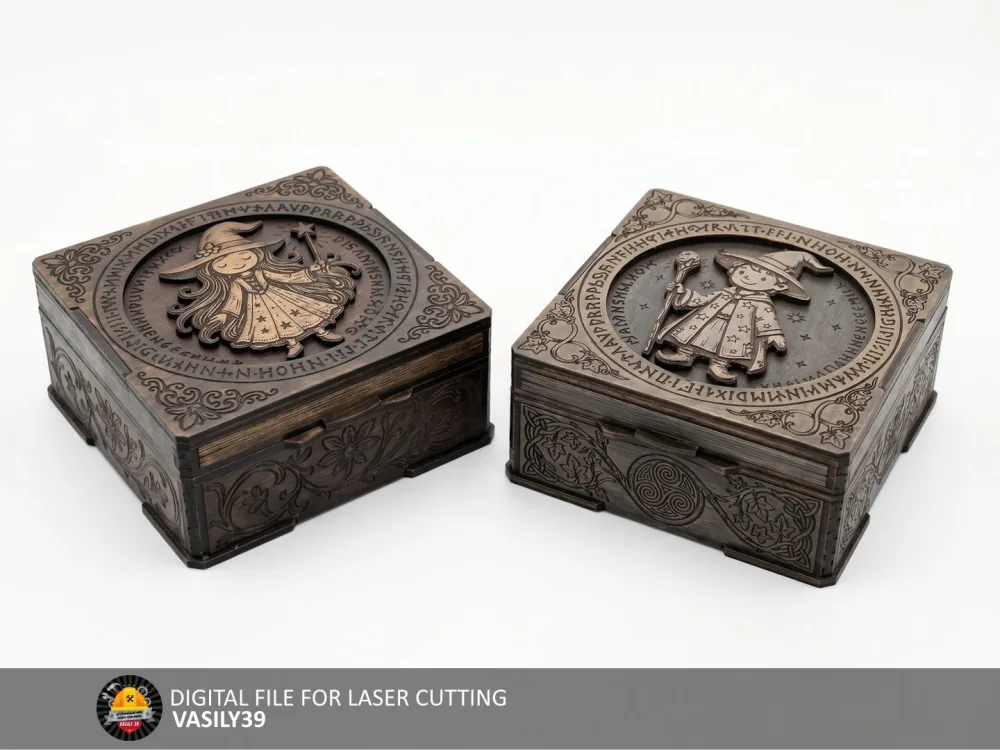

I finished the second version of this box (00259). I added a version with a Wizard. All the graphics are hand-drawn, which is still a very difficult process for me. Oddly enough, I’m not very good at 2D graphics ;)), so I have to spend hours moving points in a vector editor. The design remains unchanged, except for the hinges, which I adjusted a bit—made them thicker. The interior is smooth and has no protrusions. The walls are double-layered. Assembly is very simple.

The symbols are just a drawing, they do not carry any meaning.

length: 150mm / 5.9″ (internal)
width: 150mm / 5.9″ (internal)
height: 60mm (45mm base + 15mm lid) / 2.36″ (1.7″ base + 0.59″ lid) (internal)

For a magnetic lock, you need 2 magints with a diameter of 3mm/0.12″. The thickness of the magnet must not exceed the thickness of the material. The diameter of the magnets can be corrected in any vector editor (for example, free inkscape).

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 3.8mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4incj (6.35mm)
digital product includes: CDR, SVG, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
