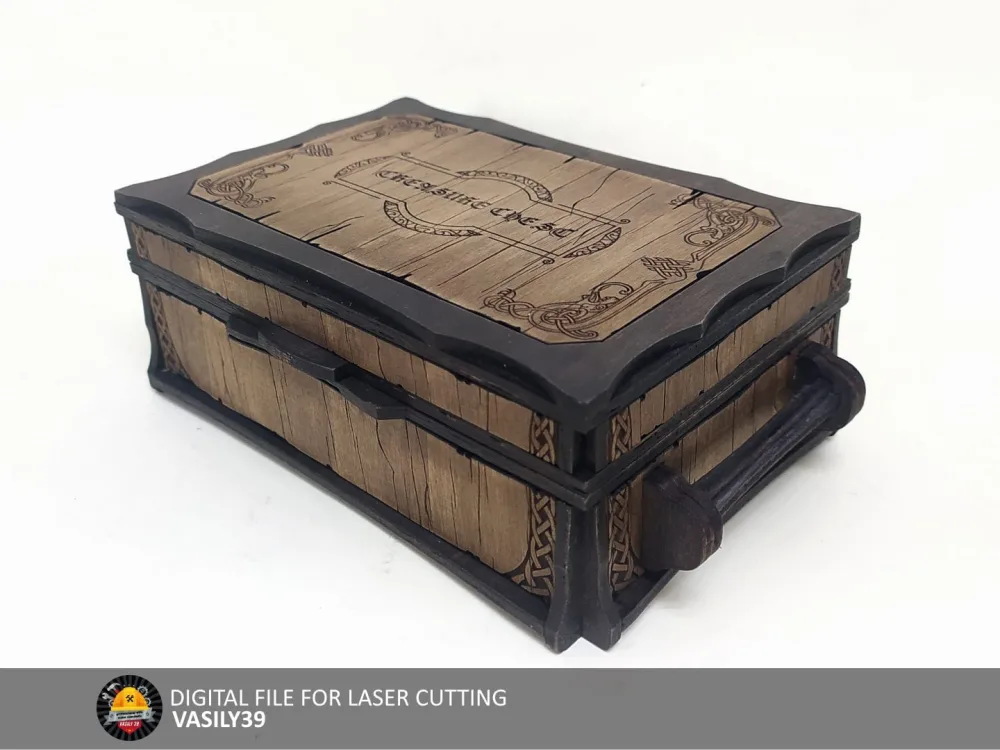

Celtic box 00188. Digital files for manufacturing products on a CNC laser machine.
This is a small box in a Celtic style. I made this project out of 2 layers of plywood, it is a very strong box. All parts are made of plywood, including the hinges, but the hinges can be easily replaced with an iron version. The only third-party components you will need is a 3mm magnet - the size of the magnet can be changed in any vector editor. Ideal for customization.
length: 160mm / 6.29" (internal)
width: 100mm / 3.93" (internal)
height: 50mm / 1.96" (internal)
for a magnetic lock: magnets size 3x3mm (2 rounded magnets) The magnets can be resized in any vector editor.
kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4inch (6.35mm)
digital product includes: CDR, SVG, PDF, AI
Attention:
This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
