Coasters Set 00224. Digital files for manufacturing products on a CNC laser machine.

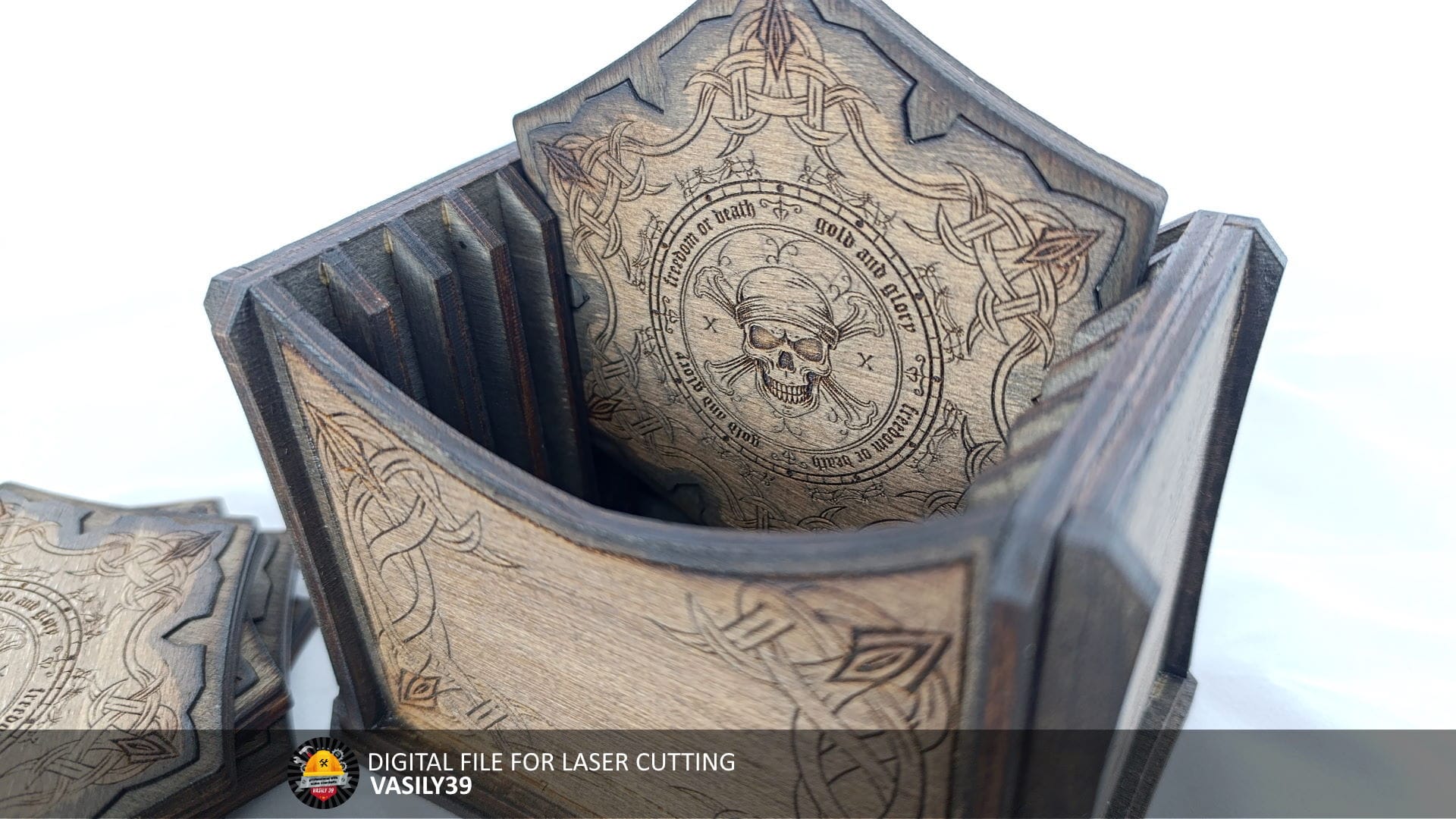

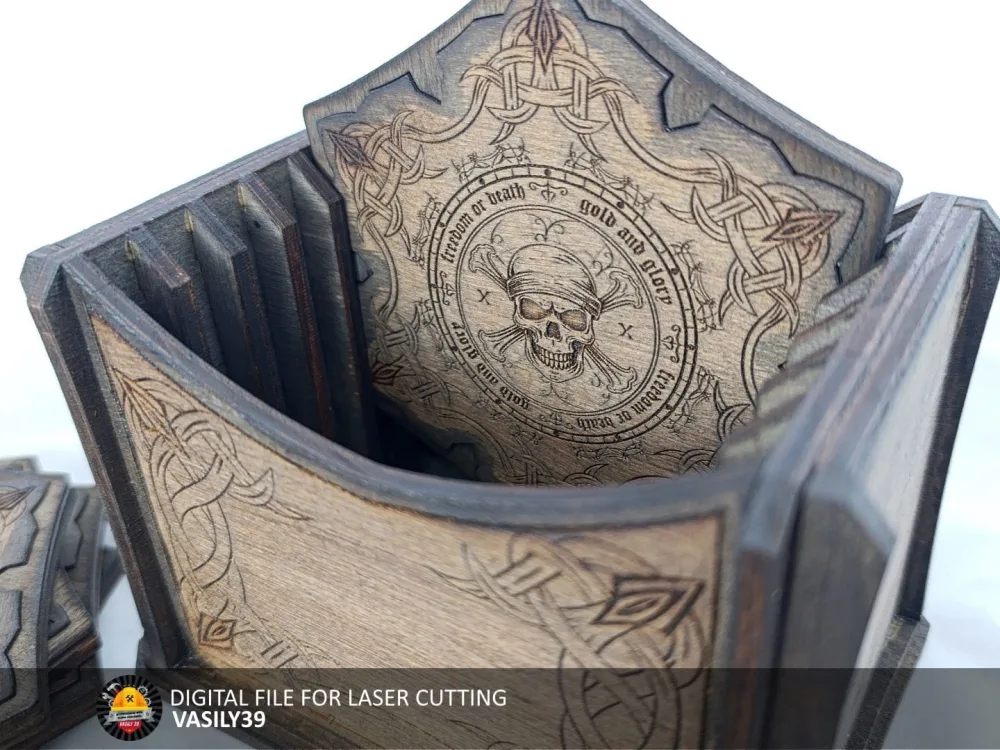

Pirate style coaster + holder for 6 coasters. The holder for coasters has a simple and sturdy design. All connections are hidden. The coaster is assembled from 2 layers. I used a cardboard insert (0.7 mm) so that the central part was a little higher, but in fact it is not necessary.
Coaster holder For 6 coasters up to 9mm thick and 100mm in diameter.
length: 102mm / 4.01" (internal)
width: 70mm / 2.75" (internal)
height: ~ 70mm / 2.75" (internal)
distance between guides: 9mm / 0.35" (internal)
Coaster:
diameter: 100mm / 3.93"
thick: ~ 7mm / 0.27"
The thickness of the assembled coaster should not exceed 8.5 mm - since the holder has a thickness of 9 mm.
digital product includes: CDR, SVG, PDF, AI
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 3.8mm, 4mm, 4.5mm, 5mm
Attention:
This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
