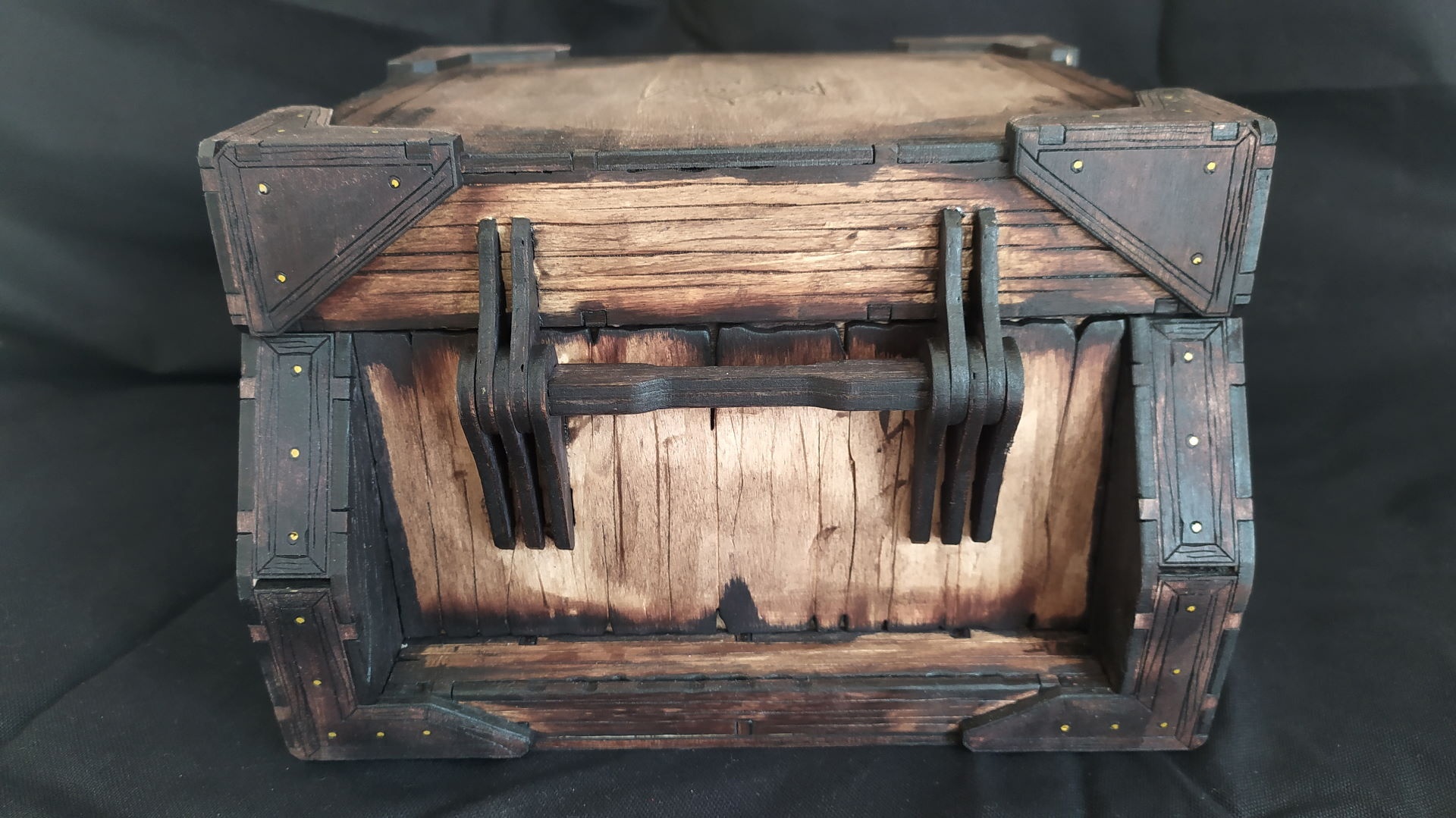

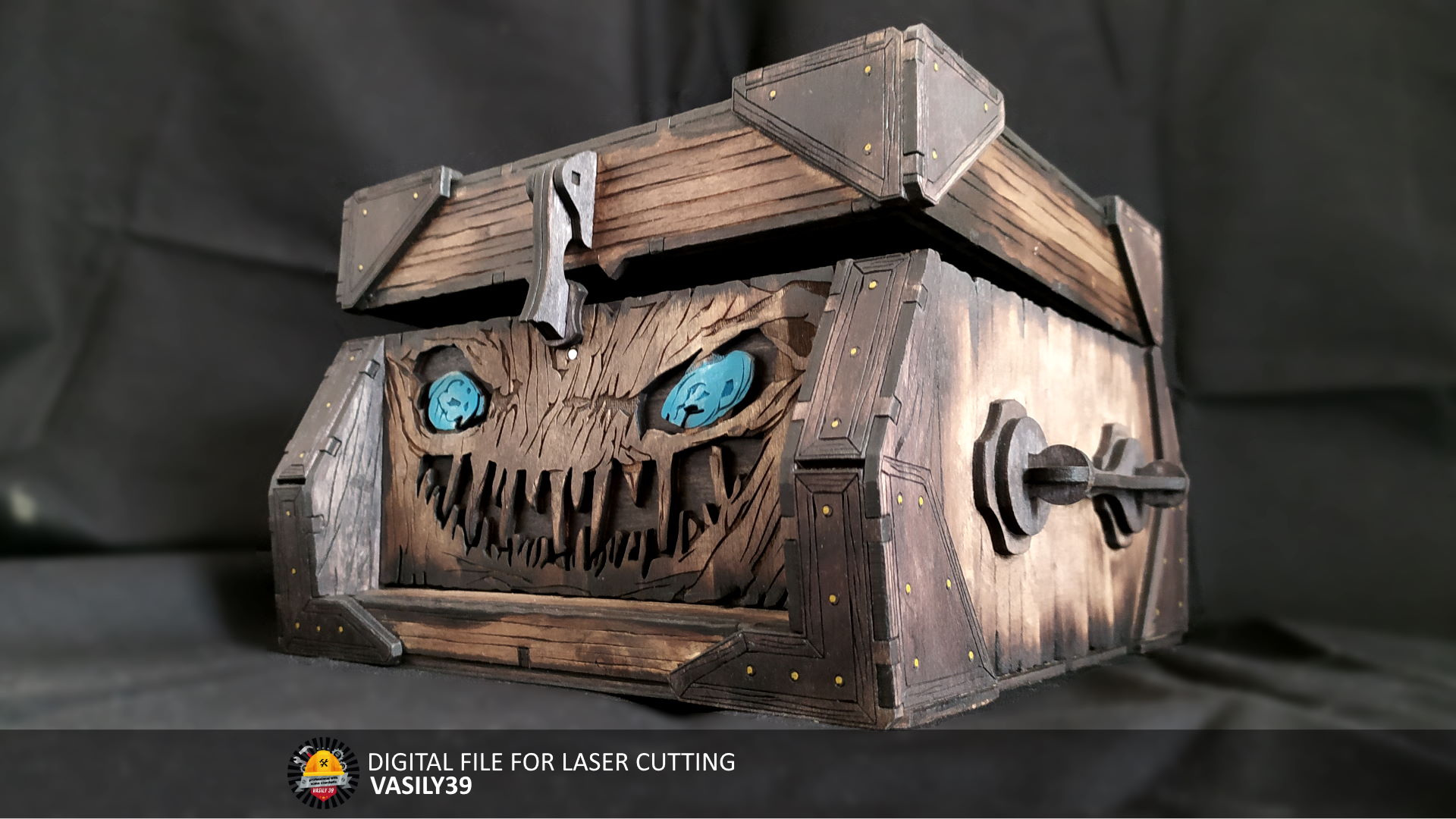

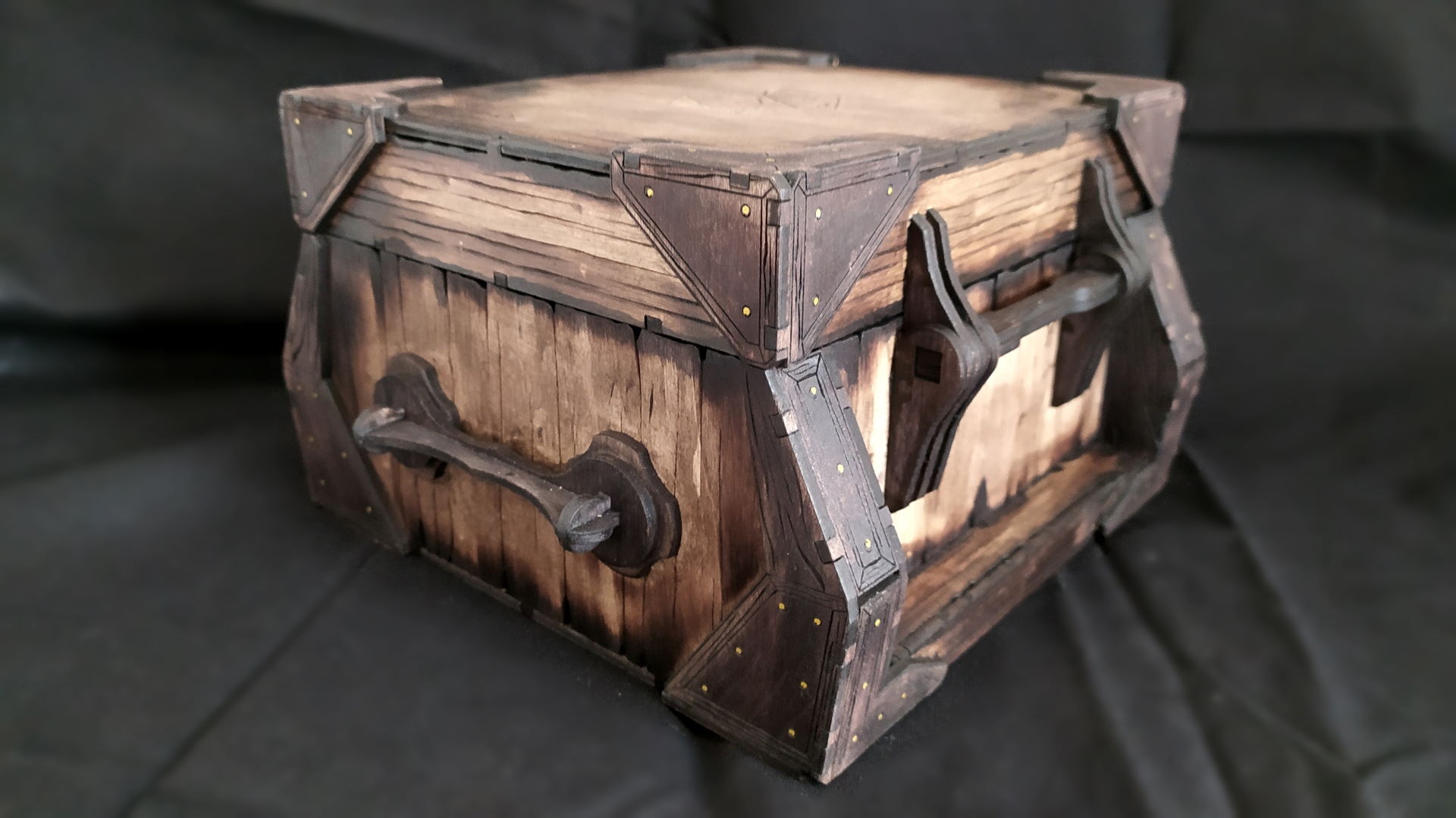

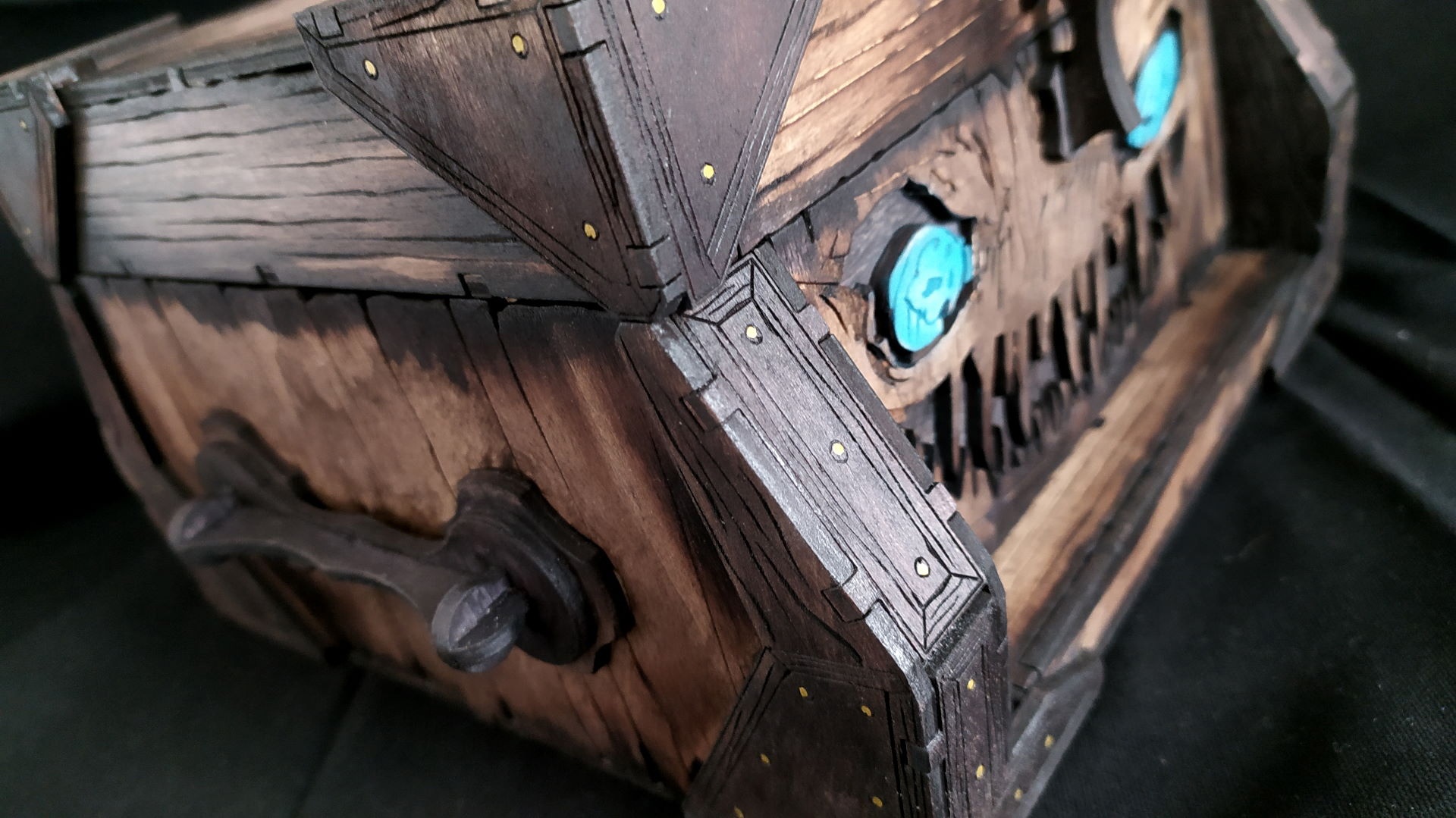

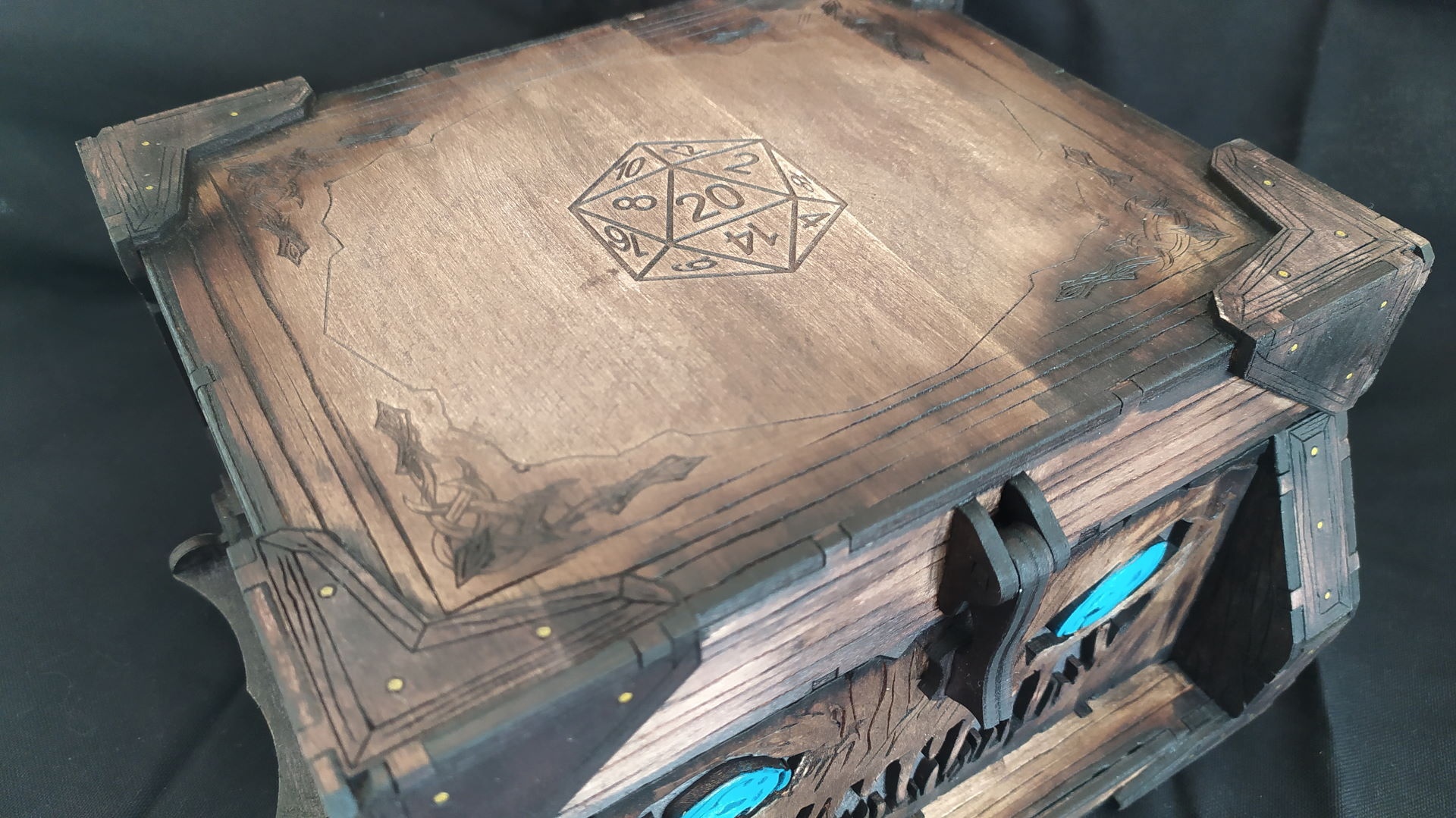

Mimic chest 00190

Mimic chest 00190. Digital files for manufacturing products on a CNC laser machine.

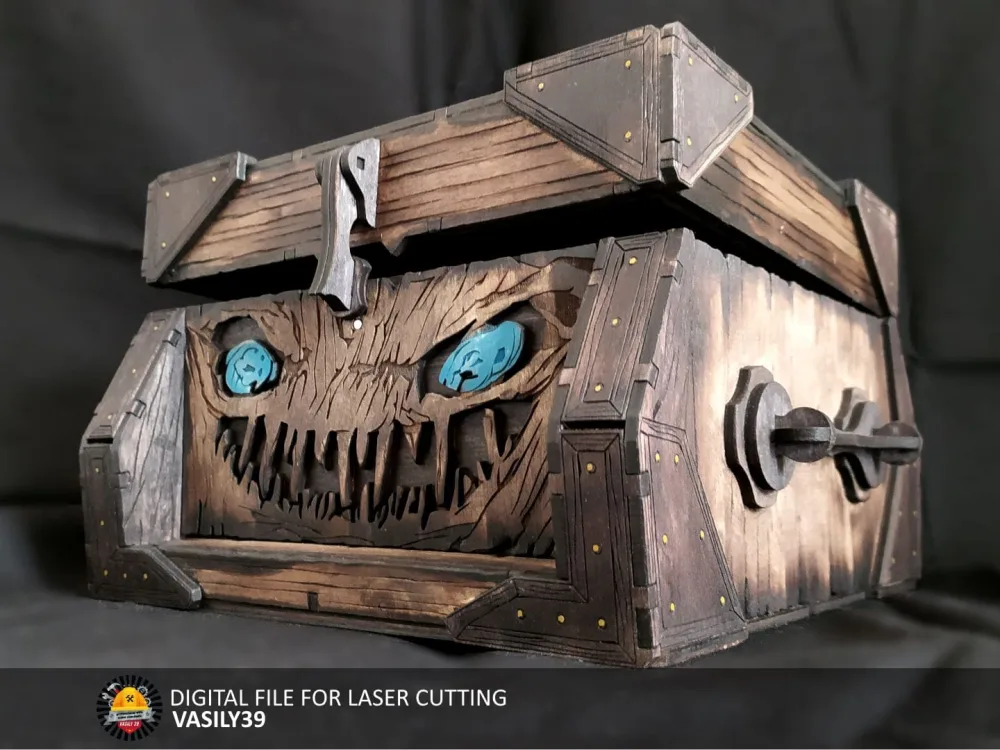

The chest has a flat interior space. 100% made entirely of wood on a laser machine, except for 2 magnets for the lock (optional). The dimensions of the largest part are 220 by 220 mm (if you need a smaller version for a working field of 300 by 200 mm, write to me). This is a large project – 83 parts. Double walls make it very strong and durable.

length: 200mm / 7.87″ (internal)
width: 170mm / 6.69″ (internal)
height: 135mm (100mm base + 35mm lid) / 5.31″ (3.93″ base + 1.37″ lid) (internal)

For a magnetic lock, you need 2 magints with a diameter of 3mm/0.12″. The thickness of the magnet must not exceed the thickness of the material. The diameter of the magnets can be corrected in any vector editor (for example, free inkscape).

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm
digital product includes: CDR, SVG, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
