Card storage box with mechanism 00120

Card storage box with mechanism 00120.

Digital files for manufacturing products on a CNC LASER machine.

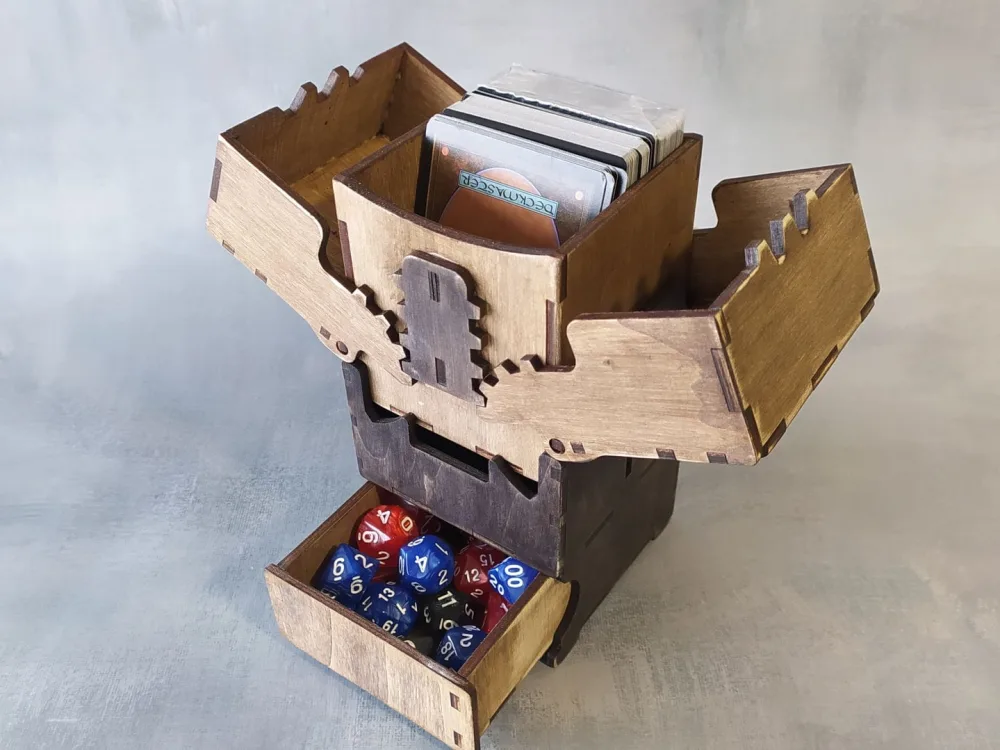

The layout was created for cards for board games, but it is also perfect for storing poker cards, fortune-telling, tarot, oracles, collectible and other cards. For 100+ cards. In this project, I added a drawer. As always, the layout is made in several thicknesses of material, all parts are made of plywood. Optionally, you can install a magnetic lock for the drawer.

Easy to assemble, very unusual and beautiful box.
Manufacturing time 15 minutes with painting and assembly.
Suitable for laser machines with a small working area.

Original box:
length: 70mm / 2.75″ (internal)
width: 60mm / 2.36″ (internal)
height: 90mm / 3.54″ (internal)

For double sleeved cards:
length: 75mm / 2.95″ (internal)
width: 75mm / 2.95″ (internal)
height: 100mm / 3.93″ (internal)

drawer:
length: 70mm / 2.75″ (internal)
width: 63mm / 2.48″ (internal)
height: 35mm / 1.37″ (internal)

for magnetic lock (optional): 2 rounded magnets 4x4mm
The size of the magnet should not exceed the thickness of the material. The magnet hole diameter can be edited in any vector editor. Installation of magnets is optional.

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4inch (6.35mm)
digital product includes: CDR, SVG, PDF, AI, DXF

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
