DM Screen 00307 – Digital Laser Cutting Files
This is a set of digital files for manufacturing a classic three-panel DM screen on a CO₂ or diode laser machine.
The central panel fits A4 or Letter paper, and the two side panels fit A5 or Half Letter. The side panels fold over the central panel like doors and close with two magnetic locks. The locks face in opposite directions, so the doors stay firmly shut. Each panel has a slot at the top for additional cards. Paper sheets are held with round magnets (5 × 1 mm / 0.19 × 0.03 in). The backing is cut from 1 mm (0.03 in) felt, but you may substitute other materials if desired.
The panels are connected with wooden knuckle hinges. The screen opens flat on the table and folds into a compact closed box, making it convenient to store and carry.
Design and Development

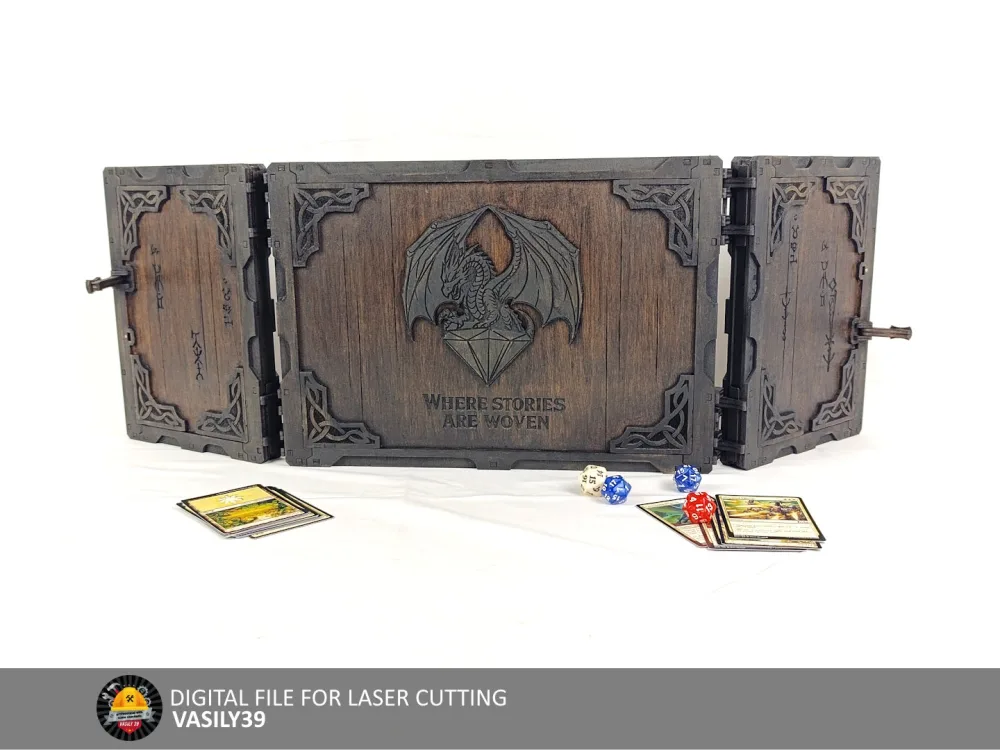

The sample shown in the photos is cut from 3 mm (0.12 in / 1/8 in) birch plywood. Every panel has an internal grid of stiffening ribs, so the screen stays flat and rigid despite the thin plywood. All graphics are hand-drawn and easily customizable – you can add your own text, logos, or images. The screen consists of 168 individual parts assembled and glued into one solid structure.
Dimensions
Paper space, central panel: 335 × 220 mm (13.19 × 8.66 in) – fits A4 and Letter (landscape)
Paper space, side panels: 150 × 220 mm (5.91 × 8.66 in) – fits A5 and Half Letter
Folded (3 mm version):
Length: 388 mm (15.28 in)
Width: 55 mm (2.17 in)
Height: 254 mm (10.00 in)
Unfolded width: approx. 800 mm (31.50 in)
Largest part size: 369 × 254 mm (14.53 × 10.00 in).
If your laser machine's working area is smaller, this project is not suitable.
Magnet Requirements
21 round magnets – 5 × 1 mm (0.19 × 0.03 in) for holding paper
4 magnets – 3 × 3 mm (0.11 × 0.11 in) for the two magnetic locks (the magnet must not be thicker than the plywood)
Magnet sizes can be adjusted in any vector editor.
Technical Notes
Kerf (cut compensation): 0.15 mm and 0
Designed for plywood thickness: 3mm, 1/8" (3.175mm), 3.6mm, 3.8mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4" (6.35mm)
Digital Product Includes
File formats: CDR, SVG, PDF, AI
Step-by-step assembly instructions
Important Information
This is a digital download only. No physical product will be shipped.
You may use these files to create finished products for personal or commercial use.
Resale or redistribution of the digital files themselves is strictly prohibited.
