Chest of drawers 00187

$4.00

Material thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4inch (6.35mm)

Guaranteed Safe & Secure Checkout Instant Delivery ⚡

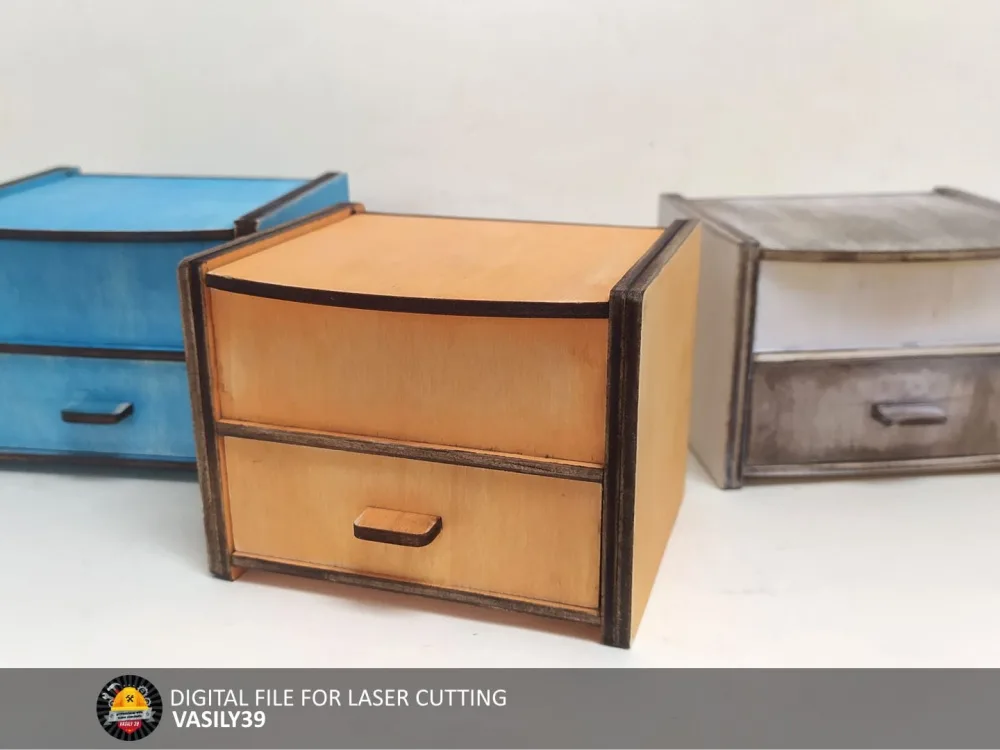

Сhest of drawers 00187. Digital files for manufacturing products on a CNC laser machine.

A small chest with a drawer.

box size:

length: 110mm / 4.33" (inner)

width: 80mm / 3.15" (inner)

height: 35mm / 1.37" (inner)

drawer size (depends on material thickness):

length: 104mm / 4.09" (inner)

width: 74mm / 2.91" (inner)

height: 30mm / 1.18" (inner)

kerf (cut compensation): 0.15mm and 0

design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4inch (6.35mm)

digital product includes: CDR, SVG, PDF, AI

Attention:

This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.

Tags: #chest of drawers • #mini chest organizer • #desktop drawers • #laser cut file • #glowforge vector plan • #svg cut file • #plywood laser template • #cdr laser pattern • #cnc laser cutting • #dxf vector plan

Included Formats	CDR, SVG, PDF, AI
Material Thicknesses	3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4inch (6.35mm)
Kerf Compensation	0 and 0.15mm (both in archive)
Delivery Method	Instant ZIP Archive

Chest of drawers 00187

Blueprint Specifications

Recommended Materials & Finish

Commercial Use Policy
