Design your own laser cut chest of drawers in the live 3D studio. Pick 1 to 6 columns and 1 to 6 rows, set the size of a drawer or the overall size of the chest, and the plan is rebuilt instantly: carcass, dividers, shelves, drawers and all the joints. The first drawer slides out in the preview, so you can check how it works before you cut anything.

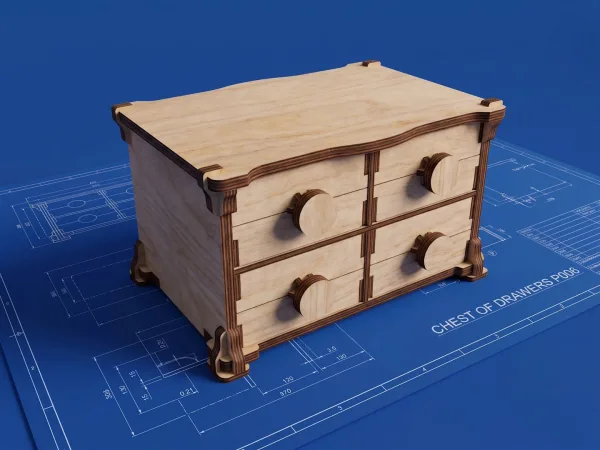

The chest stands on four round feet and a plinth, with a top plate and a decorative cap. Each drawer has a bottom, sides, a back, a front frame with an inset front plate, and a round knob. Wall thickness follows the plywood you have: every slot and tab adapts to any thickness from 3 mm to 6.35 mm (1/8"). The feet and knobs keep their size, only the joints change.
What you can adjust:
- Columns and rows: 1 to 6 each
- Drawer width, height and depth
- Clearance between drawers and the carcass
- Material thickness: 3 to 6.35 mm (1/8" to 1/4"), any value in between
What you get after the download: a ZIP archive. Inside are two SVG files, kerf_0 (no compensation) and kerf_0.15 (0.15 mm compensation for a tighter fit). Colors are the standard ones for laser software: cut lines in red, ready for LightBurn, LaserGRBL, CorelDRAW or Illustrator.
