Dice box 00185

Dice box 00185. Digital files for manufacturing products on a CNC laser machine (co2 or diode laser).

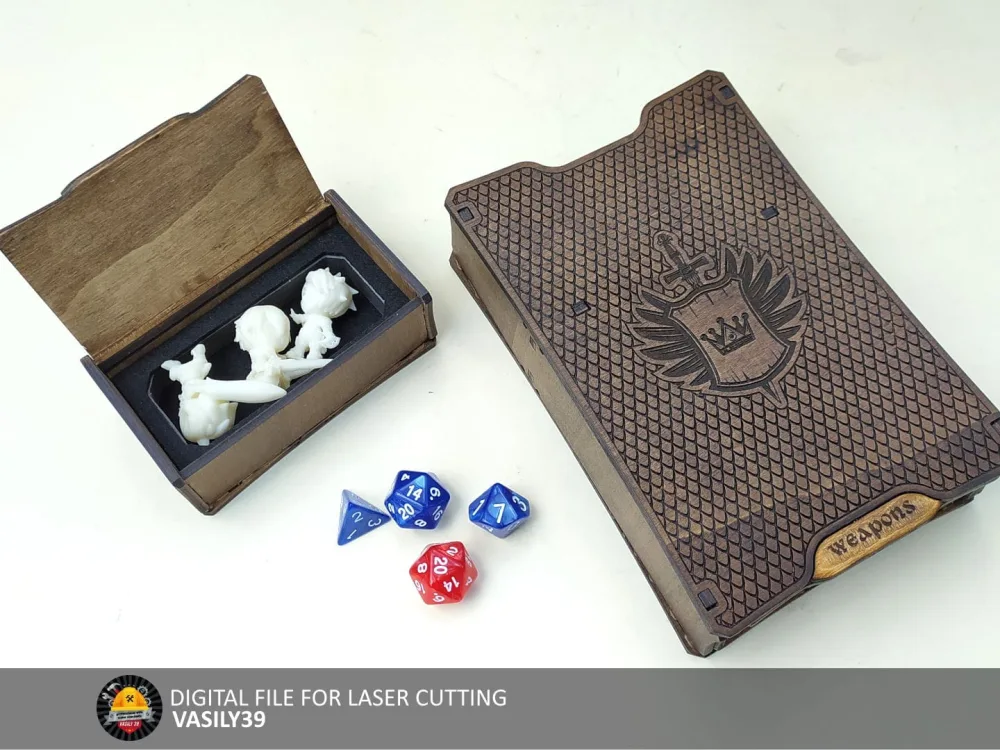

Dice & hero box “Royal Set”. This is part of the starter package for starting your own business. You can cut, assemble and sell these boxes right now. For board card games such as: Dungeons & Dragons, Magic: The Gathering, Pokemon, Minecraft and etc.

box1 (for dice):
length: 100mm / 3.93″ (internal)
width: 100mm / 3.93″ (internal)
height: 30mm / 1.18″ (internal)

box2 (for hero):
length: 100mm / 3.93″ (internal)
width: 50mm / 1.96″ (internal)
height: 30mm / 1.18″ (internal)

For a magnetic lock, you need 4 magints with a diameter of 3mm/0.12″. The thickness of the magnet must not exceed the thickness of the material. The diameter of the magnets can be corrected in any vector editor (for example, free inkscape).
for the pad, I used a felt.

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4inch (6.35mm)
digital product includes: CDR, SVG, PDF

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
