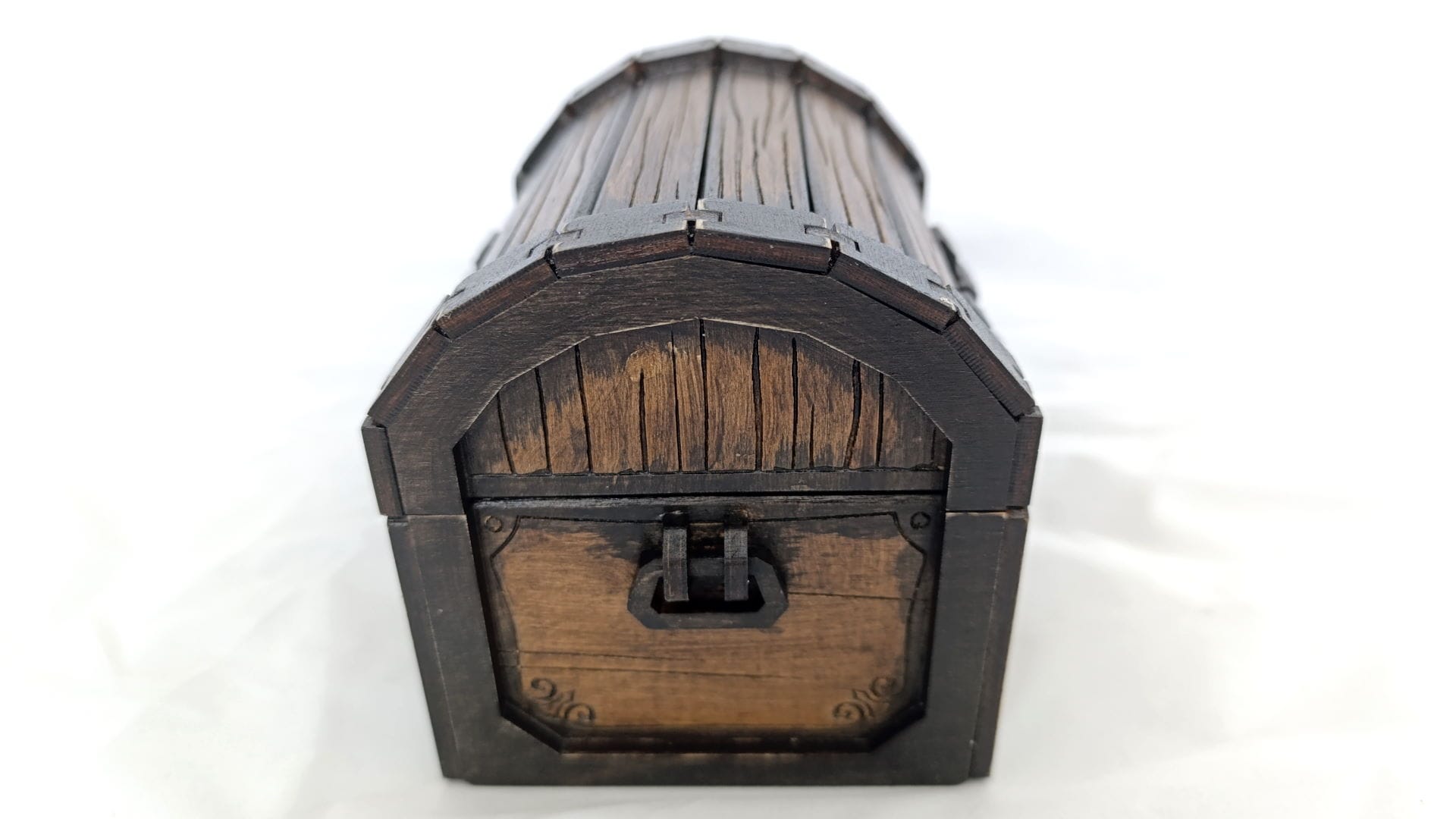

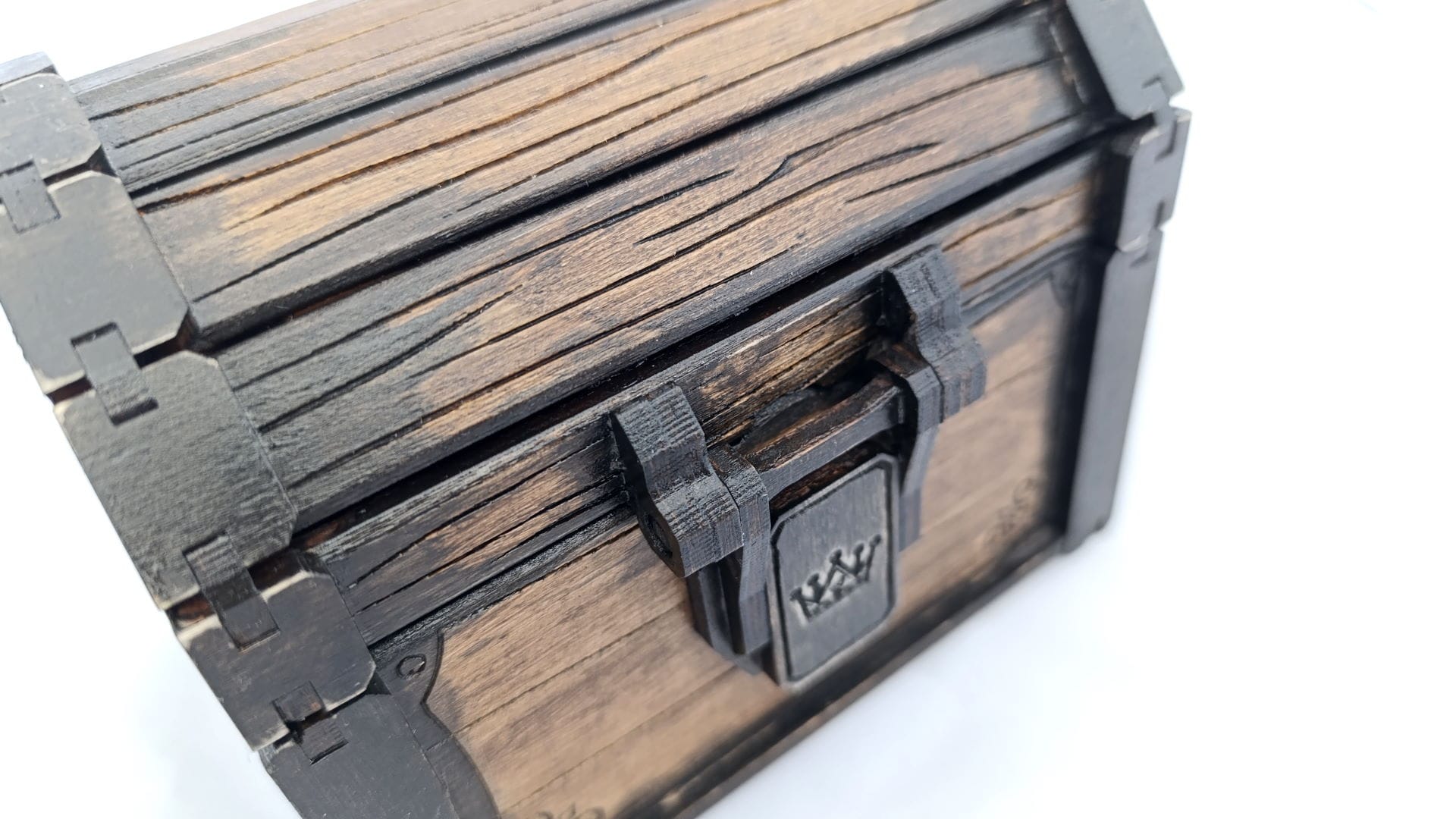

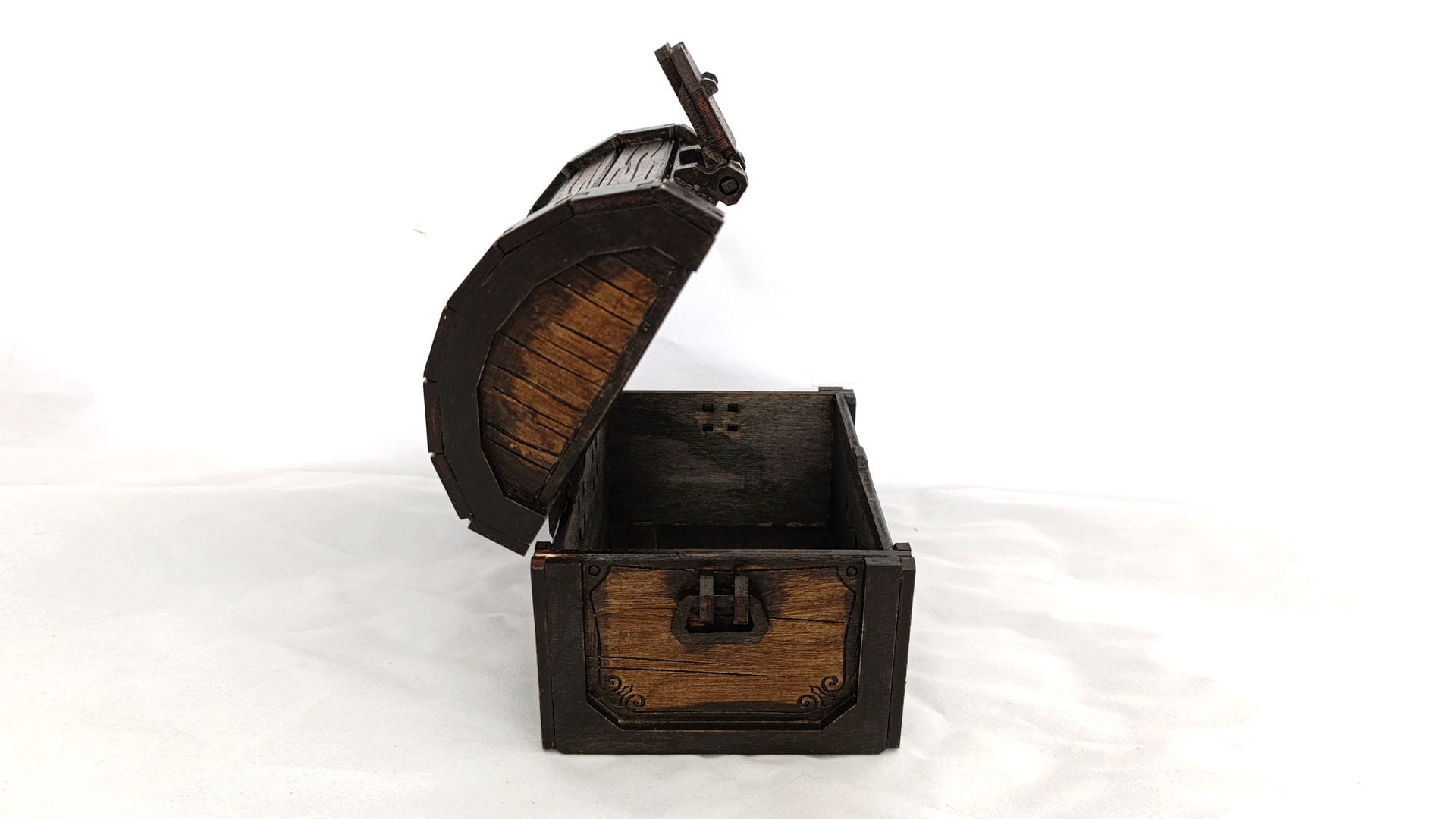

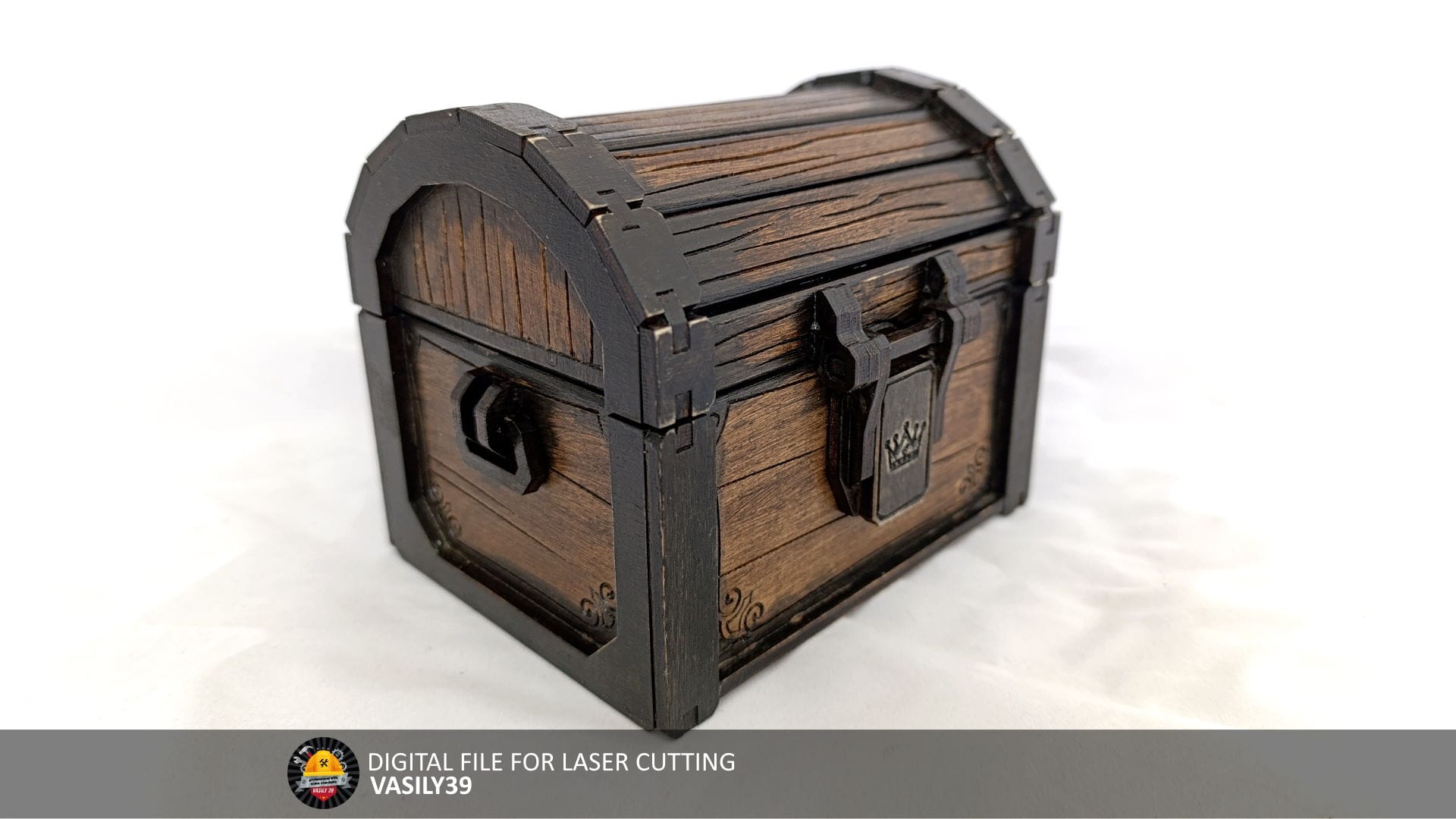

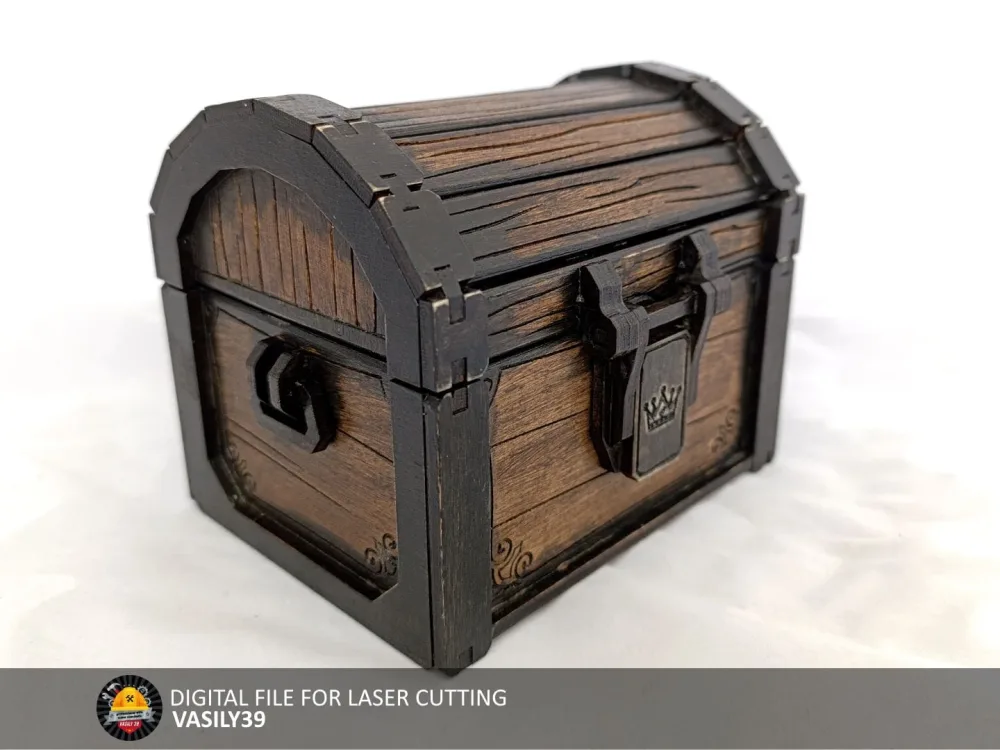

Treasure chest 00222. Digital files for manufacturing products on a CNC laser machine (CO2 or Diode).

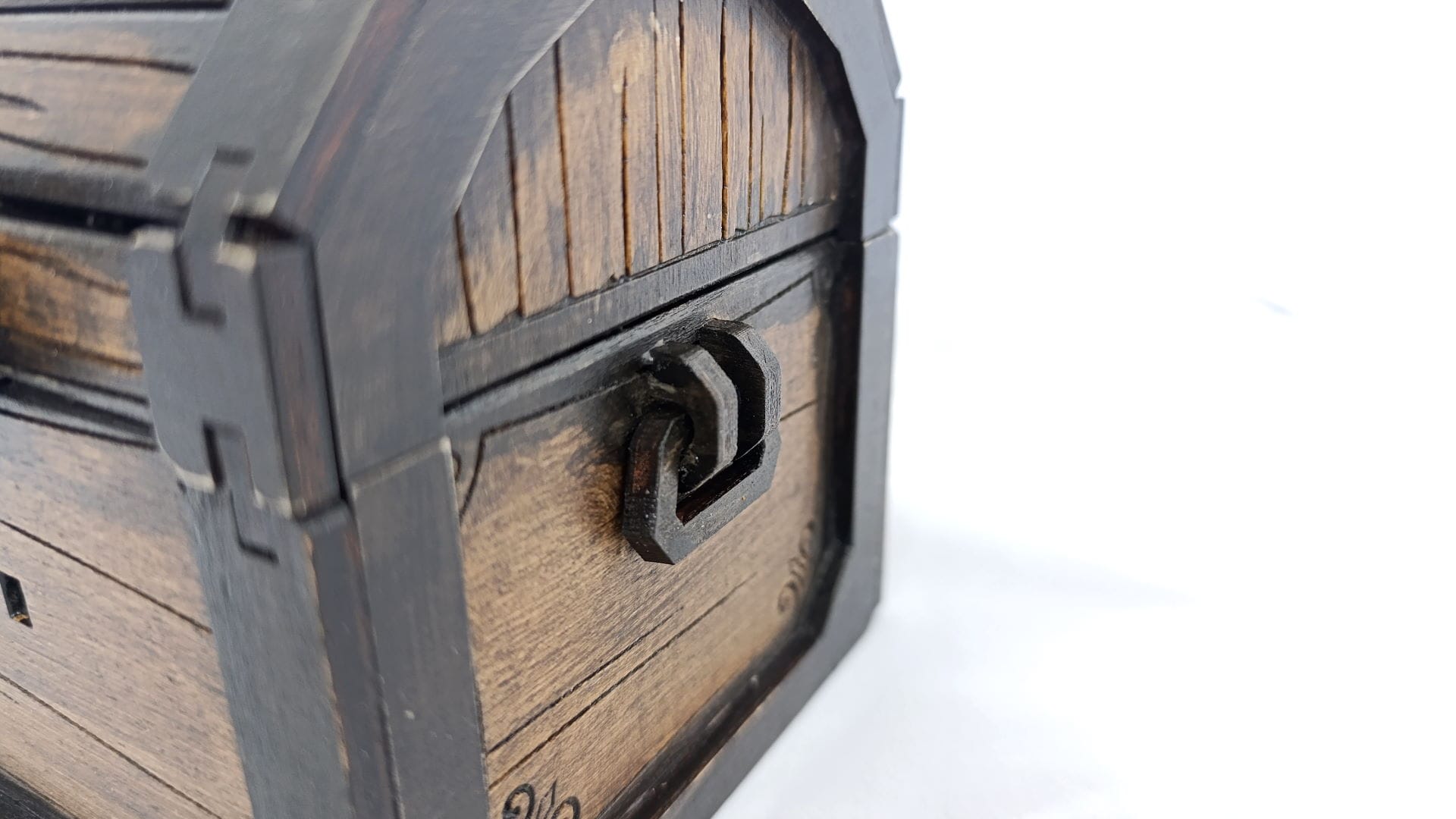

All the parts fit on a sheet of material 500 by 300 mm. The assembly is as simple as possible, I tried to make all the parts symmetrical. The most difficult part is installing the handles on the side of the chest. A little glue is required for assembly. You can also install 2 magnets for a magnetic lock, but this is not necessary.
length: 120mm / 4.72" (internal)
width: 90mm / 3.54" (internal)
height base: 65mm / 2.56" (internal)
height lid: 35mm / 1.37" (internal)

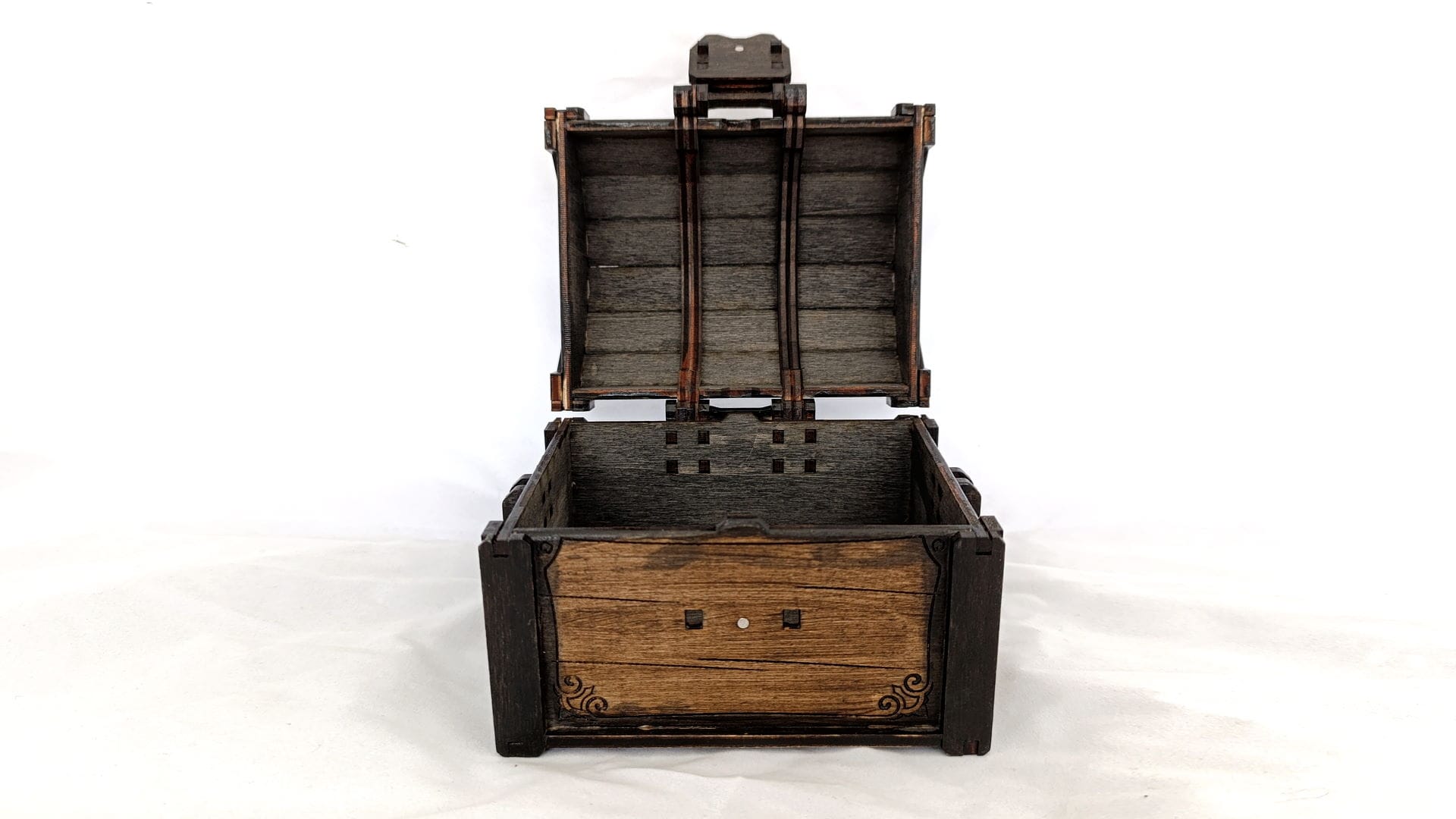

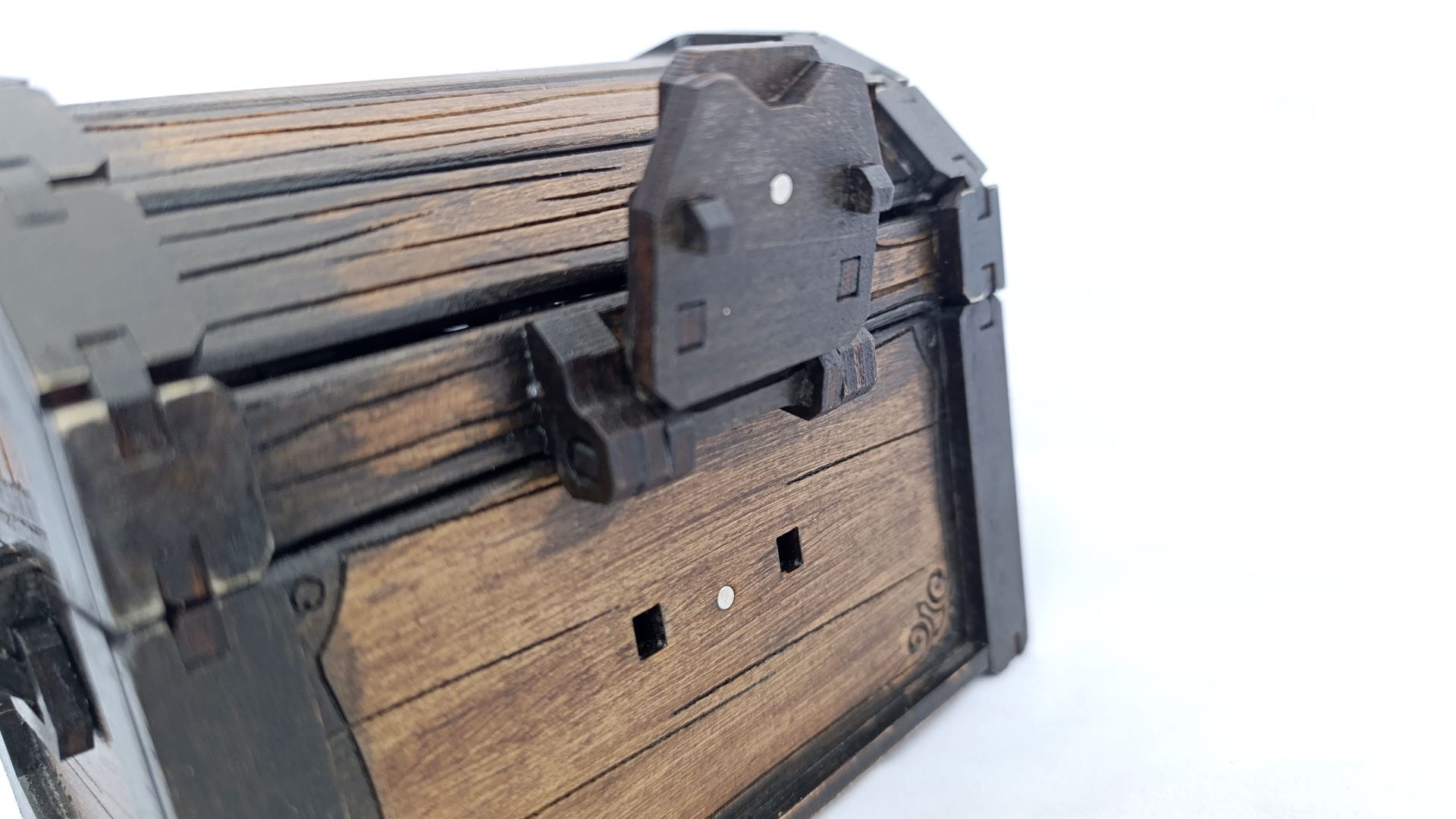

for a magnetic lock: 2 magnets 3x3mm Optional
kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 3.8mm, 4mm, 4.5mm, 5mm
digital product includes: CDR, SVG, PDF, AI
Attention:
This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
