Gift box 00018

Gift box 00018. Digital files for manufacturing products on a CNC laser machine.

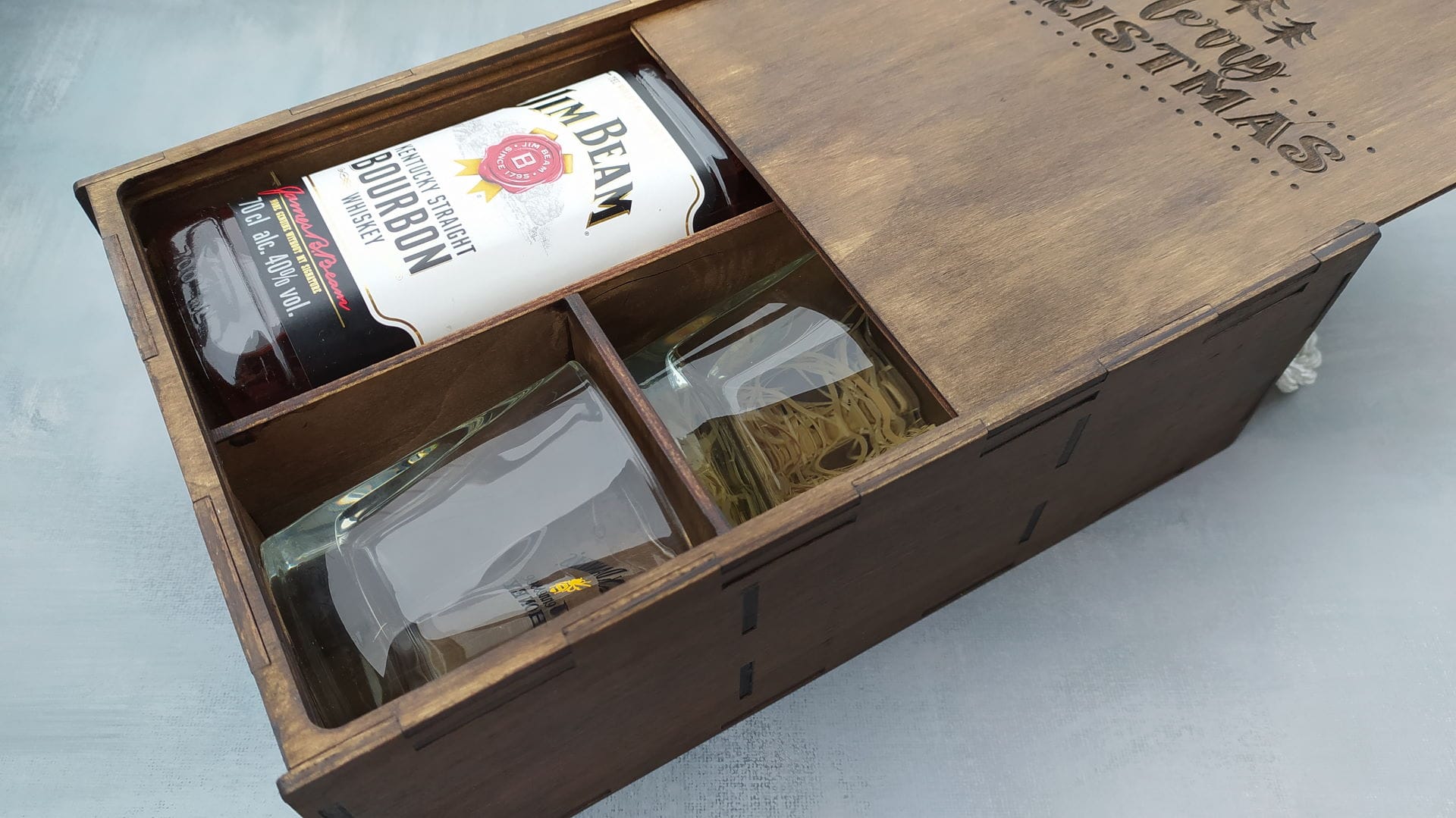

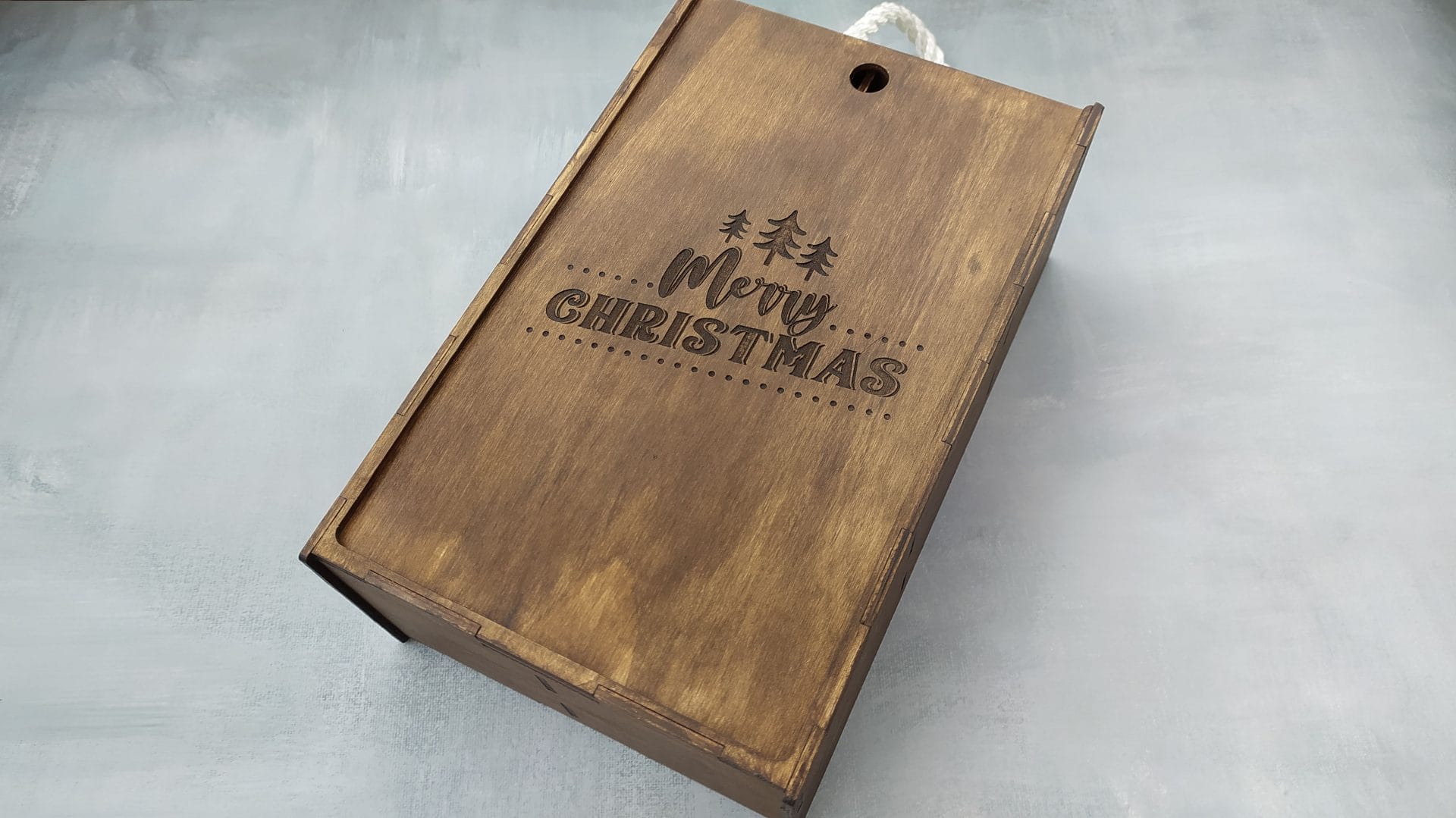

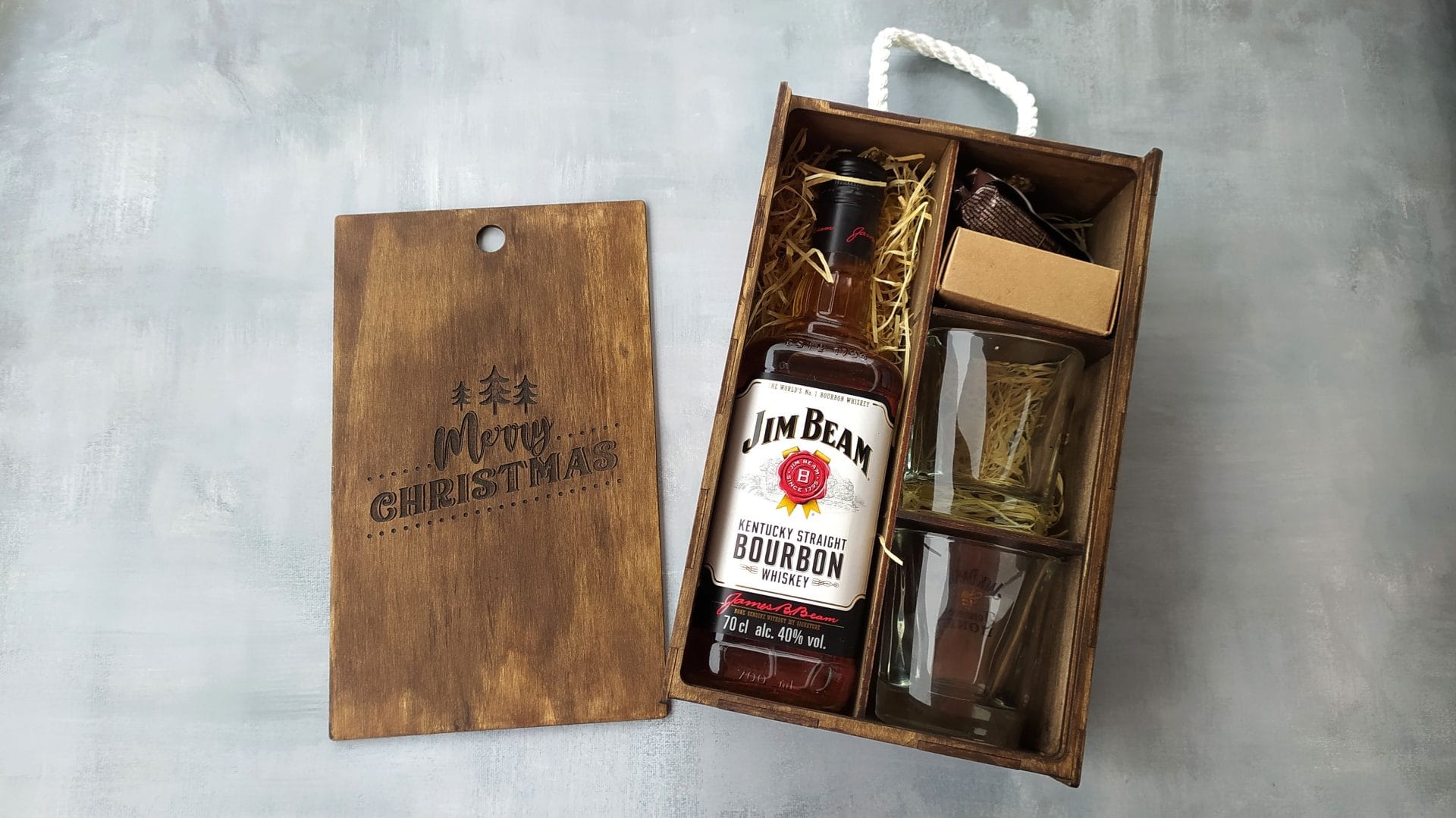

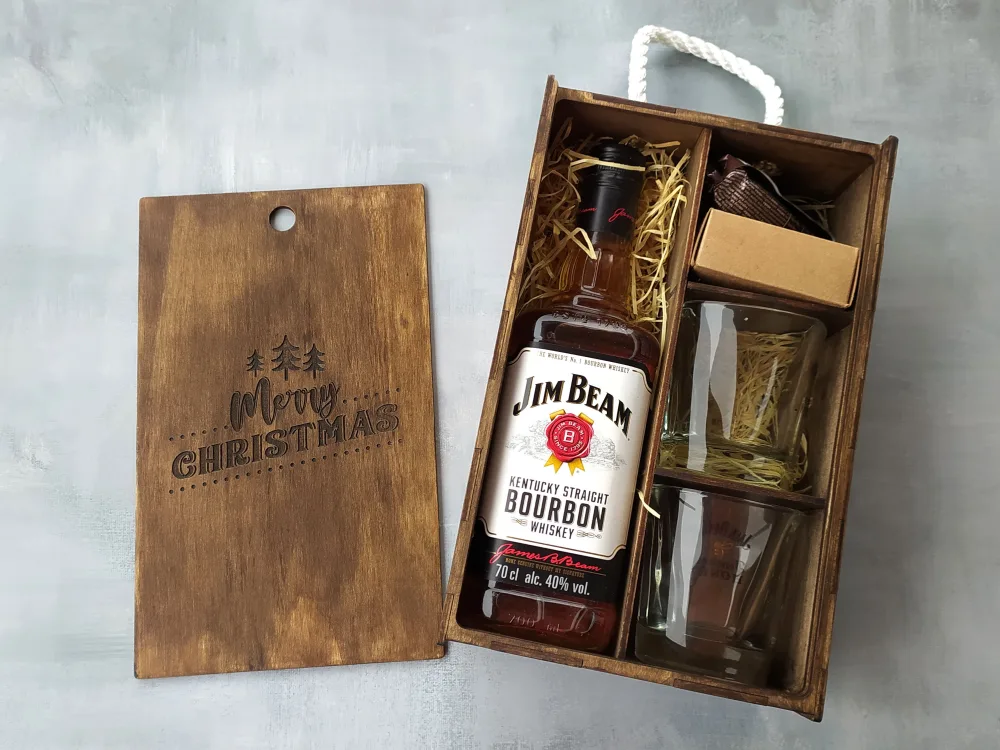

Large gift box for 0.7-0.75L bottle. Suitable for laser machines with a small working area from 300x200mm. For manufacturing, you will need 5 A4 sheets of material or 2.5 sheets of A3 format.

Be careful, there are fragile parts in the design (lid frame). After installation and assembly, everything will be very solid and reliable. I also recommend using glue for assembly, as the volume of the box is large and the bottles are heavy, this will add strength.

You will need a piece of rope for the handle. The holes for the rope can be changed to the desired diameter in any vector editor. By default this is 5mm – 8mm.

length: 173mm / 6.81″ (internal)
width: 85mm / 3.24″ (internal)
height: 270mm / 10.62″ (internal)

bottle section: 85x85x270mm / 3.24″x3.24″x10.62″
glass section: 100x85x85mm / 3.93″x3.24″x3.24″
top right section: 85x85x70mm / 3.24″x3.24″x2.75″

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm, 6mm, 1/4inch (6.35mm)
digital product includes: CDR, SVG, DXF, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
