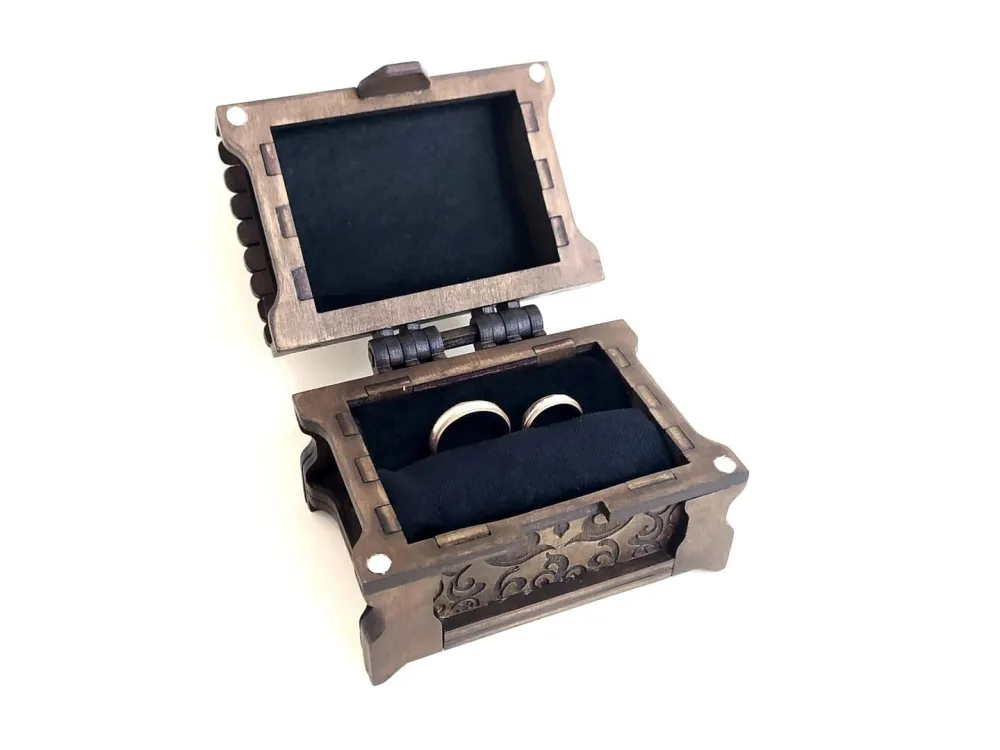

Box 080421. Digital files for manufacturing products on a CNC laser machine.

Engraving and cutting takes approximately 30 minutes. It is assembled very simply. There may be a problem with the hinge pin, just use sandpaper, it fits quite tightly. All parts fit on a sheet of material the size of a4 office paper. The inner insert was not added to the file, I made it from regular foam and a piece of black cloth.

length: 74mm / 2.91″ (internal)
width: 54mm / 2.12″ (internal)
height: 40mm / 1.57″ (internal)

For a magnetic lock, you need 4 magnets with a diameter of 5mm/0.2″. The thickness of the magnet 1mm. The diameter of the magnets can be corrected in any vector editor (for example, free Inkscape).

kerf (cut compensation): 0.15mm and 0mm
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 4mm, 4.5mm, 5mm
digital product includes CDR, SVG, PDF, AI files.

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
