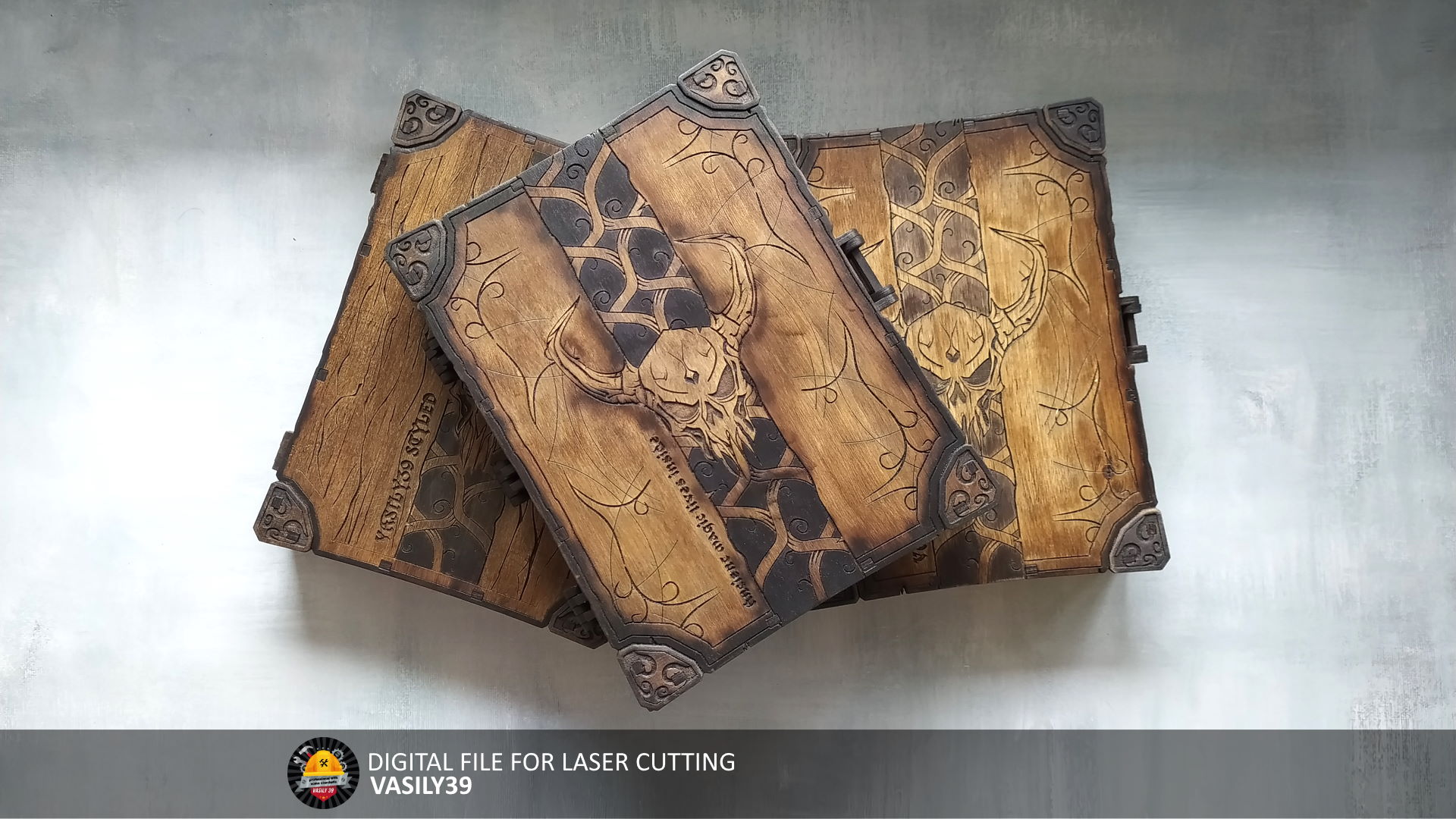

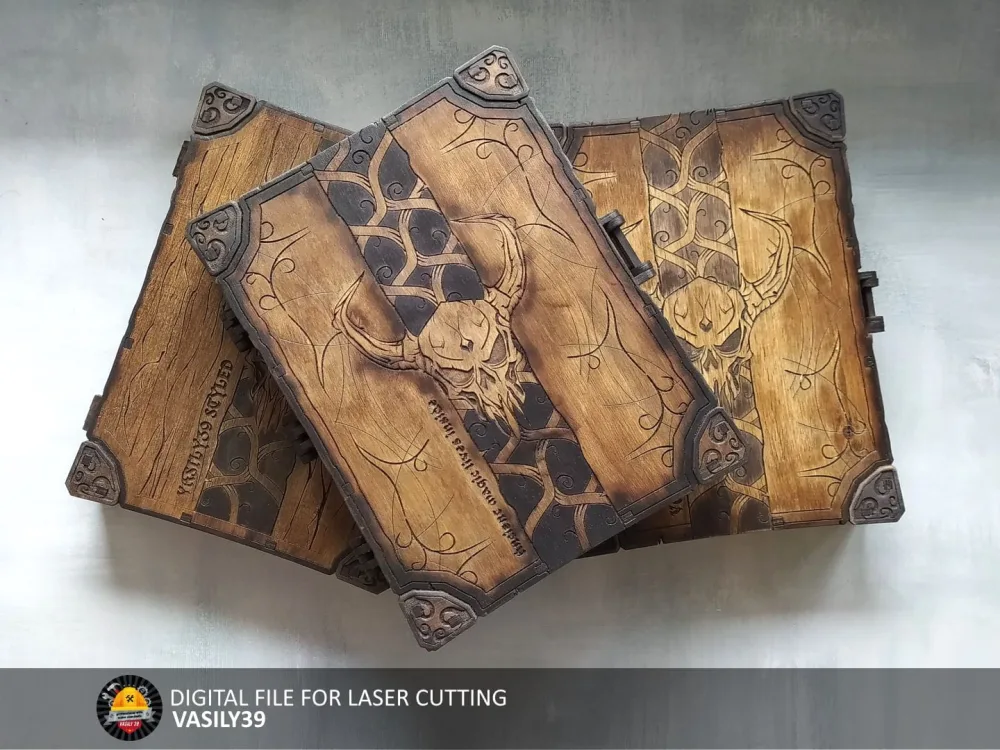

Book box 00140. Digital files for manufacturing products on a CNC laser machine.

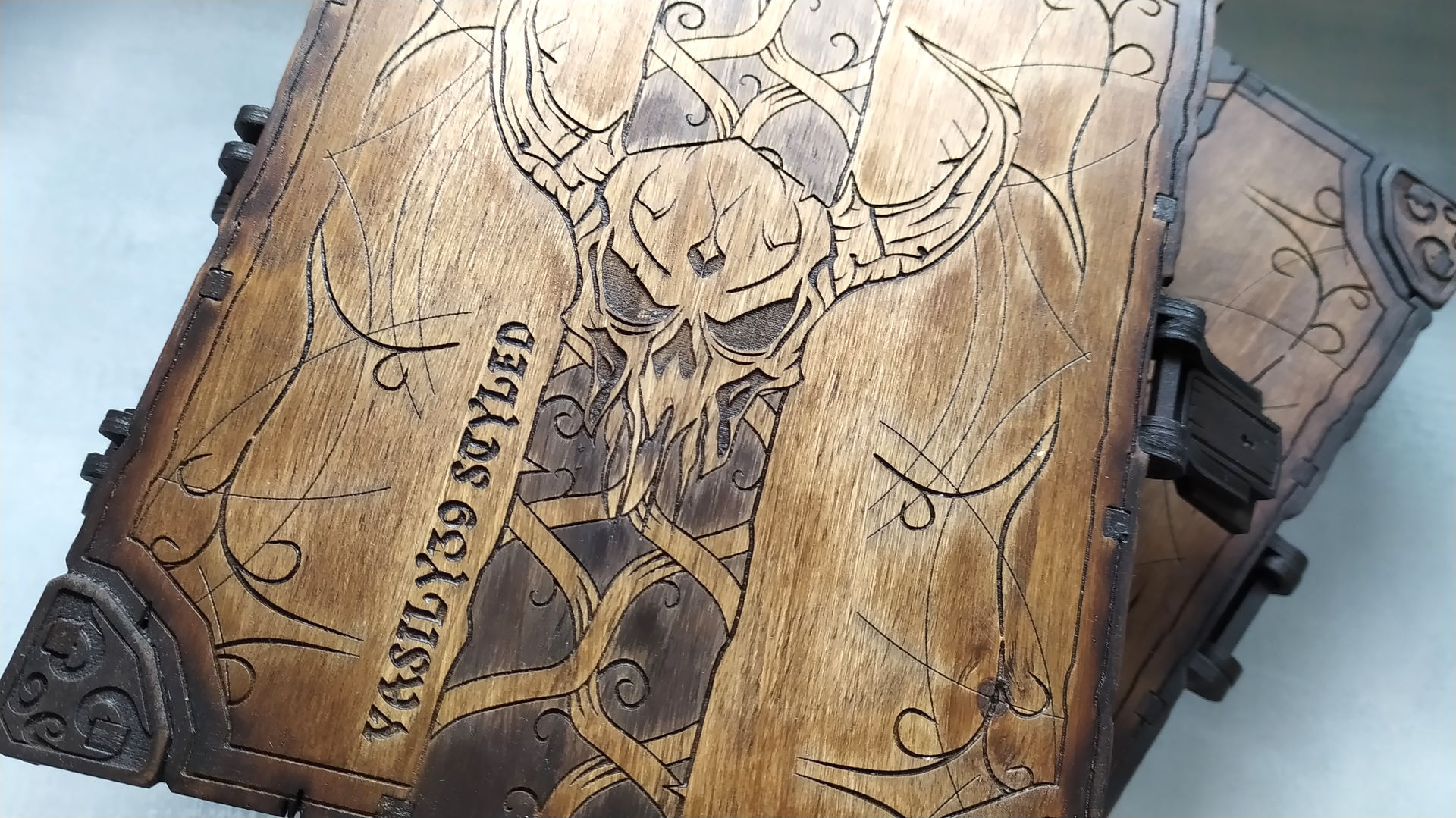

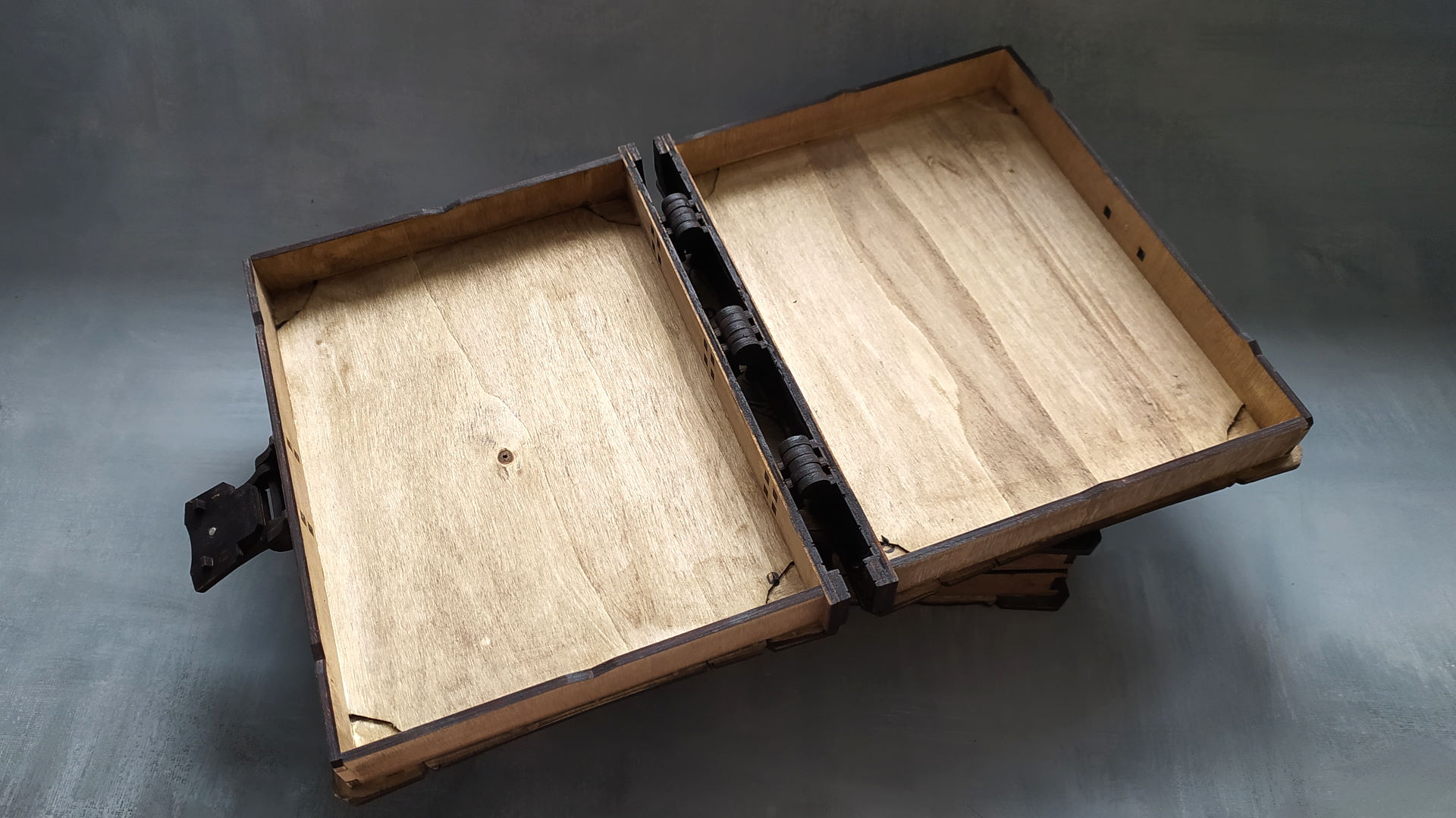

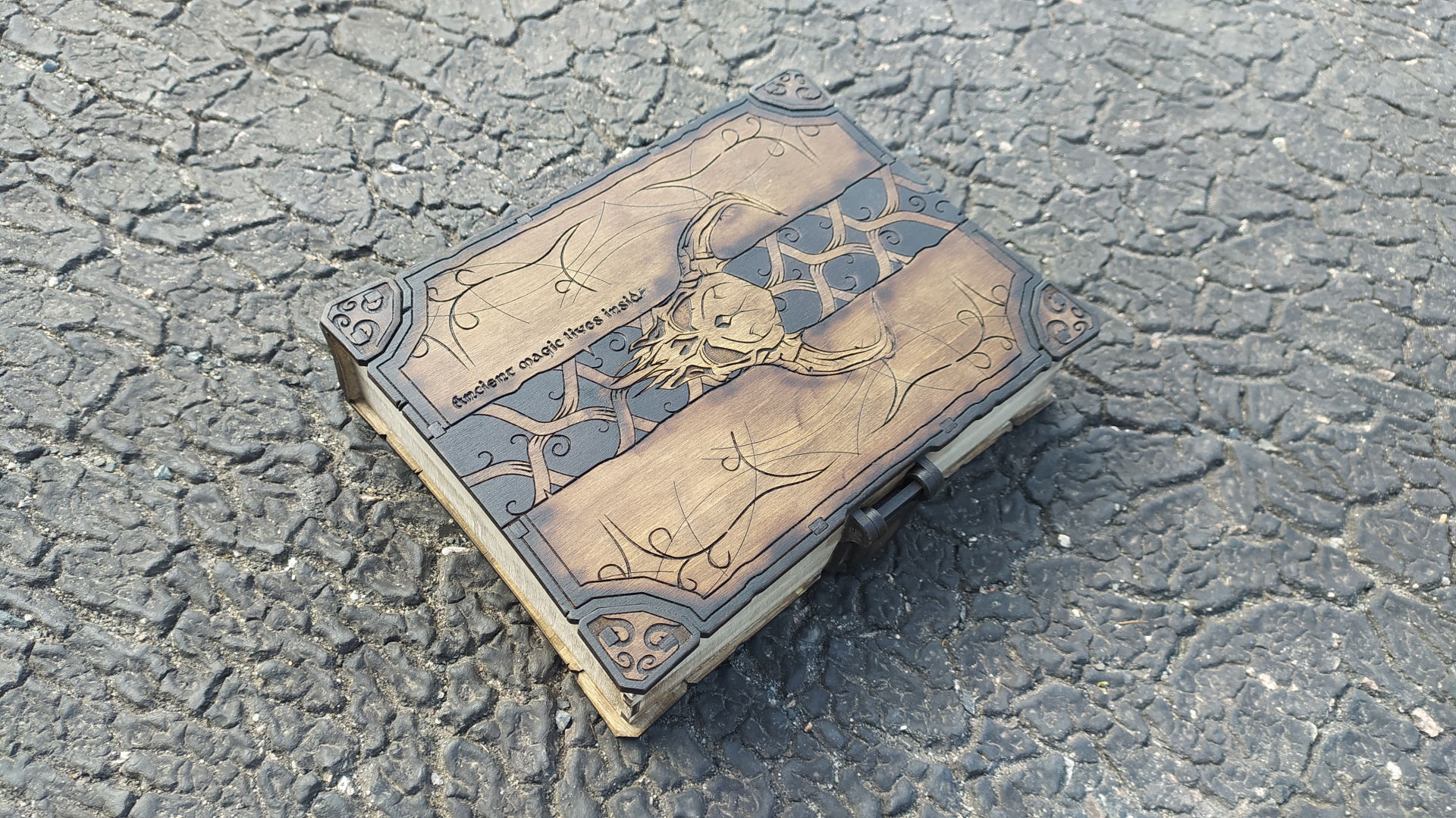

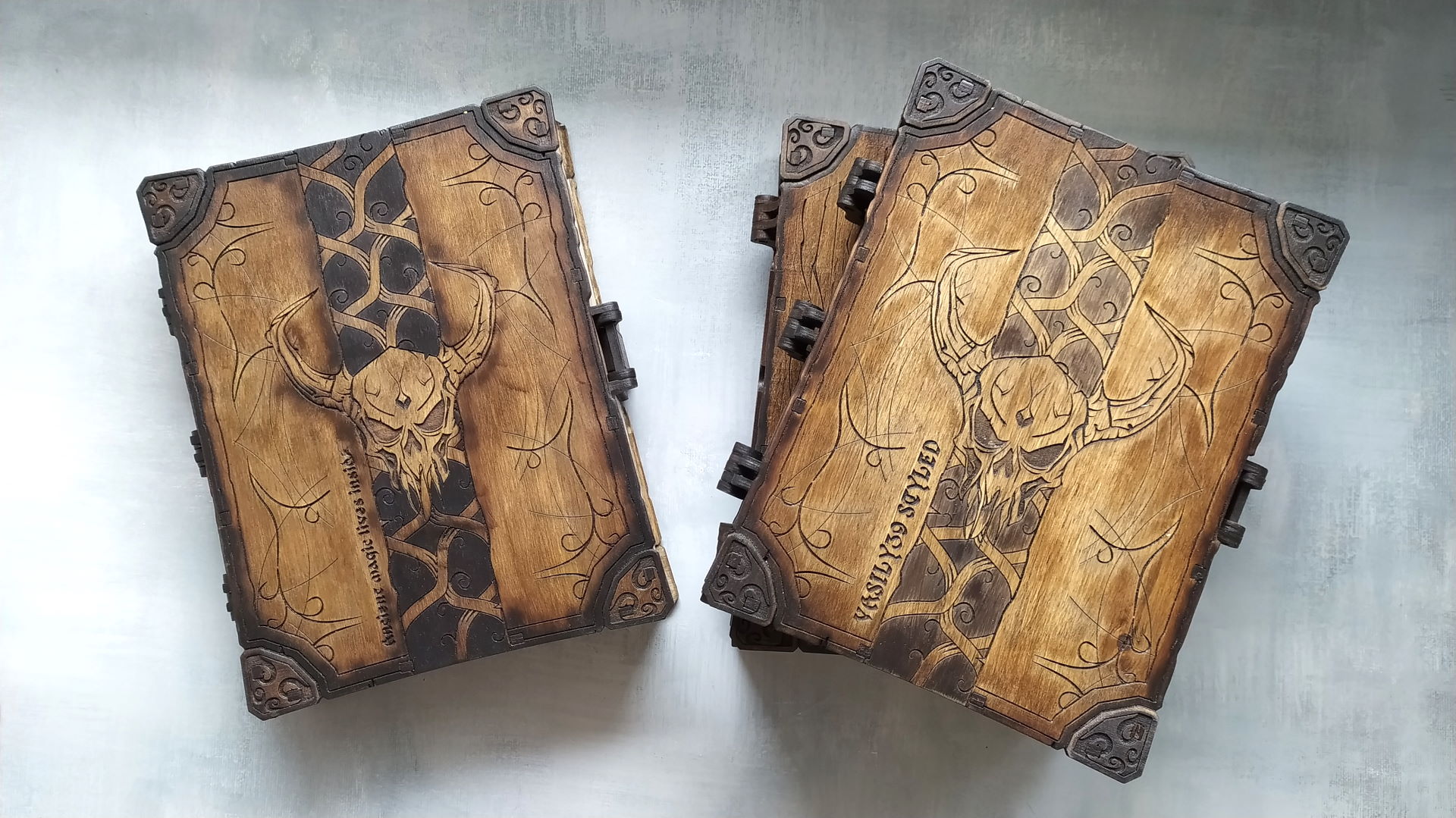

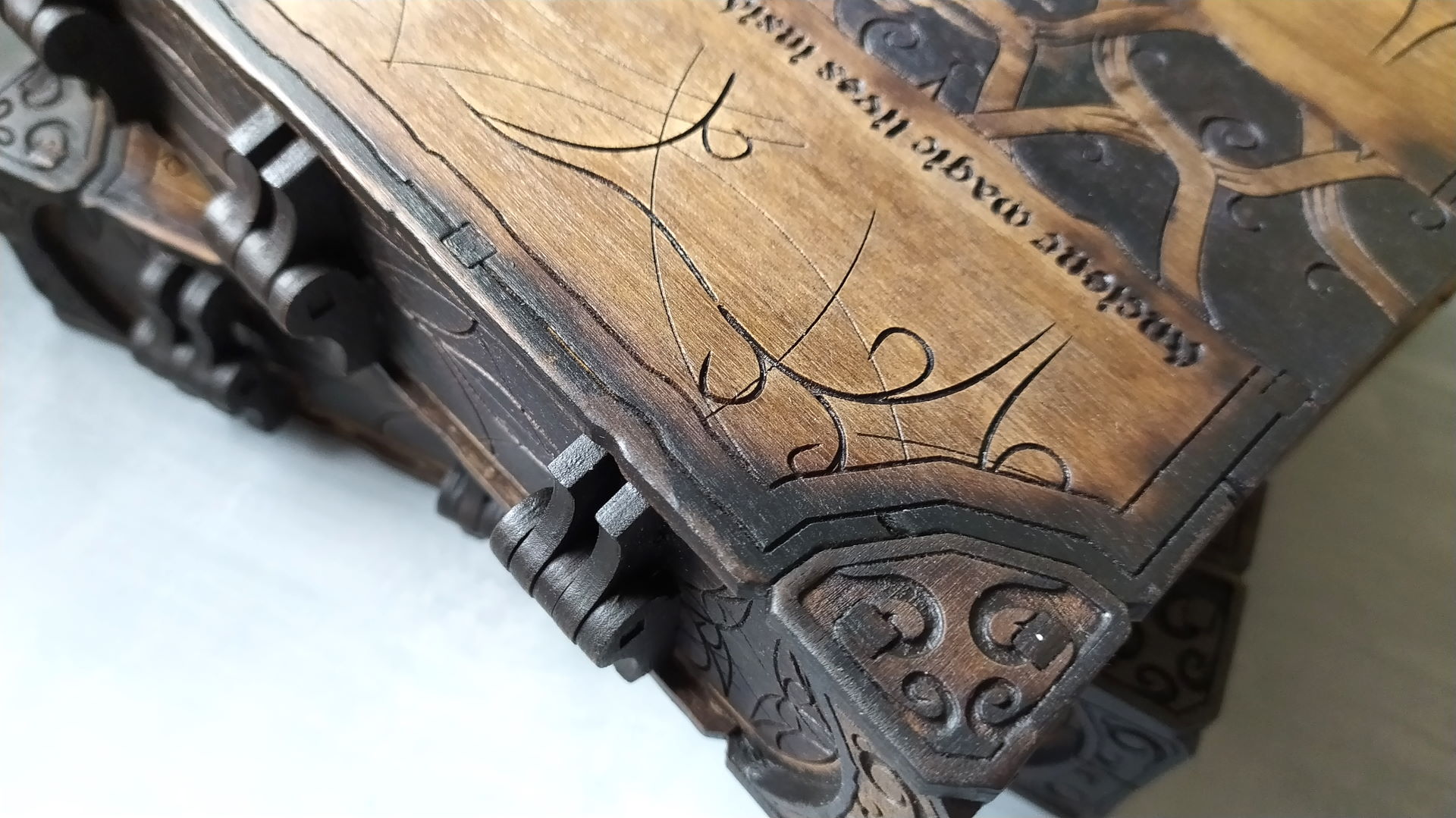

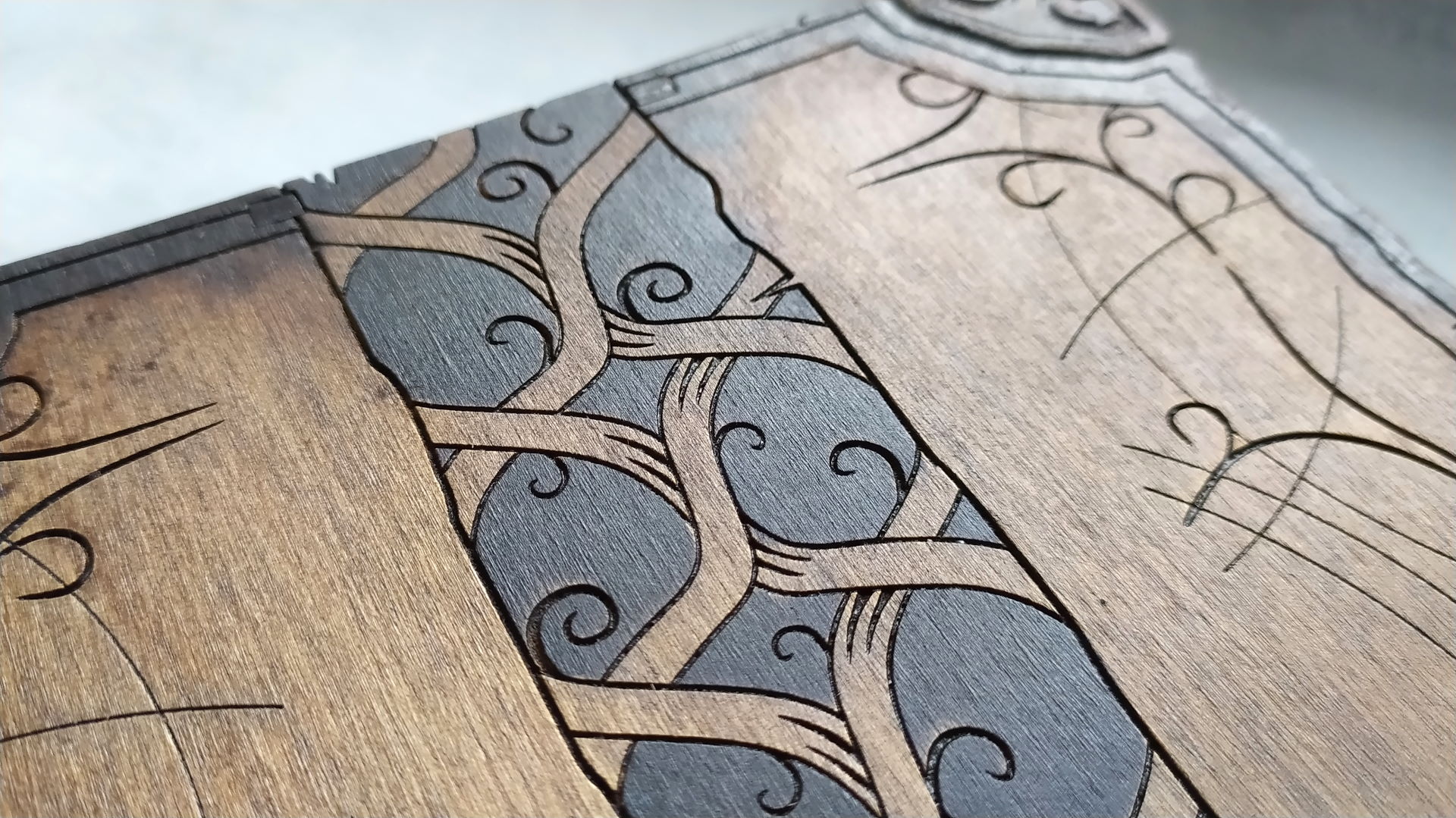

Book box with magnetic locks. There are 2 versions in the set: clean and engraved. The internal space without protruding parts is even, rectangular. The book opens into 2 equal parts. The cover is easy to modify, add your own text, your logo, etc. The top and bottom covers are exactly the same but mirrored. The book fits completely on one sheet of material 500 by 300mm. Minimum number of parts, magnetic lock. Everything is made of wood except for 2 magnets 3x3mm (optional).
length: 150mm / 5.9" (internal)
width: 200mm / 7.87" (internal)
height: 40mm / 1.57" (internal)

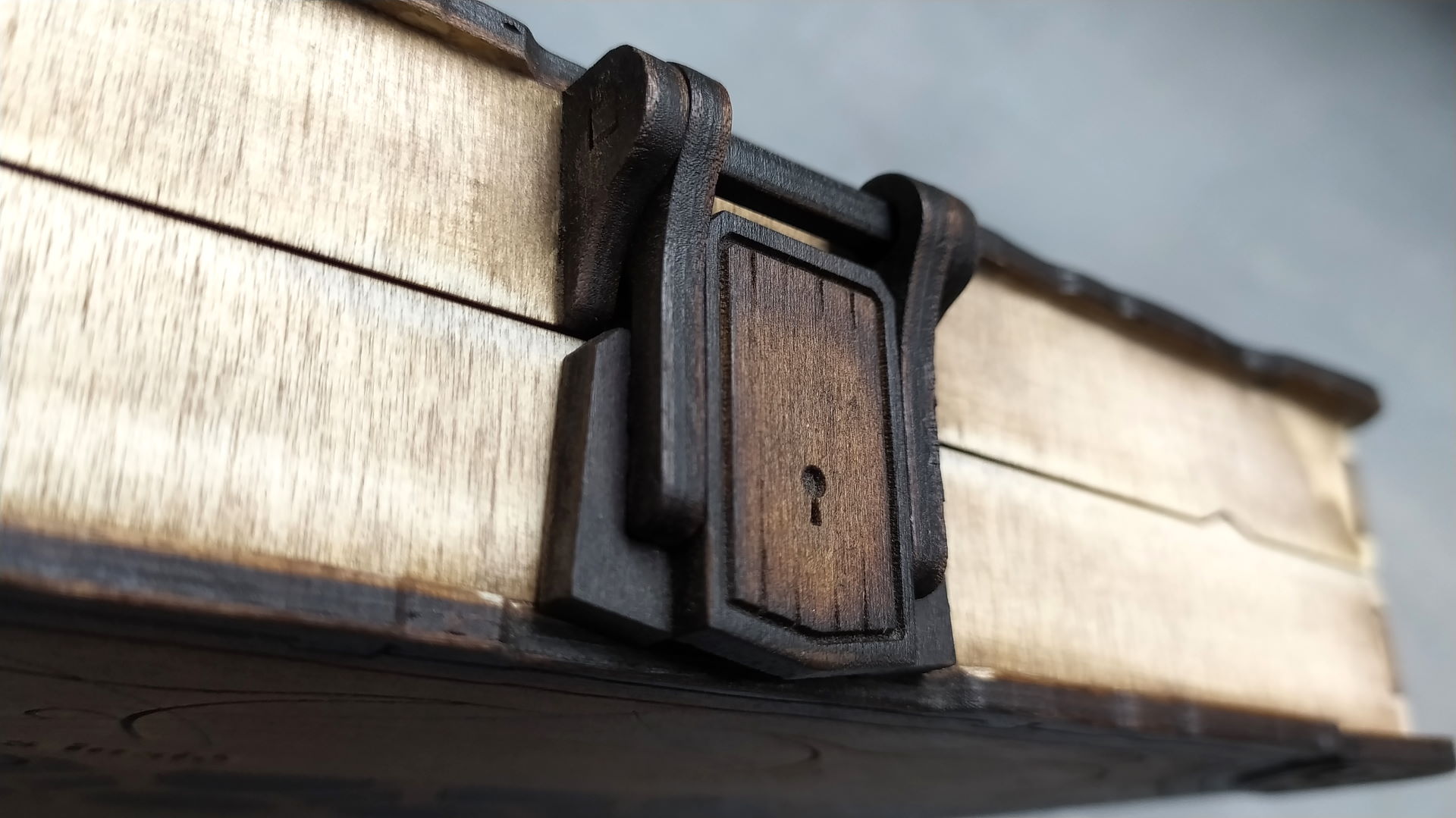

For a magnetic lock, you need 2 magints with a diameter of 3mm/0.12". The thickness of the magnet must not exceed the thickness of the material. The diameter of the magnets can be corrected in any vector editor (for example, free inkscape).
kerf (cut compensation): 0.15mm
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm
digital product includes: CDR, SVG, PDF, AI
Attention:
This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
