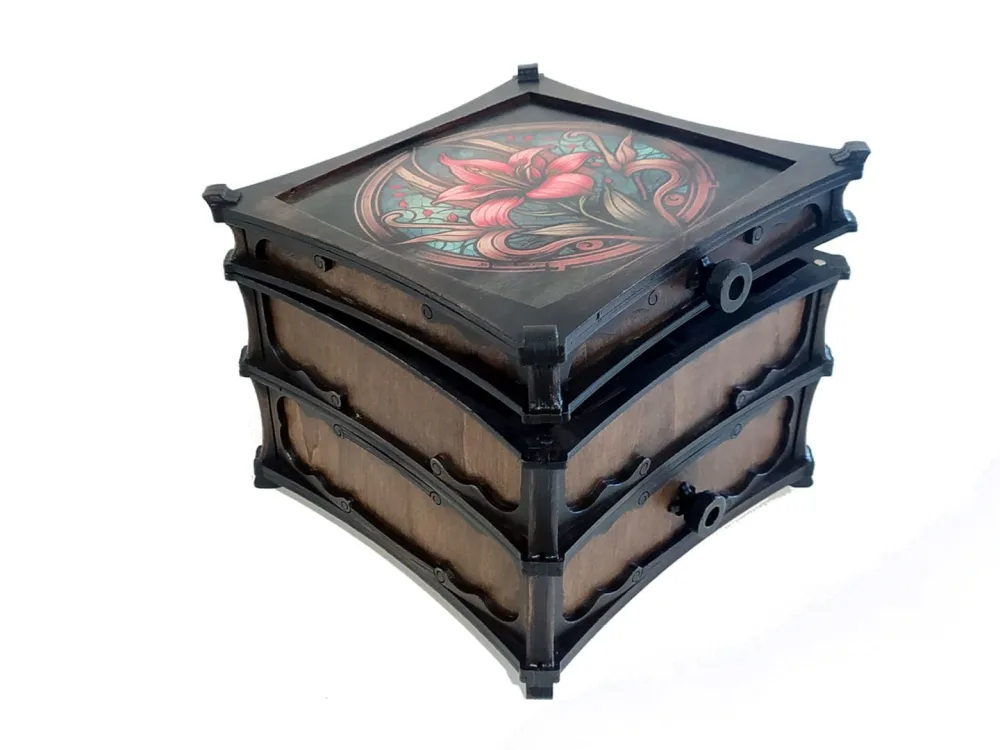

Chest of drawers 00128. Digital files for manufacturing products on a CNC laser machine.
Very strong and durable chest. Drawer. 2 inner inserts for the top of the chest. Can be used to store jewelry, board games, etc.
!!! VERY IMPORTANT: the thickness of the material must not exceed
the thickness of the material specified in the file. Otherwise,
there will be assembly problems.
drawer size:
length: 164mm / 6.45" (inner)
width: 164mm / 6.45" (inner)
height: 50mm / 1.96" (inner)
box size:
length: 173mm / 6.81" (inner)
width: 173mm / 6.81" (inner)
height: 70mm / 2.75" (inner) - base 46mm + lid 23mm / base 1.81" + lid 0.9"
outter size:
length: 212mm / 8.34" (inner)
width: 212mm / 8.34" (inner)
height: 161mm / 6.33" (inner)
For magnetic lock (optional): 4 magnets 3x1mm. You can change the size in any vector editor.
Engraving depth for magnets should be equal to the thickness of the magnet.
kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8" (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm
digital product includes: CDR, SVG, PDF, AI
---------------------------------------------------
Lid picture:
Transferred by sublimation. You need a sublimation printer + thermopress.
Apply a little clear acrylic varnish to the plywood. Transfer the picture
for 90 seconds at 180 degrees Celsius, medium pressure. After heating,
the plywood may deform - after assembly, this problem will disappear.
Painting: 1. Cover with black stain all parts that should be dark.
2. Assemble the box. 3. Process with a sandpaper.
4. Azure or stain rosewood 2-3 layers. 5. Varnish.
total parts: 108
largest part size: 211x211mm / 8.3x8.3"
material quantity 7 sheets a3 size (290x420mm)
---------------------------------------------------
Attention:
This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
