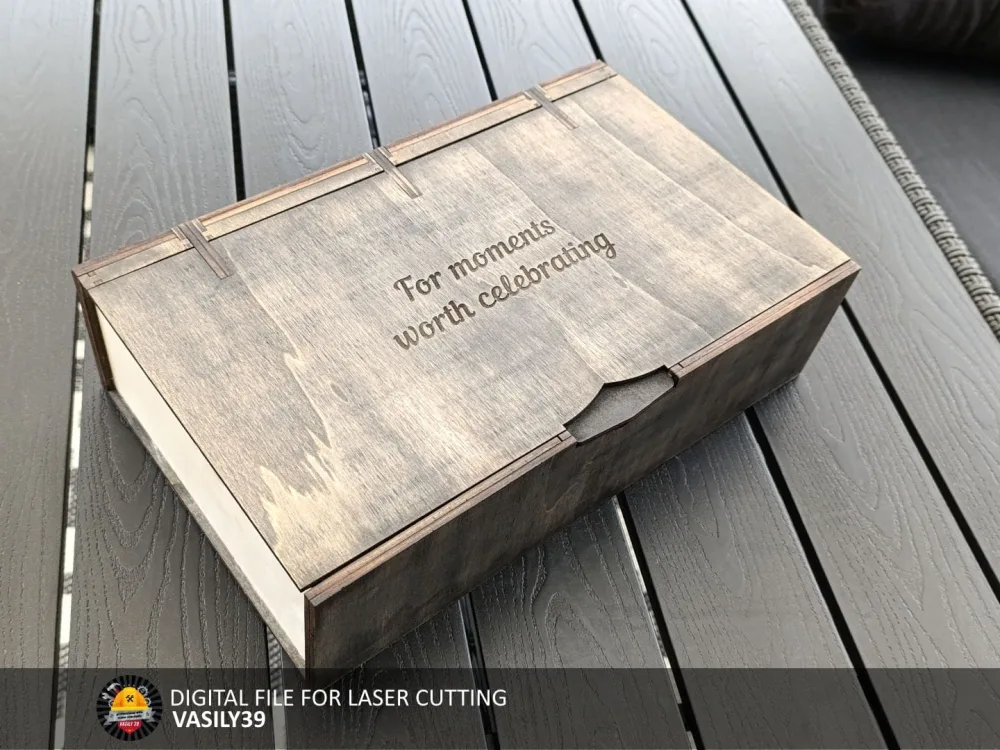

Wine box 00203

Wine box 00203. Digital files for manufacturing products on a CNC laser machine.

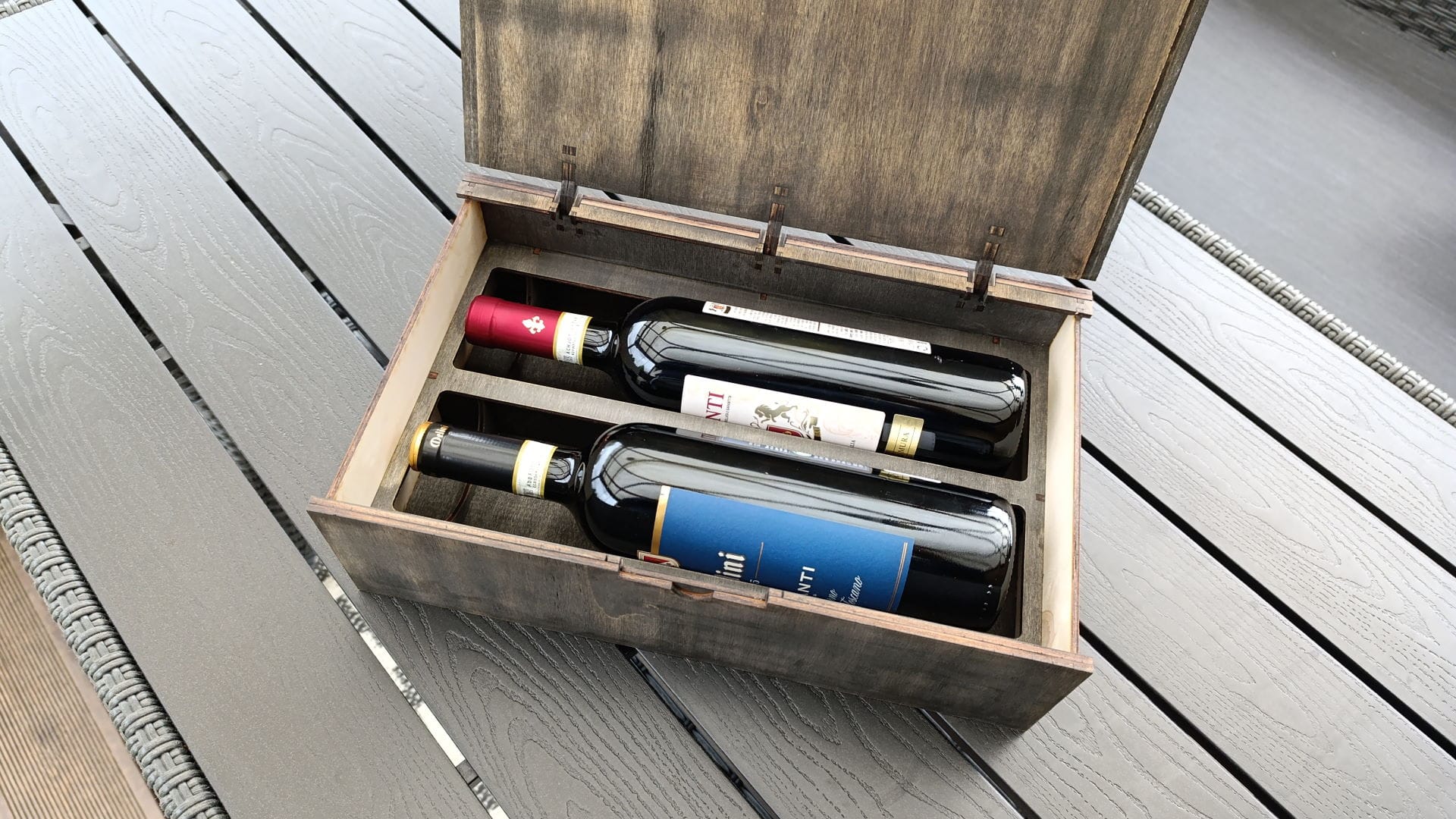

For two bottles up to 330mm high and diameter up to 77mm. I hid all the connections as far as possible. The entire project is 100% laser-cut, including the lock. To make it you will need a little glue and wax.

Largest part size 370x220mm of 14.56×8.66″ This project is not suitable for machines with a small working area. The minimum working field of the machine should be 400 by 250 mm or 15 by 10 inches.

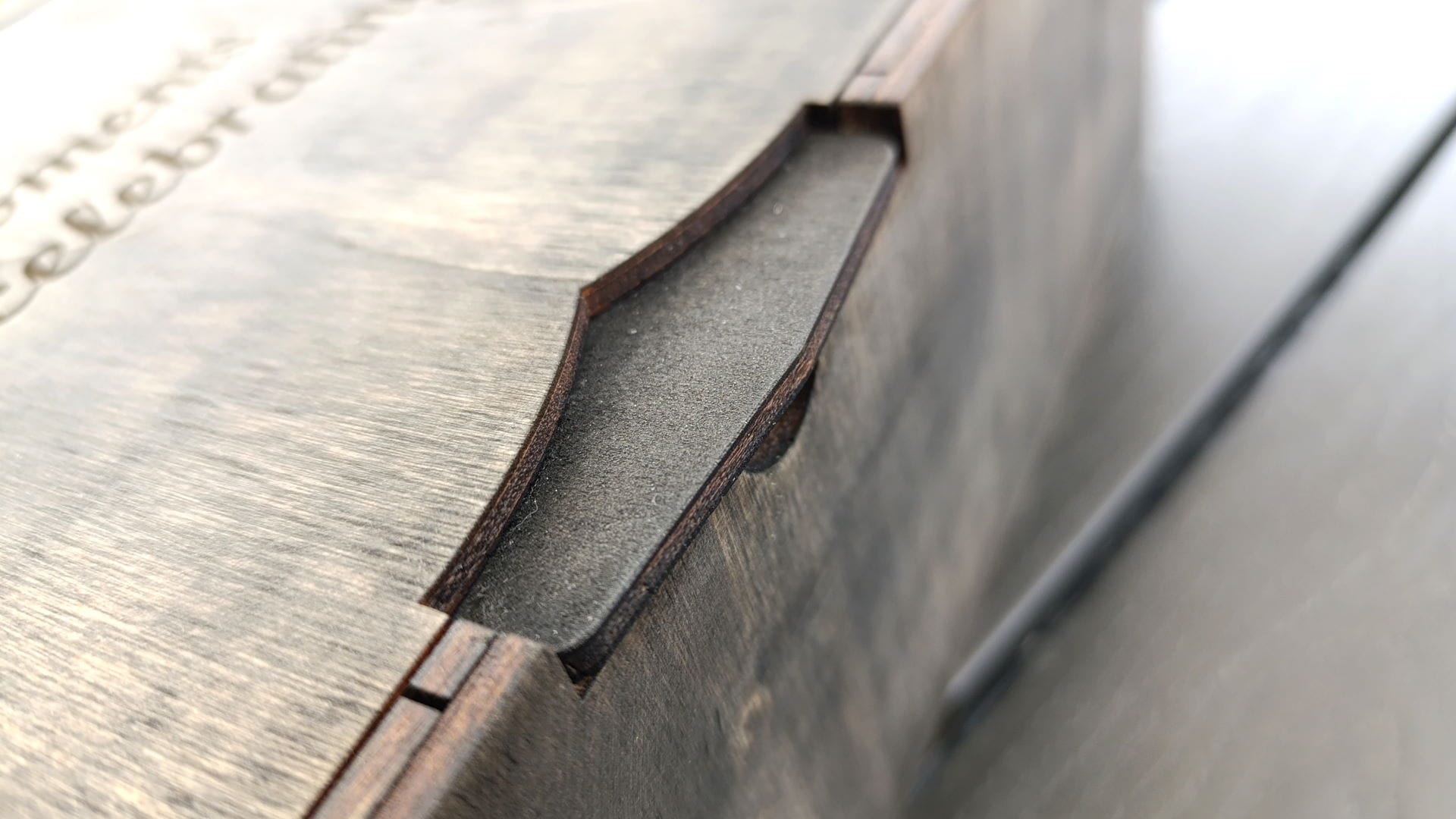

Be sure to follow the direction of the fibers indicated in the file on the part with the lock. For the lock to function properly, you must use wax or paraffin (any candle will do). You will also need wood glue for assembly.

length: 350mm / 13.77″ (internal)
width: 210mm / 8.26″ (internal)
height: 87mm / 3.42″ (internal)

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 3.8mm, 4mm, 4.5mm, 5mm
digital product includes: CDR, SVG, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
