Lamp w001. Digital files for manufacturing products on a LASER MACHINE (Co2 or diode laser).

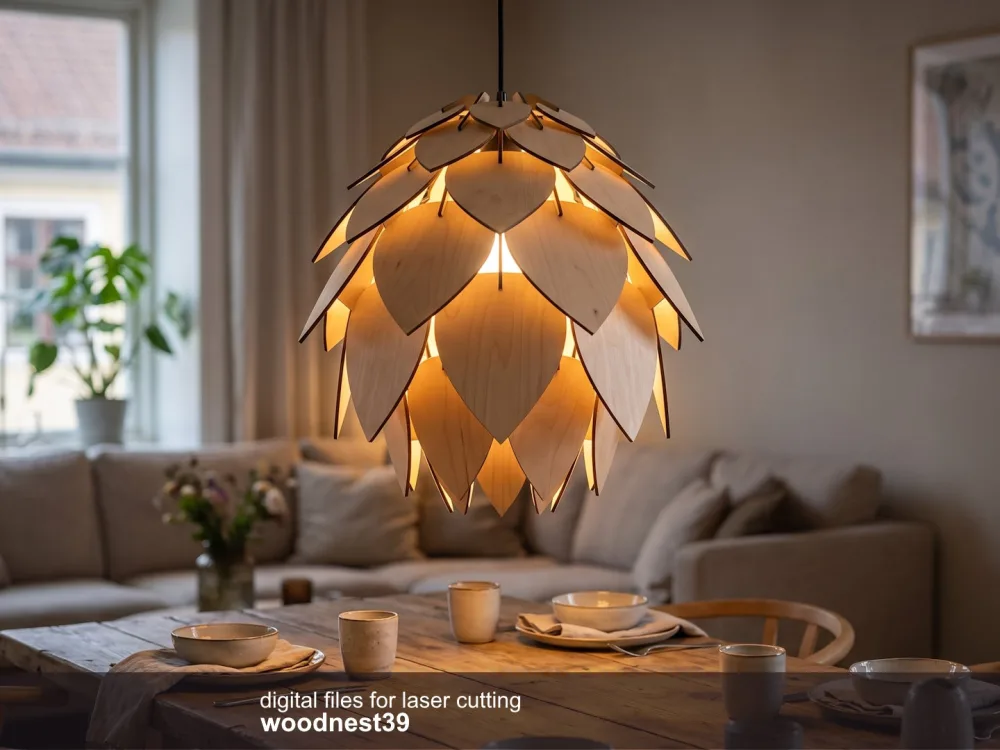

A pendant lamp shade made of 56 overlapping drop-shaped petals in 7 tiers, hooked onto 16 curved ribs and held by 3 rings. All 75 parts slot together, and the ribs and petals are engraved with numbers, so assembly is simple. A
Assembled dimensions:
Height: 380 mm / 14.96"
Diameter: 400 mm / 15.74"
Socket opening: 40 mm / 1.57" (this dimension can be adjusted in any vector editor).
Parts: 75 pcs (3 discs, 16 ribs, 56 petals in 7 tiers). Ribs and petals have engraved numbers for assembly.
Pick the file that matches the REAL thickness of your material (measure it with a caliper).
The slots in every file are exactly the material thickness, with no extra clearance.
If your sheet measures differently (for example 3.1 mm), please write to me and I will make a file for your thickness.
- kerf (cut compensation): 0.15mm and 0
- design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 3.8mm, 4mm, 4.5mm, 5mm
- digital product includes: CDR, SVG, PDF, AI
Attention:
This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
