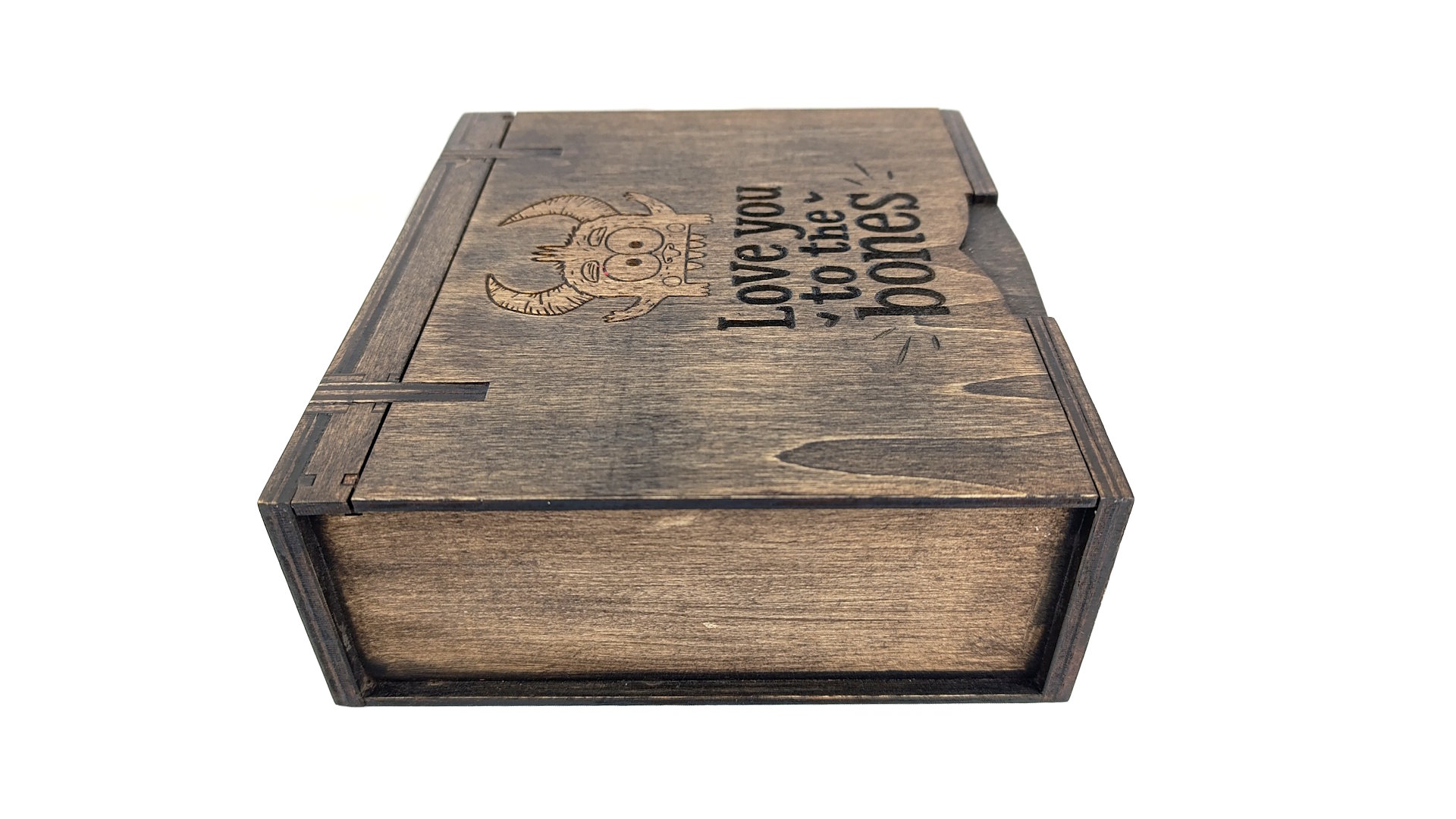

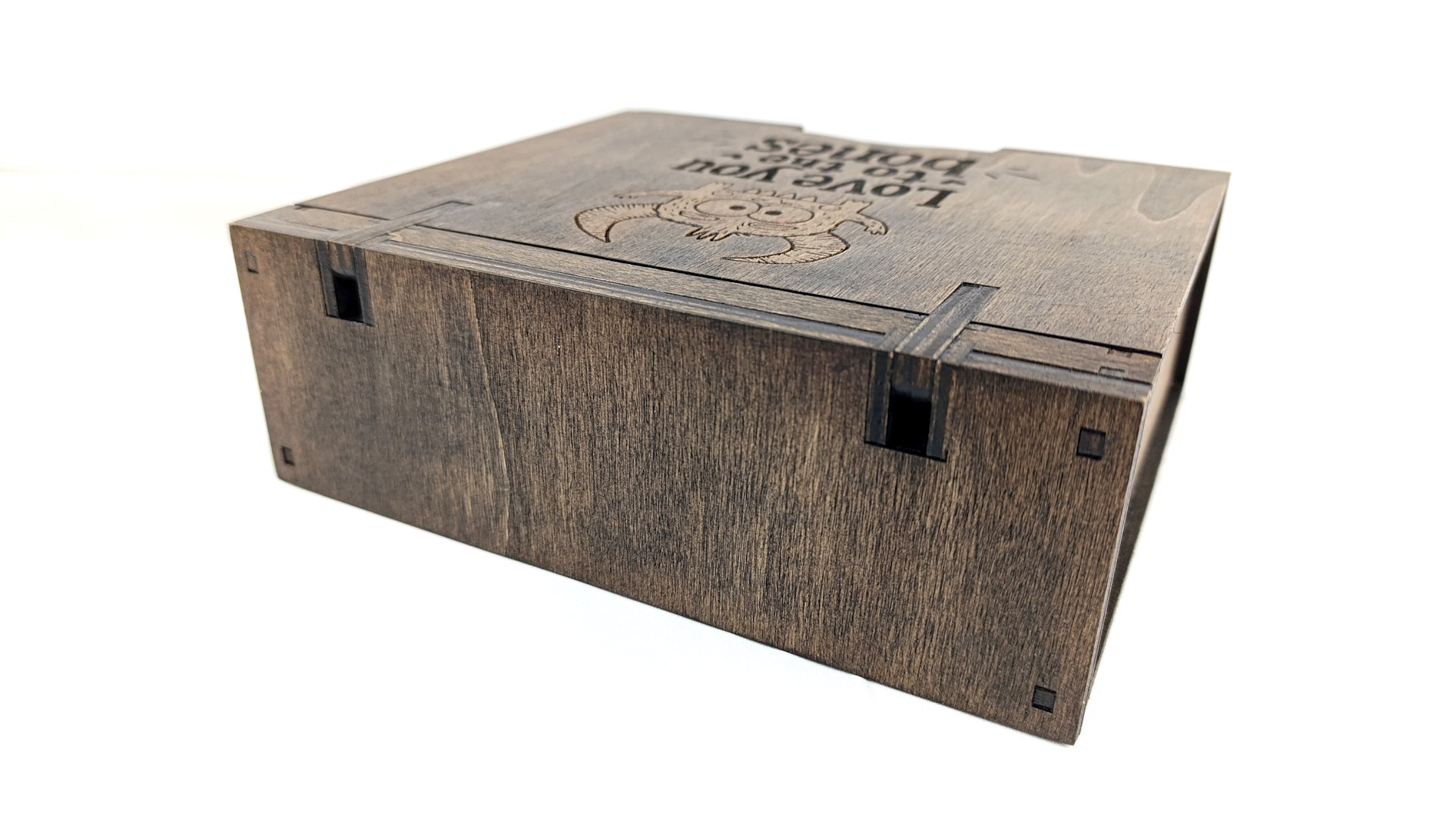

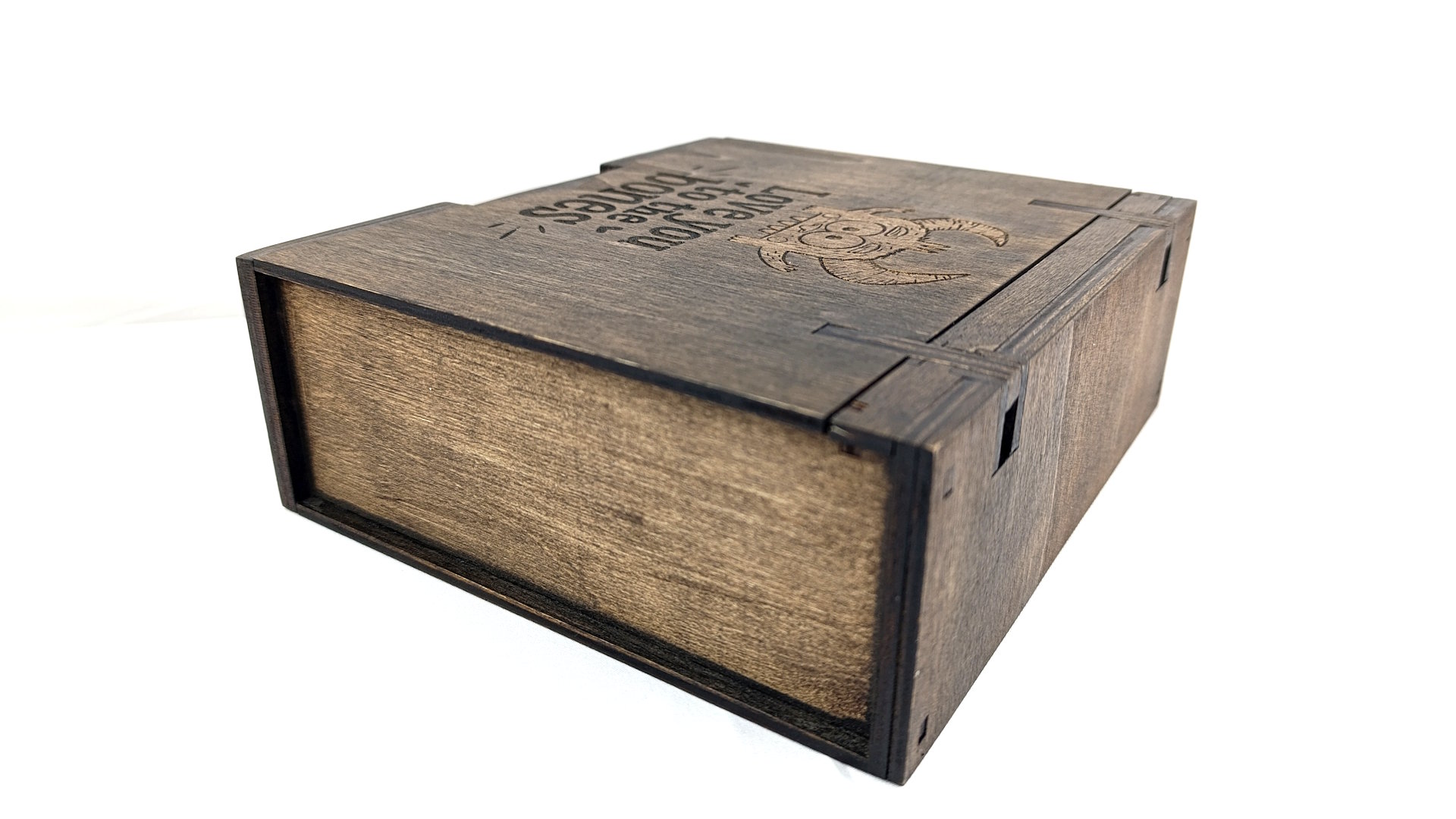

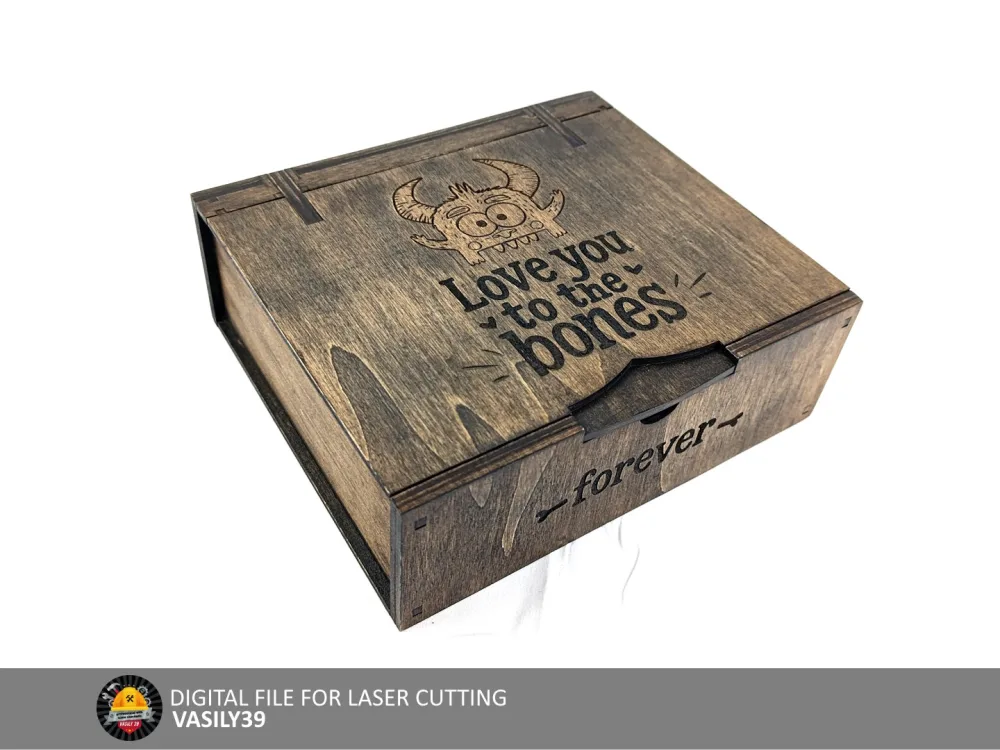

Gift box 00274. Digital files for manufacturing products on a laser machine (co2 or diode laser).
The idea was to create a design that was smooth on the outside and smooth on the inside. I didn't use multi-link hinges, as they don't work well with plywood. Instead, I added a double wall to offset the hinge's center of rotation. It turned out quite well; this box is completely parametric, so I can quickly create any size and material thickness.
- length: 190mm / 7.48" (internal)
- width: 160mm / 6.29" (internal)
- height: 60mm / 2.36" (internal)
kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 3.8mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4inch (6.35mm)
digital product includes: CDR, SVG, PDF, AI
Attention:
This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
