Wine box 00040

Wine box 00040. Digital files for manufacturing products on a CNC laser machine.

Gift box for 750ml wine with an unusual lock. All you need to make is a little plywood, no additional parts (magnets, hinges, locks) are required, the box is completely laser-cut. There are places for engraving on the box. You can also make them transparent – like in my photo.

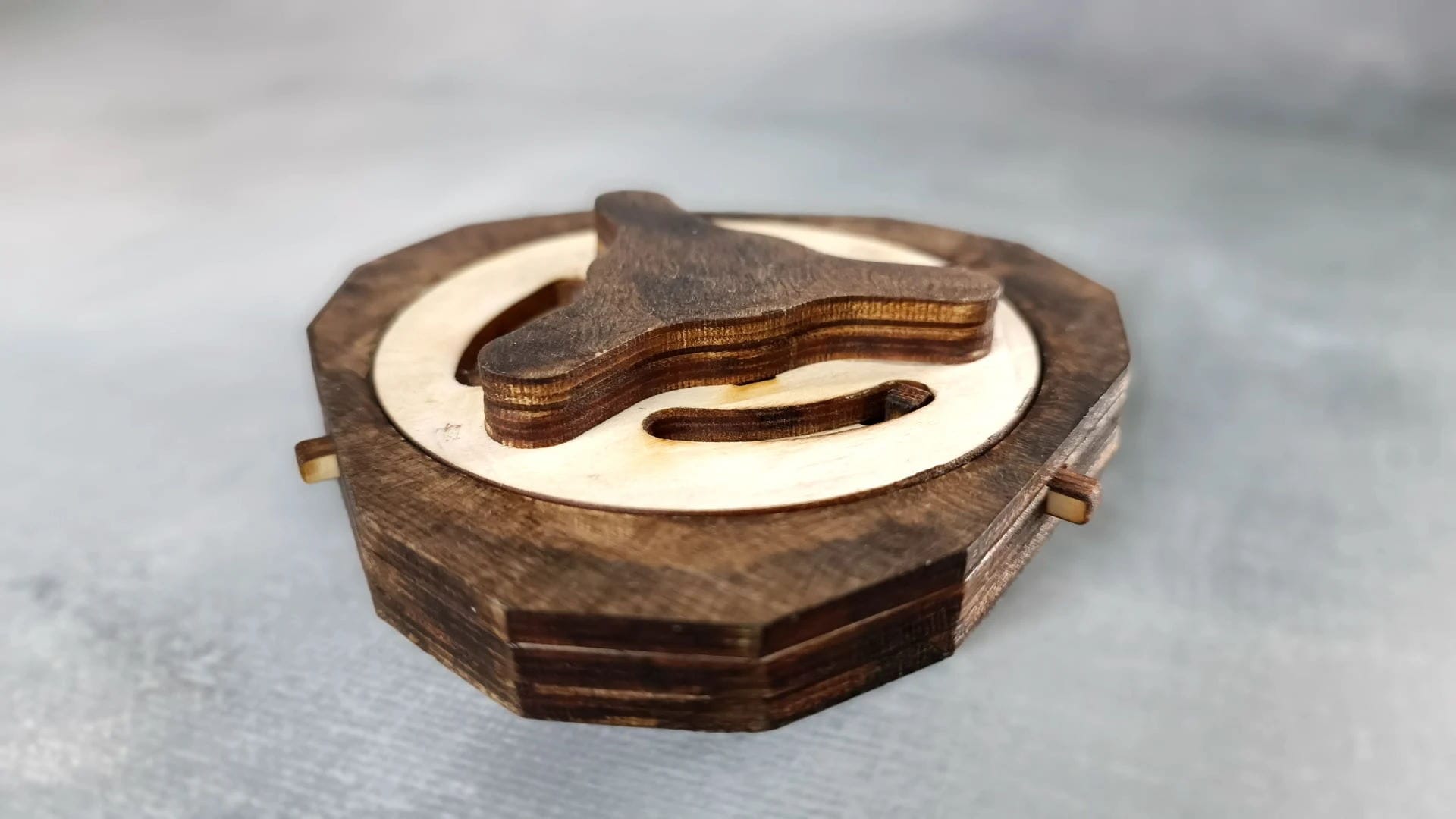

I recommend using wood glue for assembly. The box will hold a large bottle and additional strength is needed. The lock moving parts must be rubbed with paraffin (an ordinary candle will do) – this will increase the sliding of parts inside the lock.

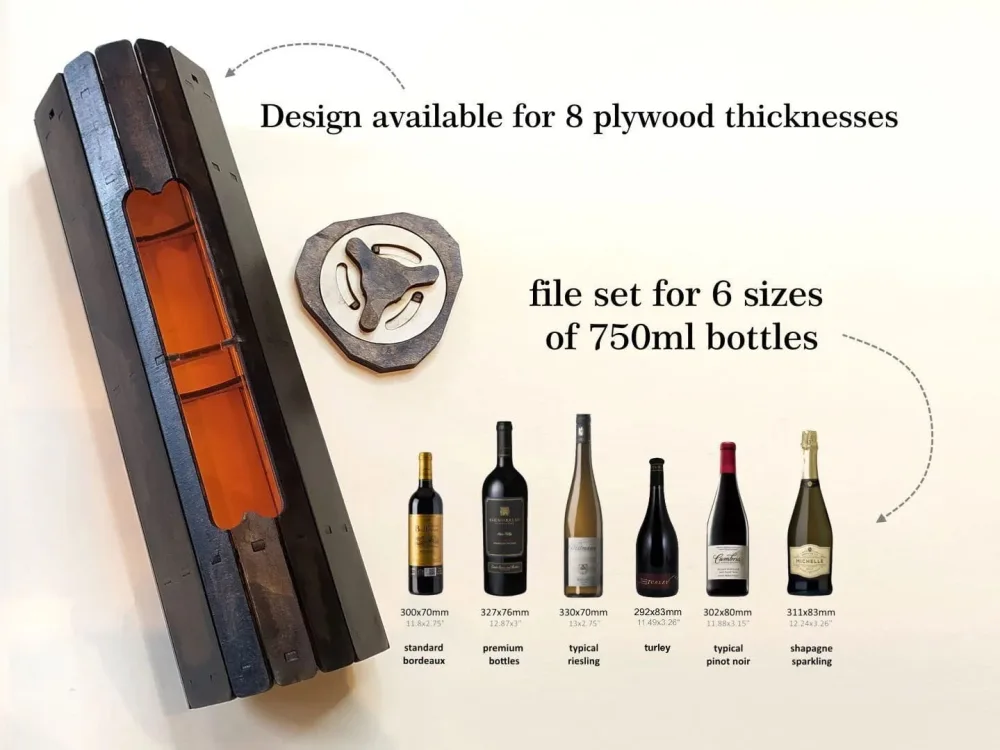

Inner dimensions:
330x70mm or 11.8×2.75″
300x70mm or 13×2.75″
327x76mm or 12.87×3″
302x80mm or 11.88×3.15″
292x83mm or 11.49×3.26″
311x83mm or 12.24×3.26″

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm, 6mm, 1/4inch (6.35mm)
digital product includes: DXF, CDR, SVG, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
