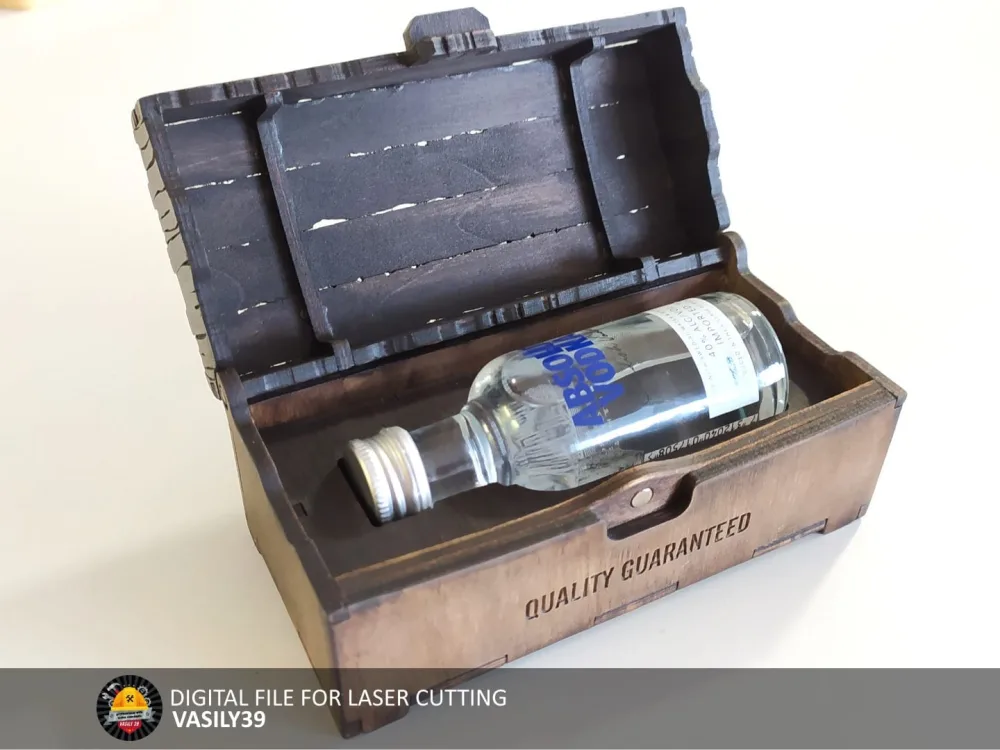

Box for mini bottles 5cl 10924

Box for mini bottles 5cl 10924. Digital files for manufacturing products on a CNC laser machine (co2 or diode laser).

There are 2 versions of bottles in the set so far:

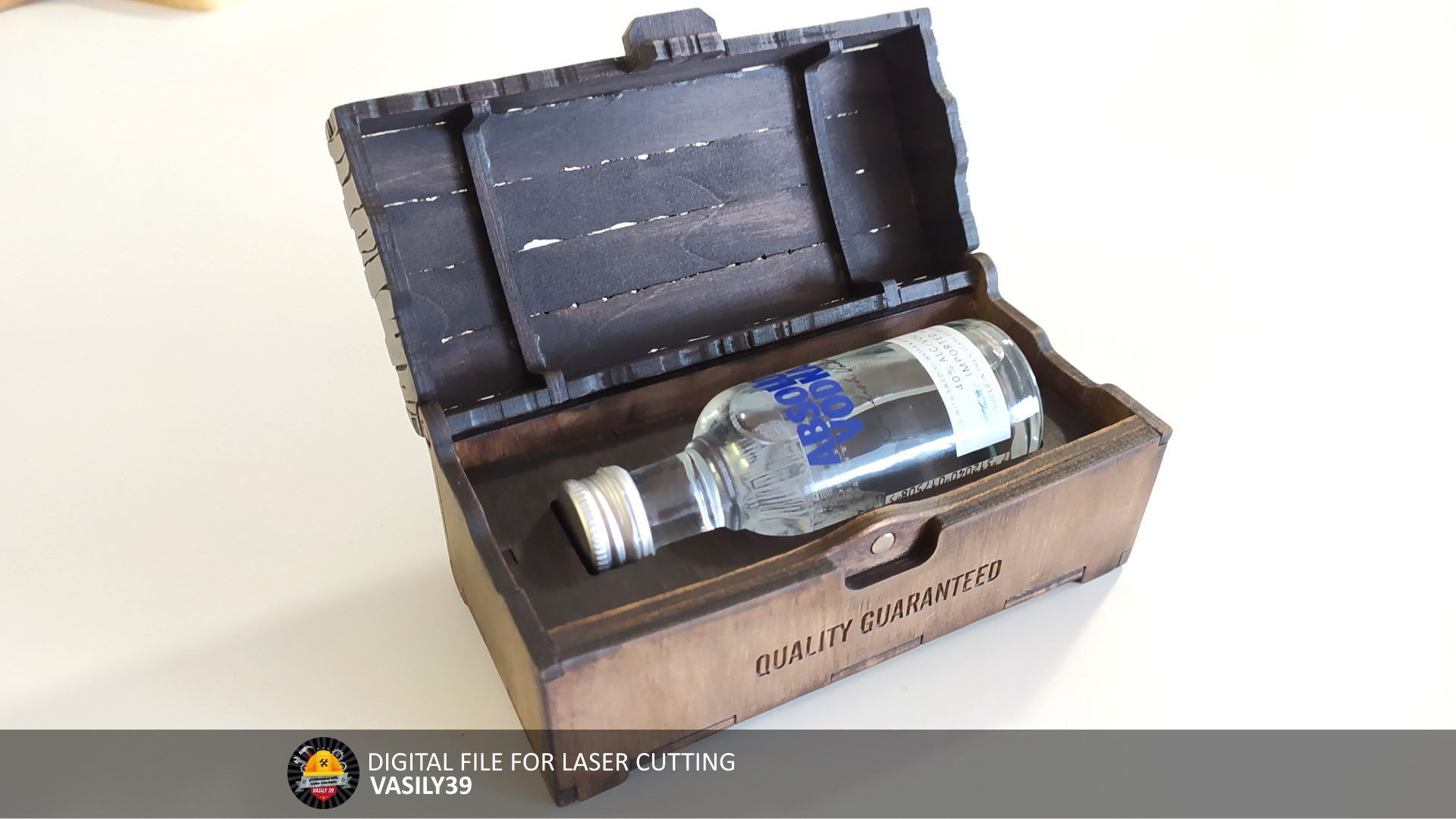

1. Vodka “Absolut” 50ml / 5cl

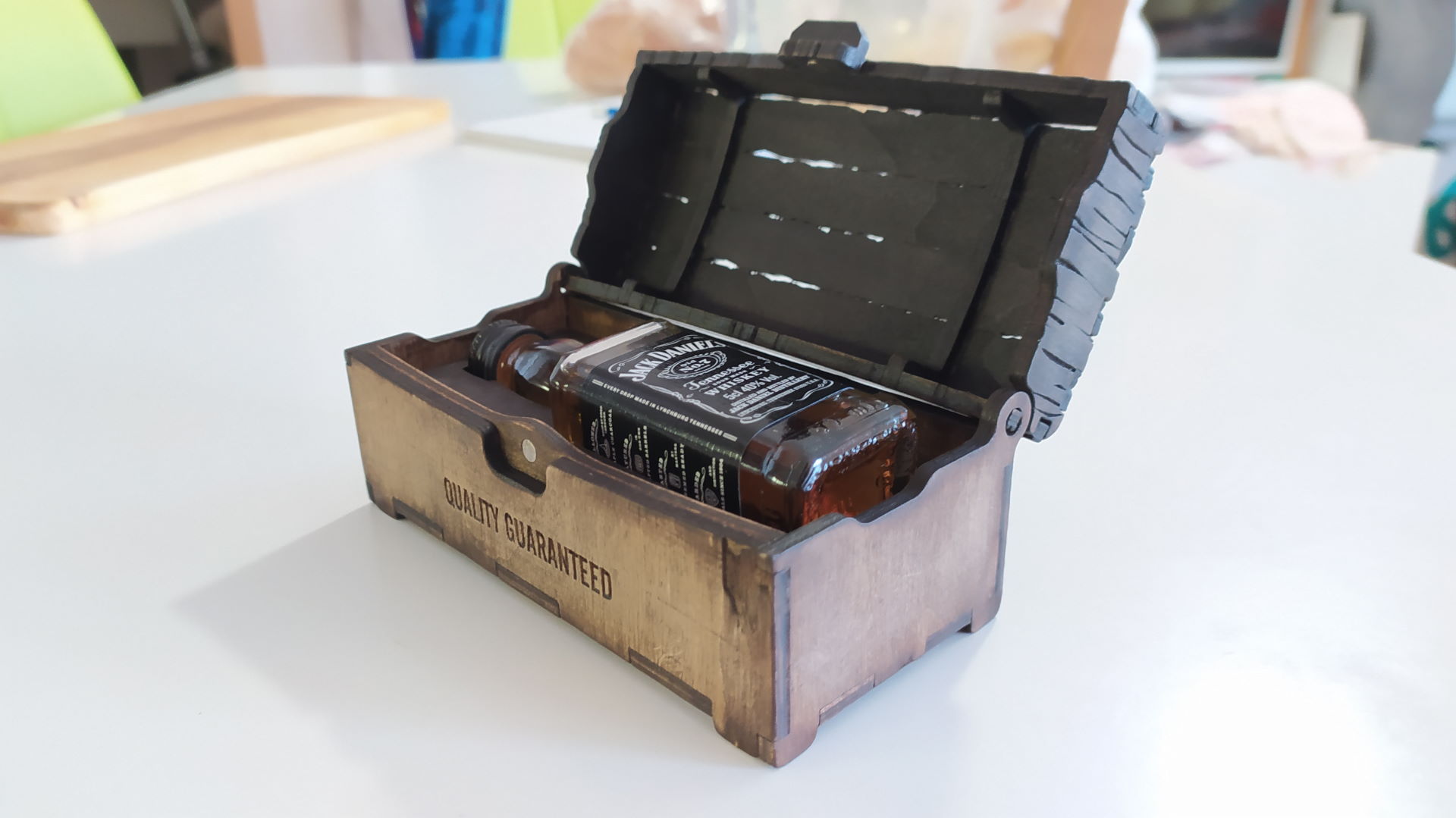

2. Whiskey “Jack Daniels” 50ml / 5cl – European and American

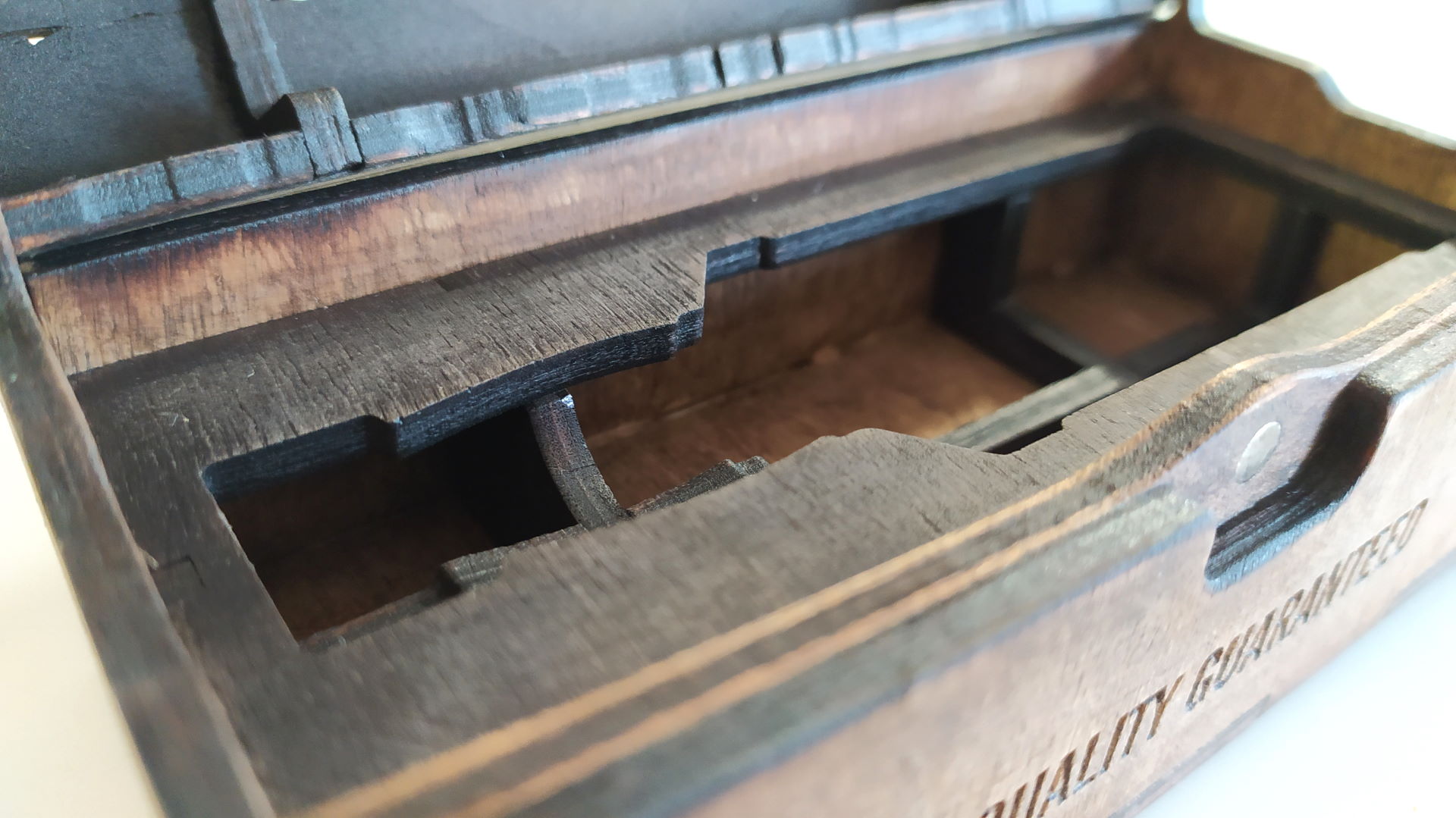

The bottle holder is made in the form of a cartridge, it can be easily installed and just as easy to remove and use the box for other purposes. The bottle holder is easy to modify, for example, for a lighter, flash drives, etc.

The lid has a magnetic lock. 2 magnets with a diameter of 5mm. I had to suffer to fit them into the design. The box, with the exception of the magnets, is completely made on a laser machine. Minimum material. Very easy to assemble.

length: 127mm / 5.00″ (internal)
width: 53mm / 2.08″ (internal)
height: 45mm / 1.77″ (internal)
max bottle size: 115x37mm / 4.52×1.45″
for a magnetic lock: 5mm / 0.19″ round magnets. 2 magnets. the thickness of the magnet must not exceed the thickness of the material

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8″ (3.175mm), 3.6mm, 3.7mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4″ (6.35mm)
digital product includes: CDR, SVG, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
