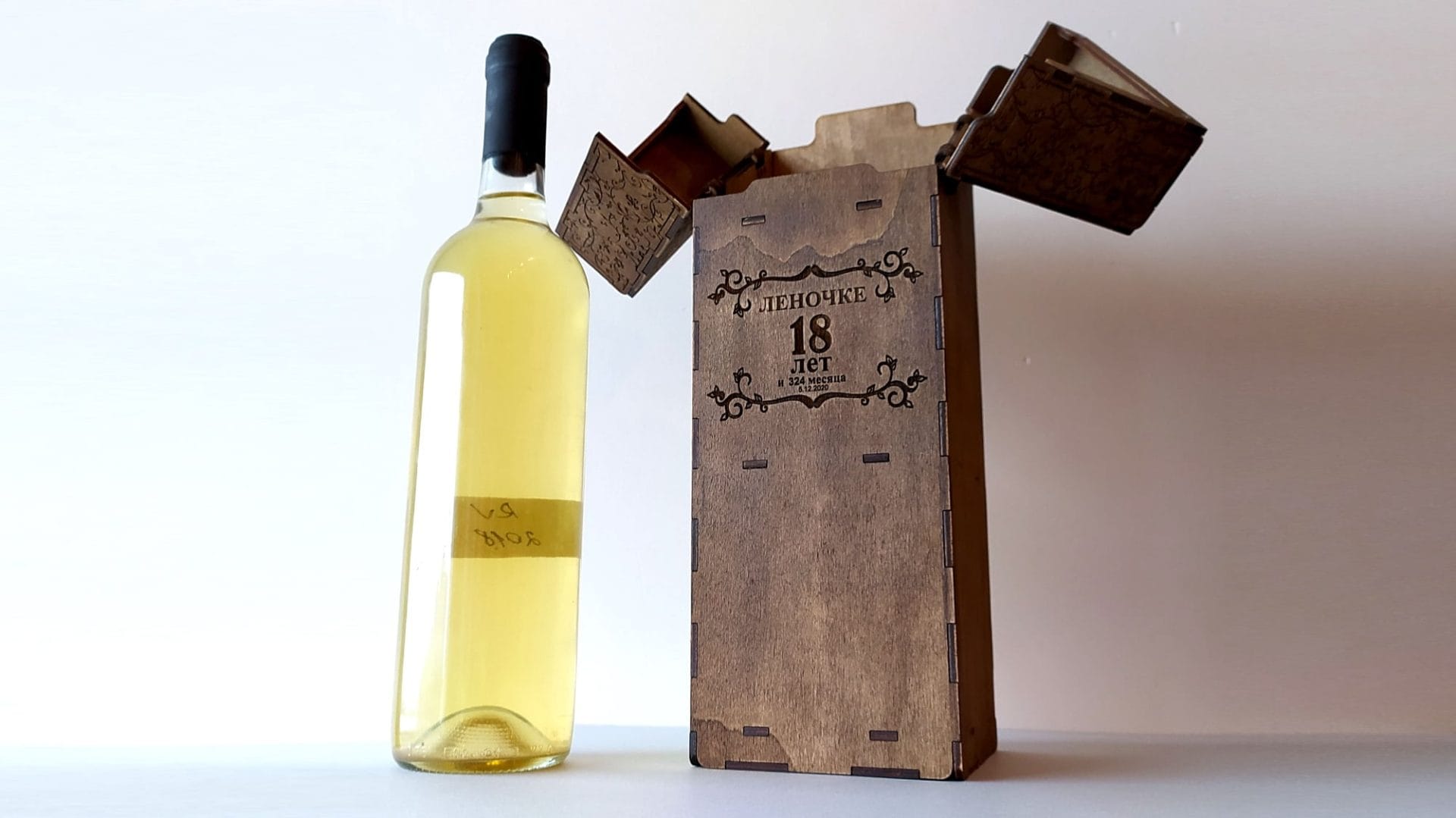

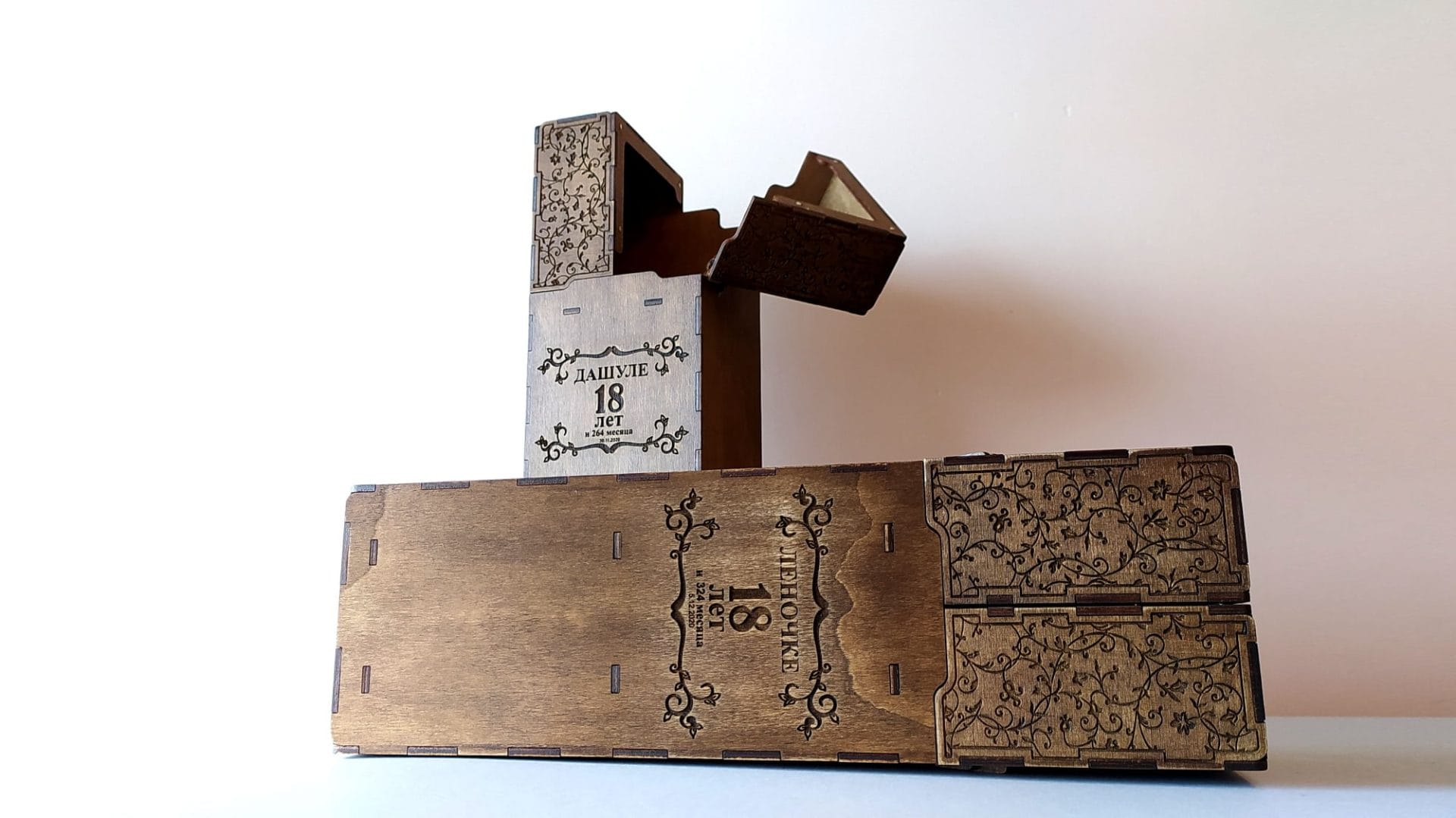

Wine box 00015

Wine box 00015. Digital files for manufacturing products on a CNC laser machine.

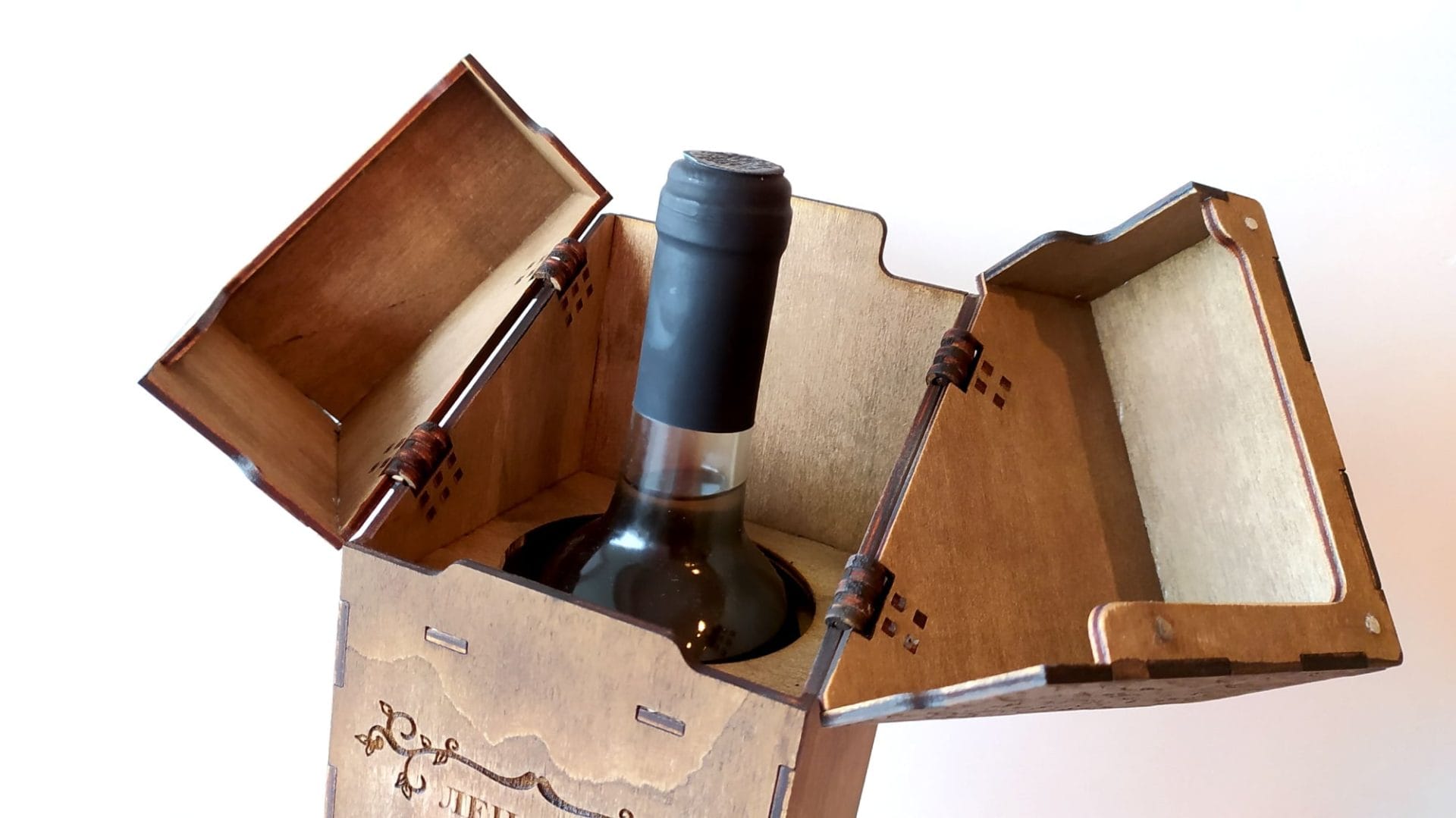

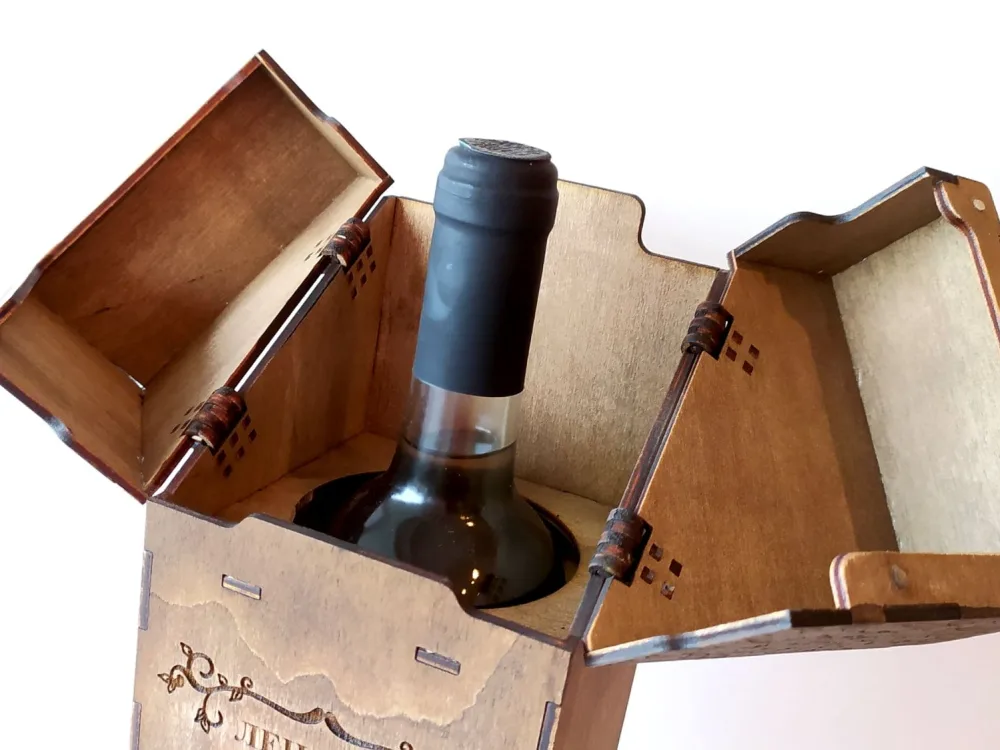

For bottles up to 330mm high and diameter up to 77mm. The bottle diameter can be changed in any vector editor. Due to the unusual cover, the box looks very impressive. Between the first lintel and the bottom parts, I advise you to put about 5mm thick foam rubber.

length: 100mm / 3.93″ (internal)
width: 100mm / 3.93″ (internal)
height: 325mm / 12.79″ (internal)
for a magnetic lock: 3×1 mm round magnets. 6 magnets.

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 4mm, 4.5mm, 5mm
digital product includes: CDR, SVG, DXF, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.

video instructions: https://youtu.be/JUBzRkOcVqY
